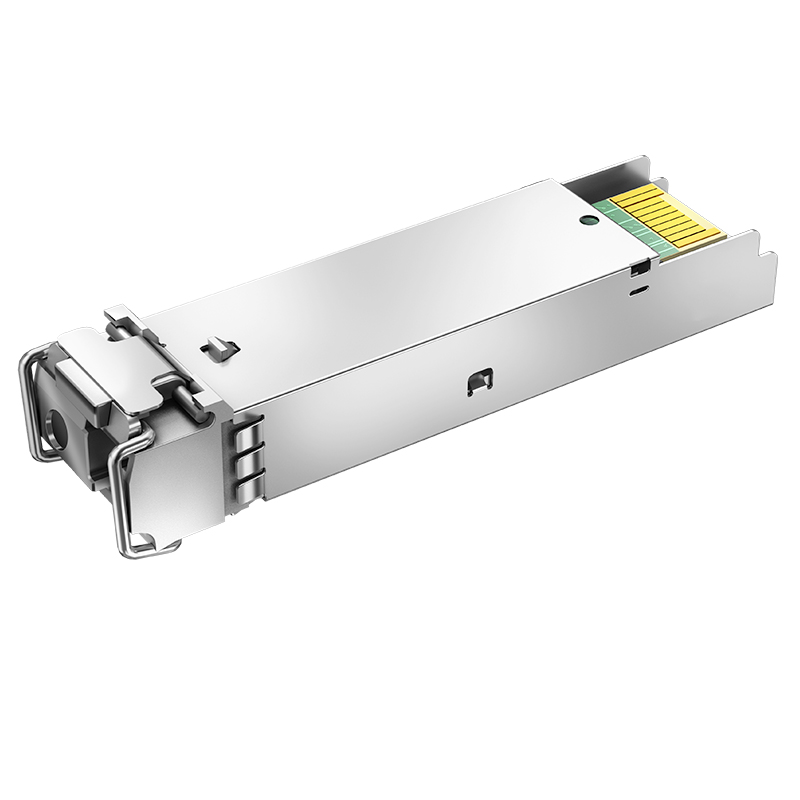

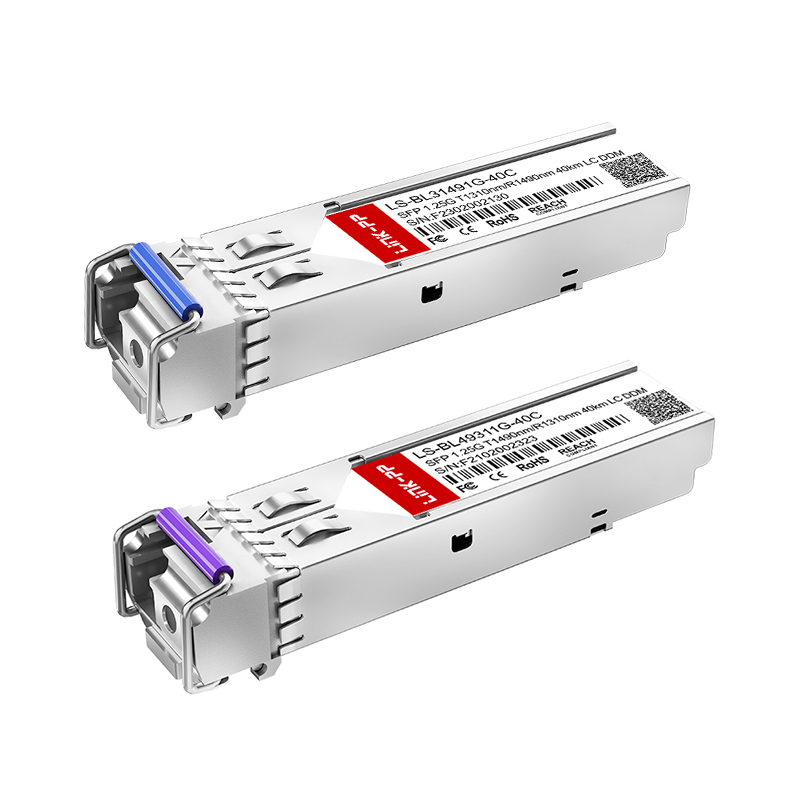

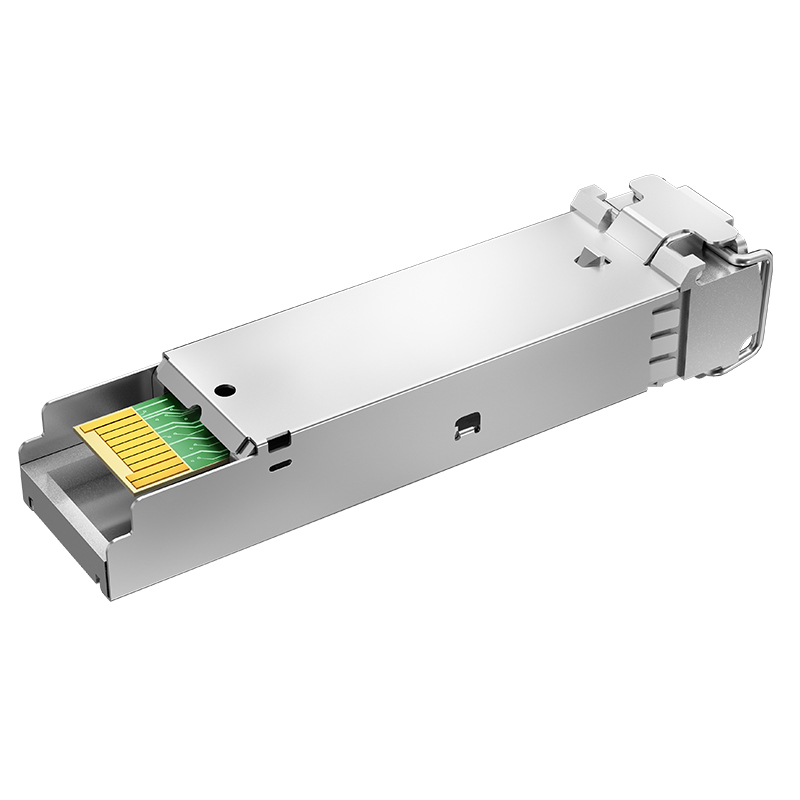

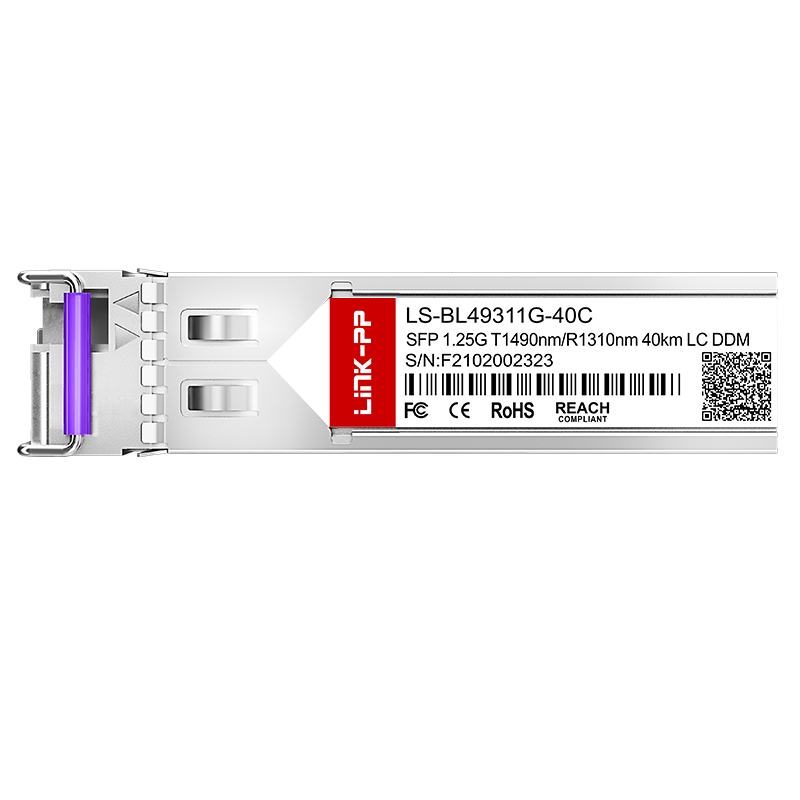

Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
1 / 5
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km

Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km

Send Inquiry

Product Description

Bidirectional Simplex LC 1310nm/1490nm SMF Optical Transceiver Single Mode 1G BiDi SFP Module 40km
Products Description
Item BiDi SFP
Part Status Active
Form Factor SFP
Max Data Rate 1000Mbps
Max Cable Distance 40KM
Wavelength 1310nm/1490nm
Connector Simplex LC
Media SMF
Optical Component DFB BiDi
TX Power -3~2dBm
Receiver Sensitivity <-23dBm
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Warranty 5 Years
Sample Available
Products Overview
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Series
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Manufacturing Showcase
Production Facility 1
Production Facility 2
Related Products SFP Cage
SFP Cage Item 1
SFP Cage Item 2
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, but shipping costs are covered by the buyer.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-service can you offer?
We offer a one-year warranty period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your specific customization requirements.
What is your advantage?
We have 19 years of production experience and long-term partnerships with leading global enterprises for many years.
