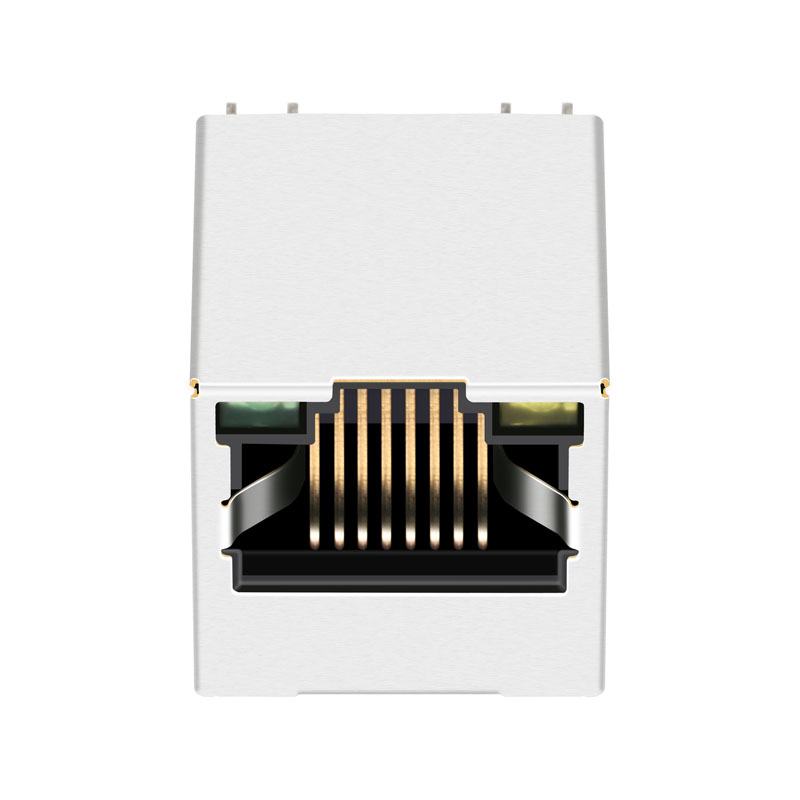

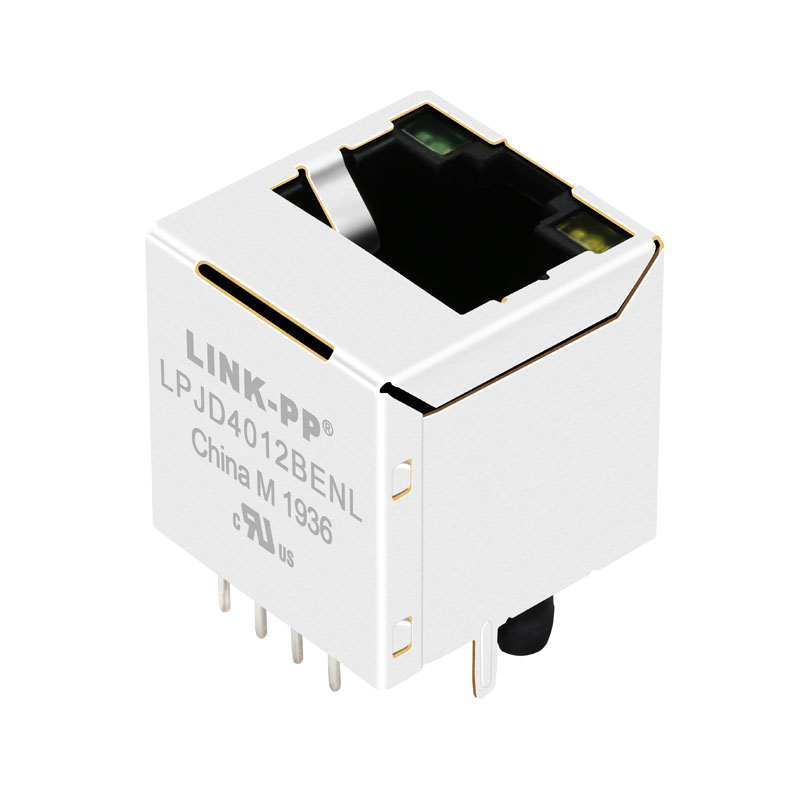

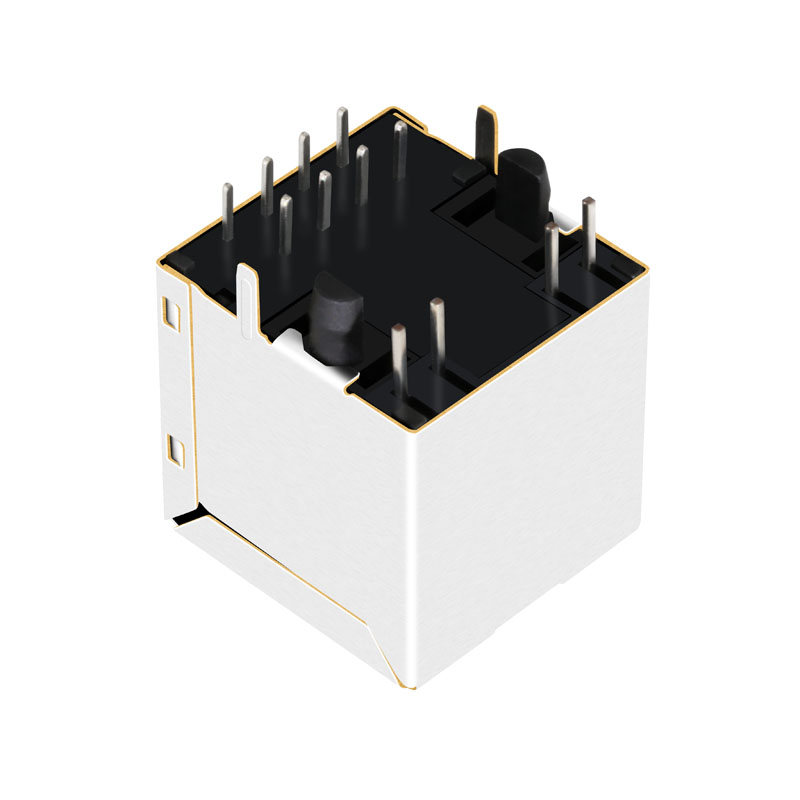

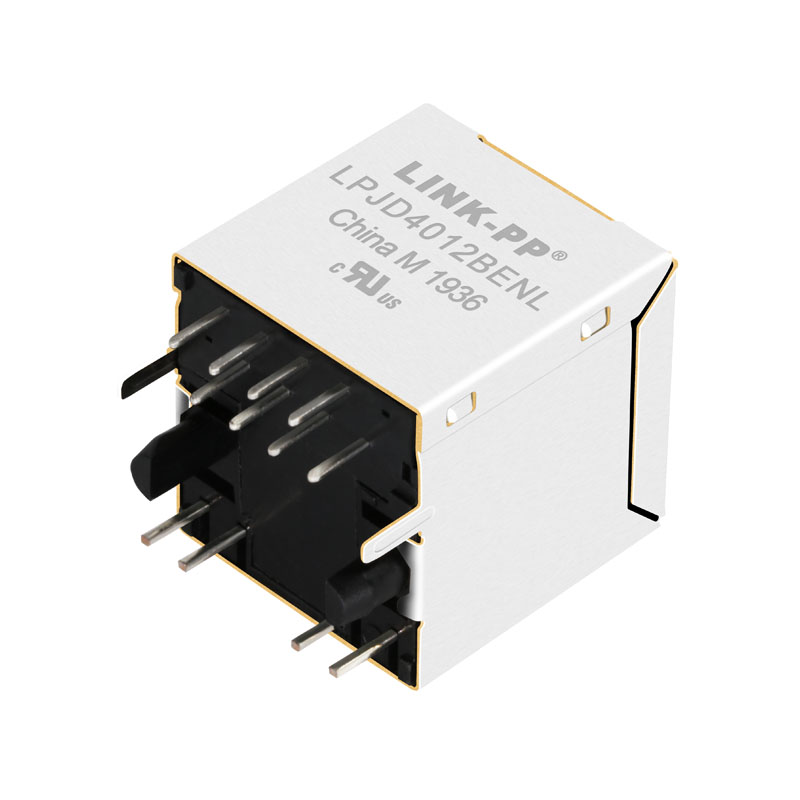

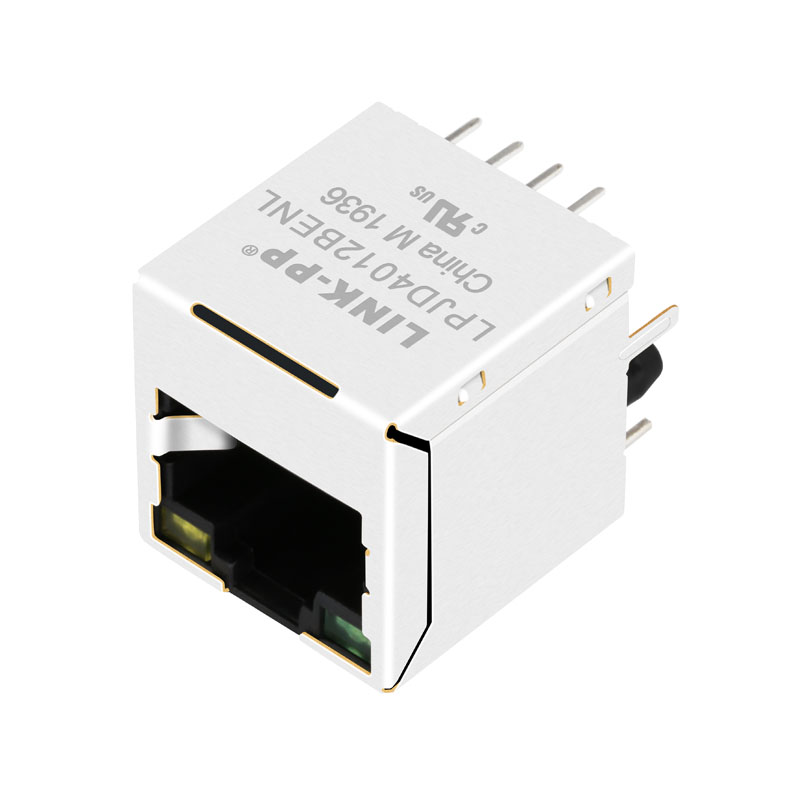

SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds

Product Description

Ethernet Female RJ45 Connector Overview
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD4012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Ethernet RJ45 Connector Details
✦ Discover More Premium Connector Products Below ✦
Product Categories Overview
Connector Specifications 1
Connector Specifications 2
Connector Specifications 3
Connector Manufacturing Process 1
Connector Manufacturing Process 2
Connector Manufacturing Process 3
Quality Assurance Standards
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. We provide an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components, we serve OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider in the global Ethernet RJ45 connector and LAN transformer market.
Factory Internal View
Advanced Testing Equipment
Warehouse Storage
FAQ

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but you should pay the shipping fee.

What is your delivery time?

Ready-to-ship models are available immediately for stock items, and it takes 15–30 days for mass production.

What after-service can you offer?

We offer a one-year guarantee period and provide 24-hour technical support online.

Can you accept OEM/ODM orders?

Yes, please send your requirements to us so that we can have a detailed discussion.

What is your advantage?

We have 19 years of production experience and have been a trusted partner for top global technology companies for many years.
