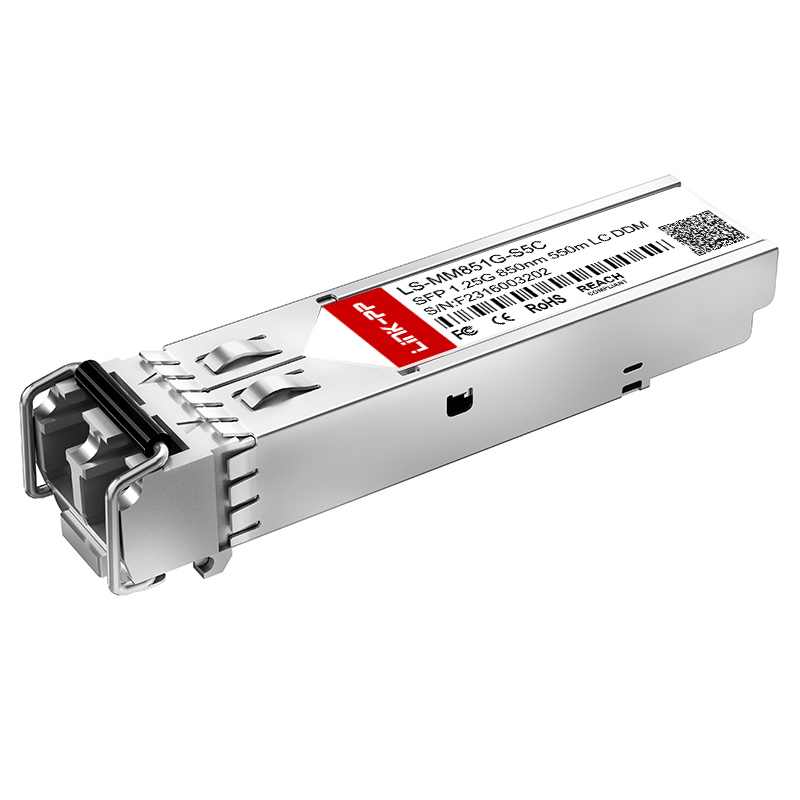

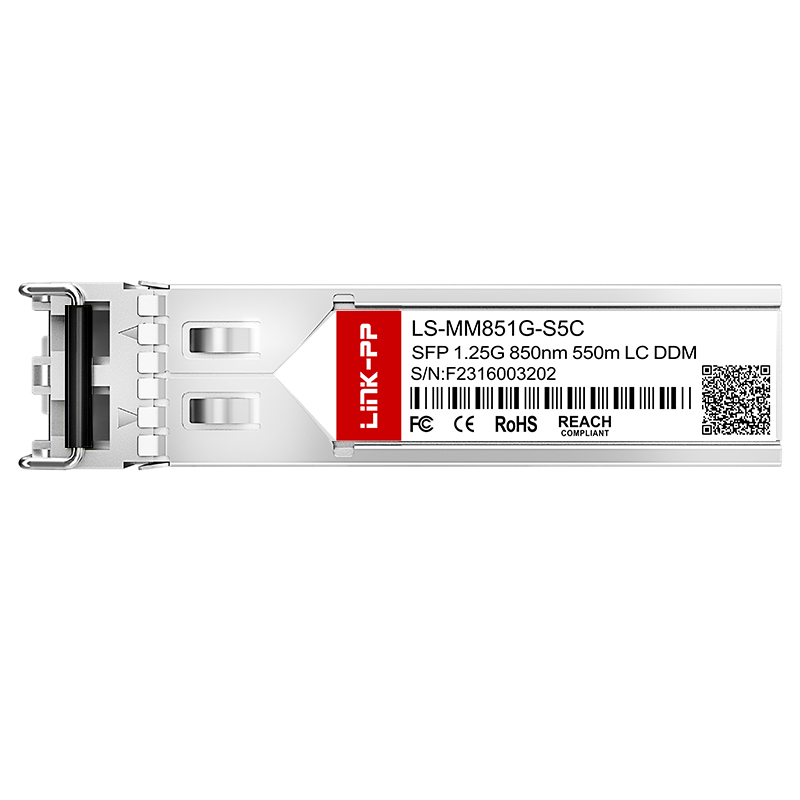

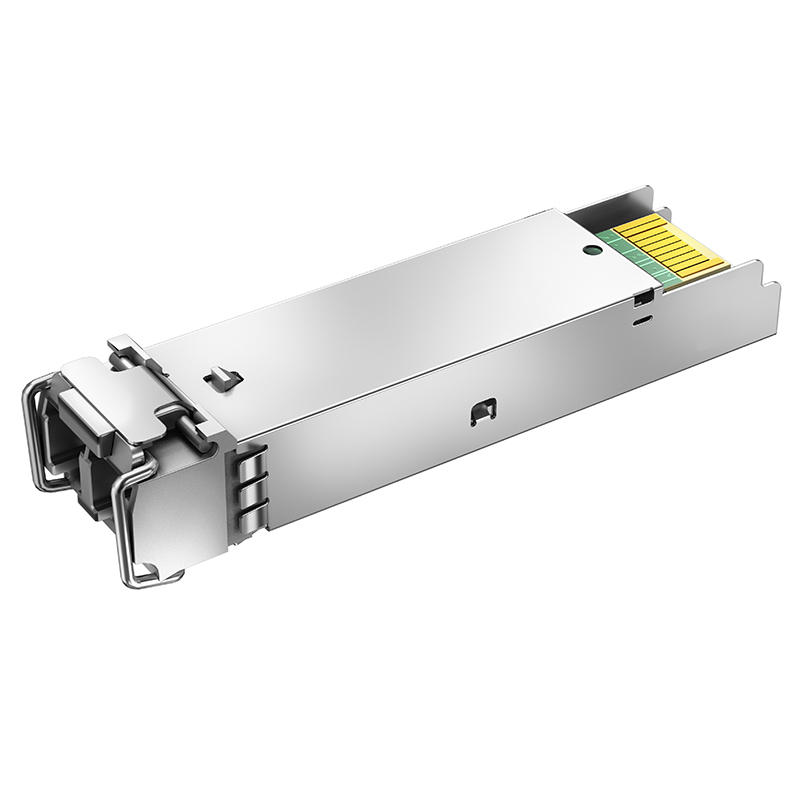

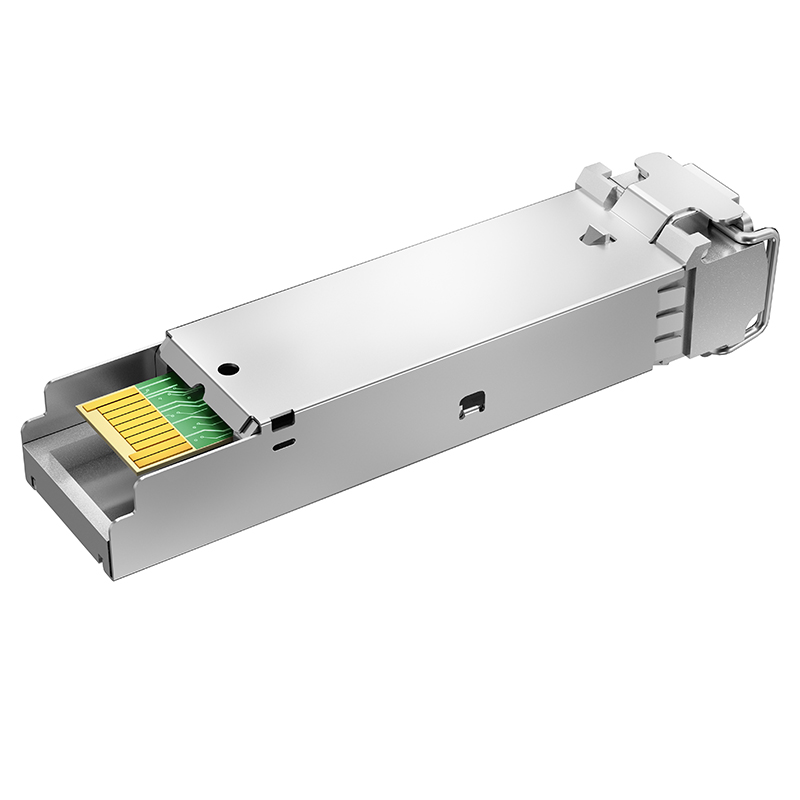

J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
1 / 5
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m

J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m

Send Inquiry

Product Description

J4858D HPE Aruba Compatible 1000BASE SX Duplex LC Optical Transceiver Multimode 850nm 1.25G SFP Module 550m
Products Description
Item 1000BASE SFP
Compatible J4858D HPE Aruba
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 850nm
Max Cable Distance 550m
Media MMF

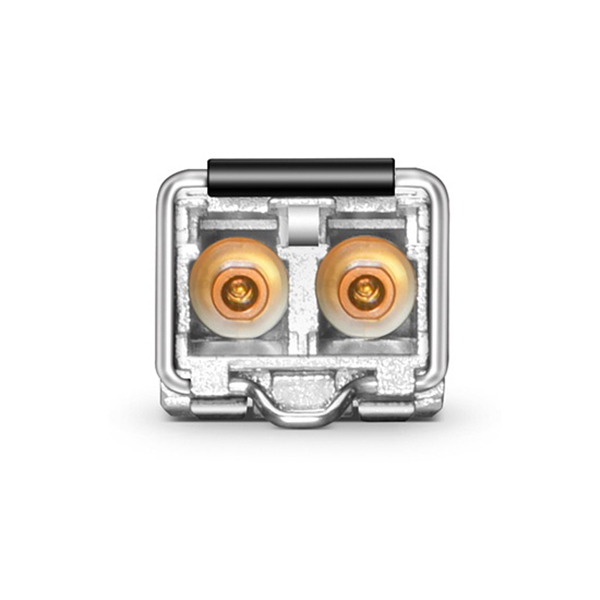

Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -9.5~-3dBm
Receiver Sensitivity <-17dBm
Receiver Overload -3dBm
Power Consumption ≤0.8W
Extinction Ratio >9dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
