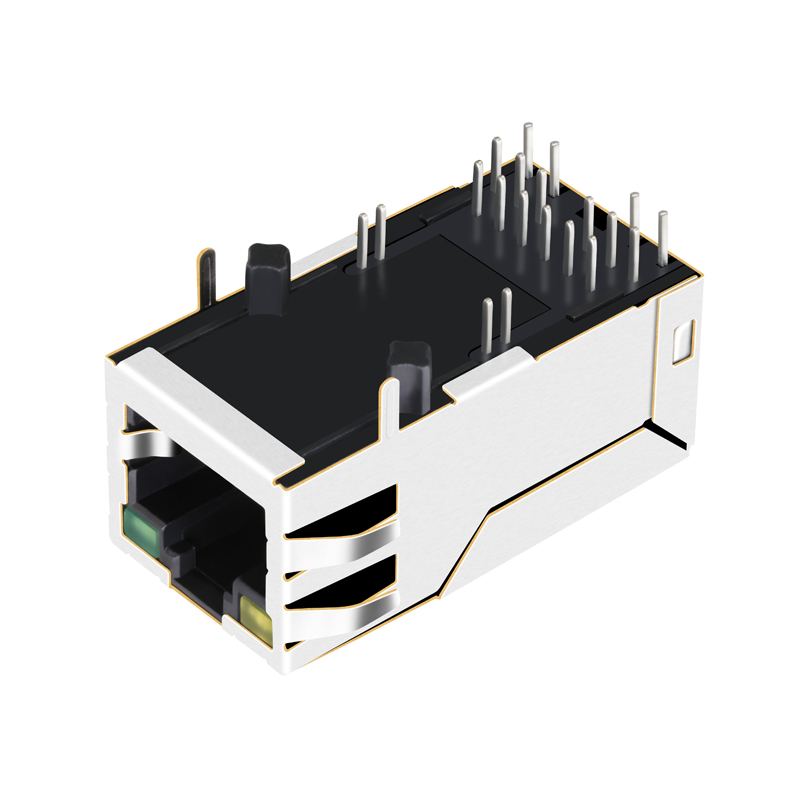

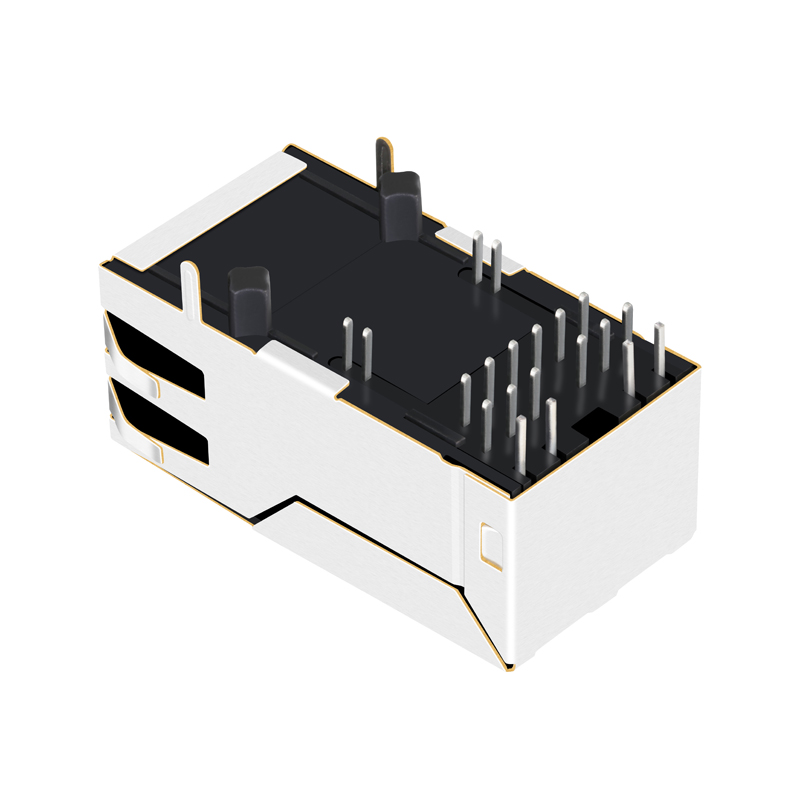

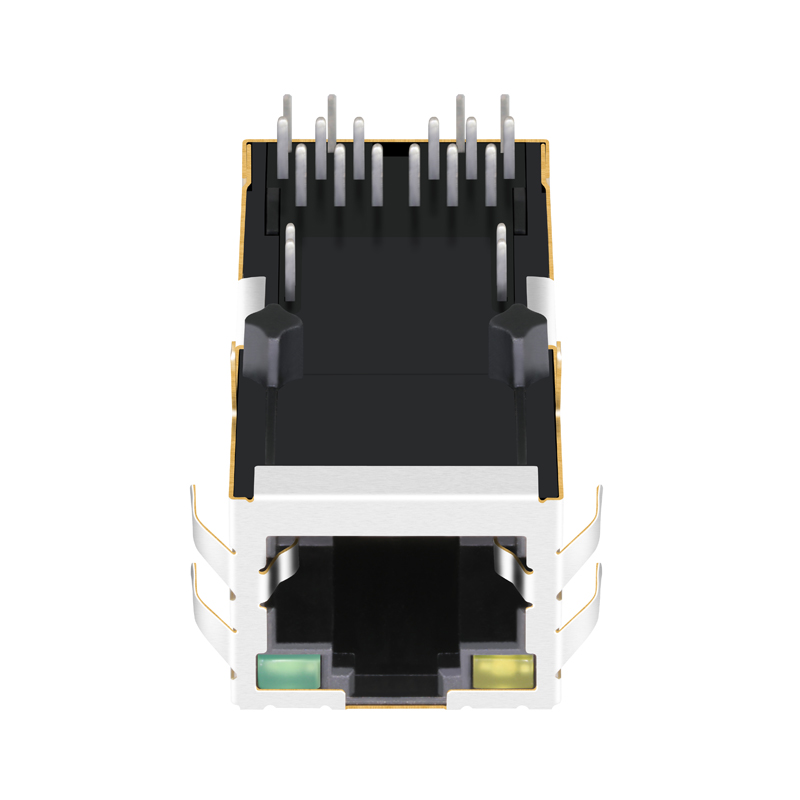

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
Products Description
| Item | RJ45 Female Connector |
| Bothhand Part Number | HR851140A |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
☞ Click Below Products Link To Get More ☜
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be paid by the customer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your custom requirements.
What is your advantage?
We possess 19 years of professional production experience and have been a trusted partner for global industry leaders for many years.
