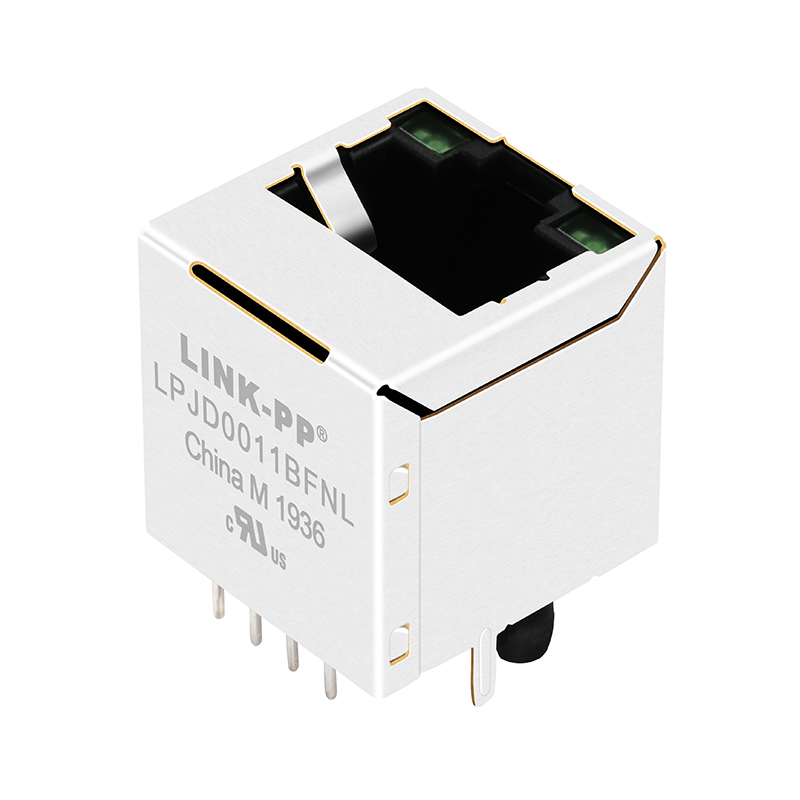

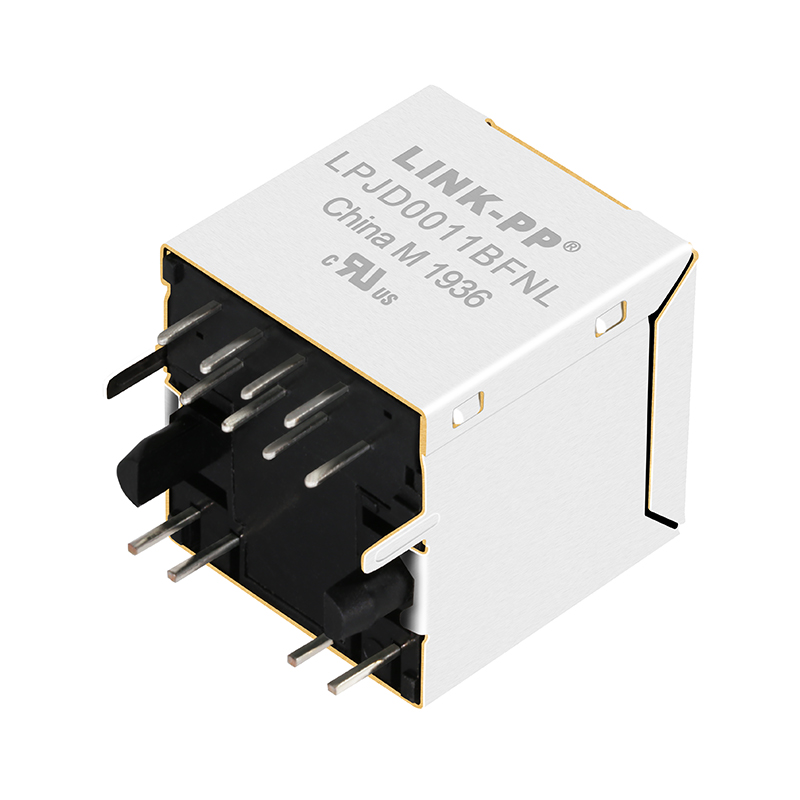

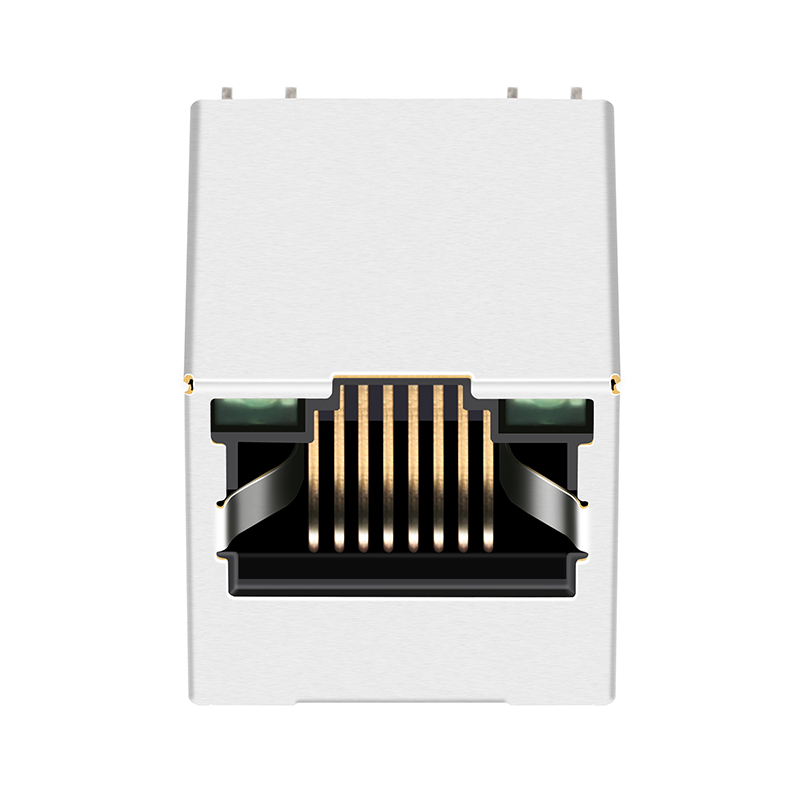

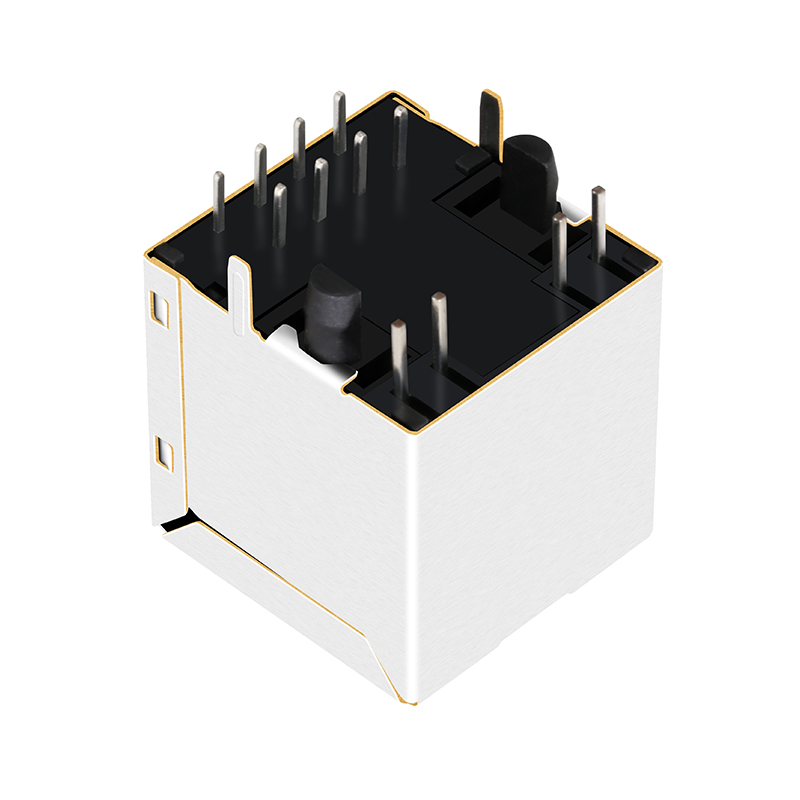

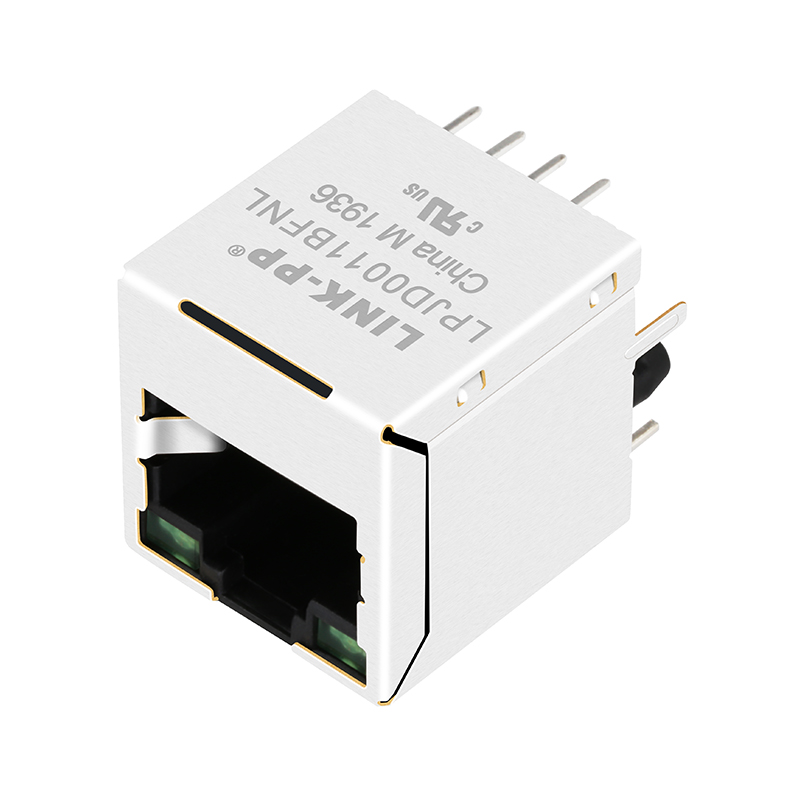

| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD0011BFNL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | With |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |

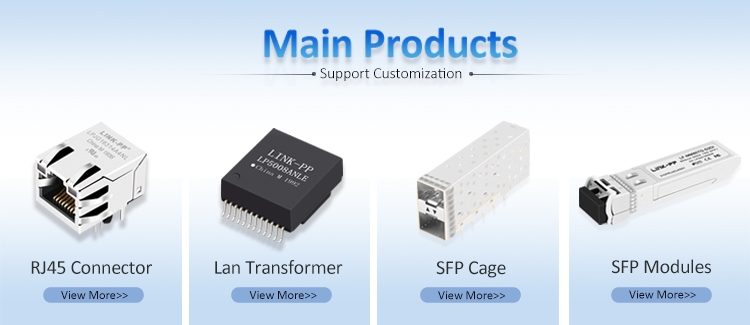

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the client.
We have items ready to ship for stock products, and a lead time of 15-30 days for mass production.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, we accept both OEM and ODM custom orders. Please send your requirements to us for a detailed discussion.

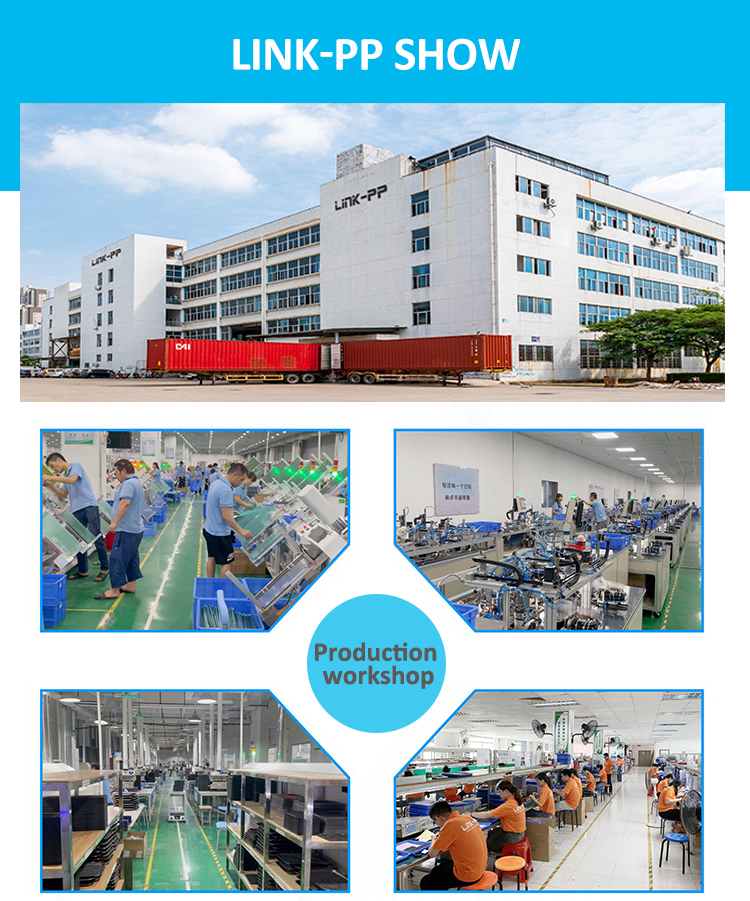

We possess over 19 years of professional production experience and maintain long-term partnerships with leading global technology firms.
