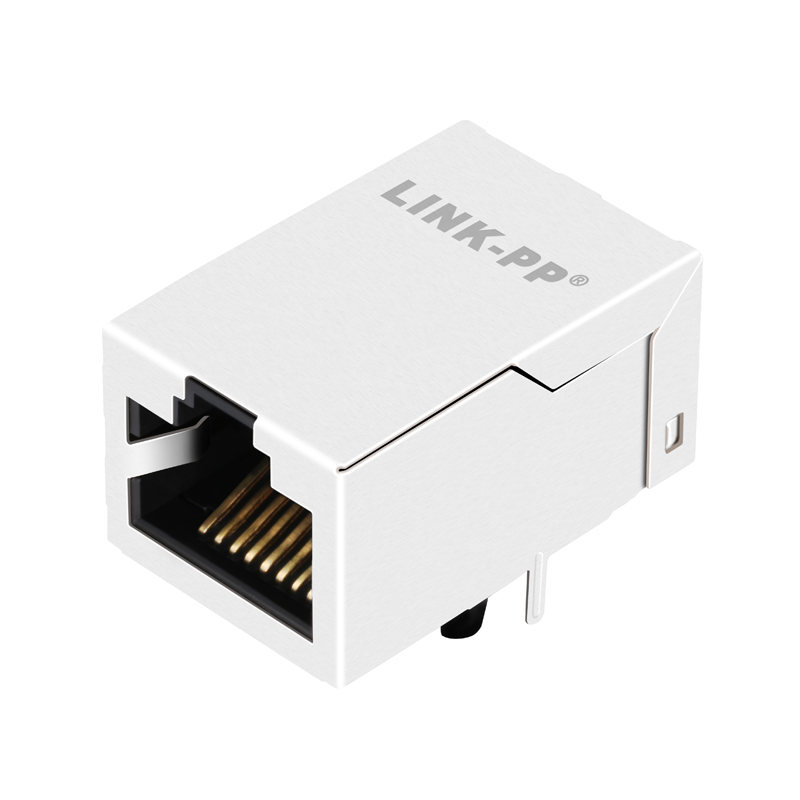

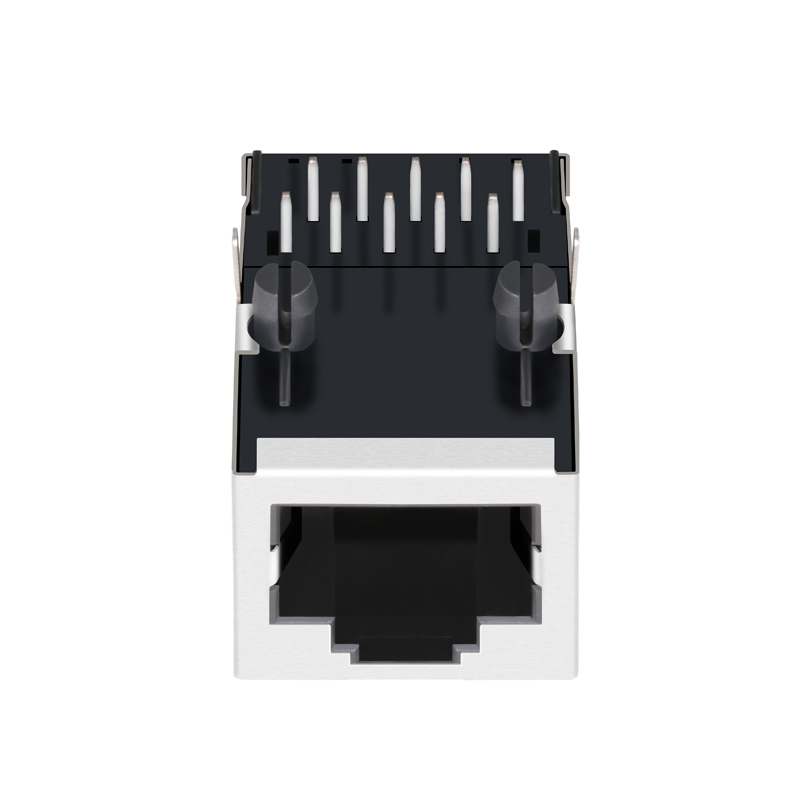

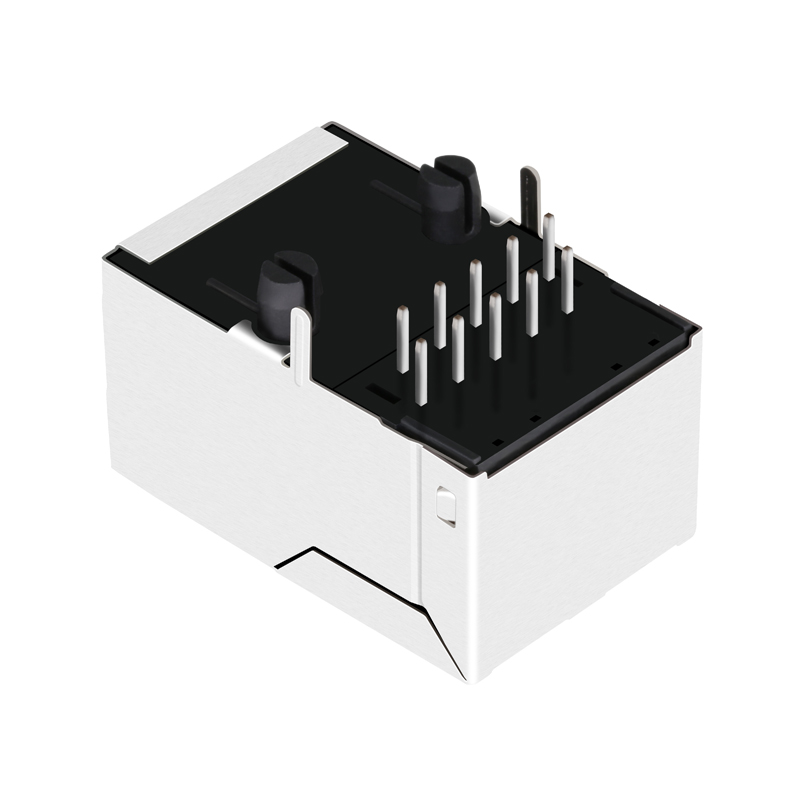

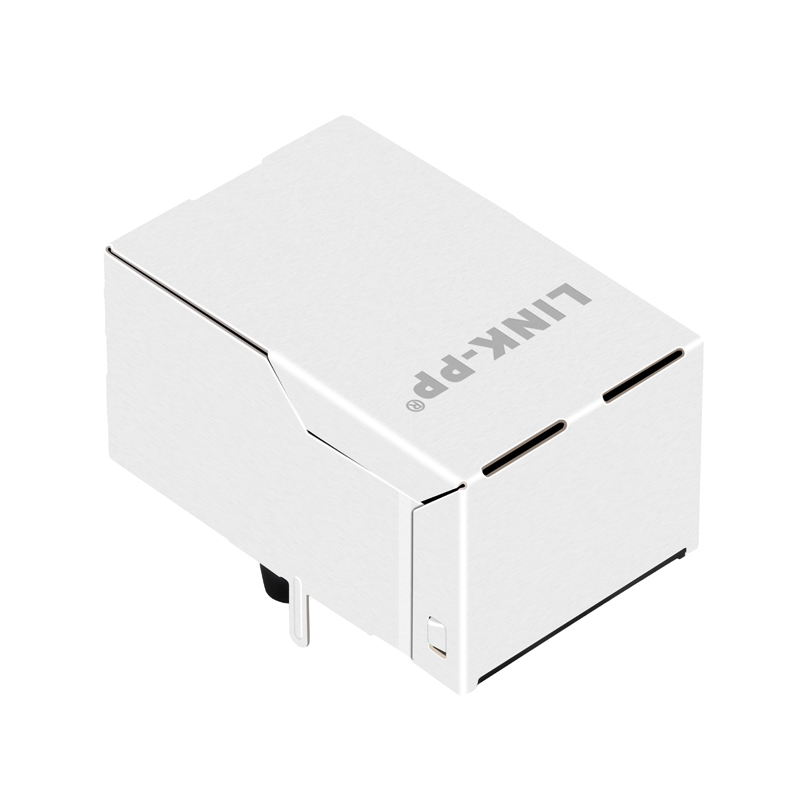

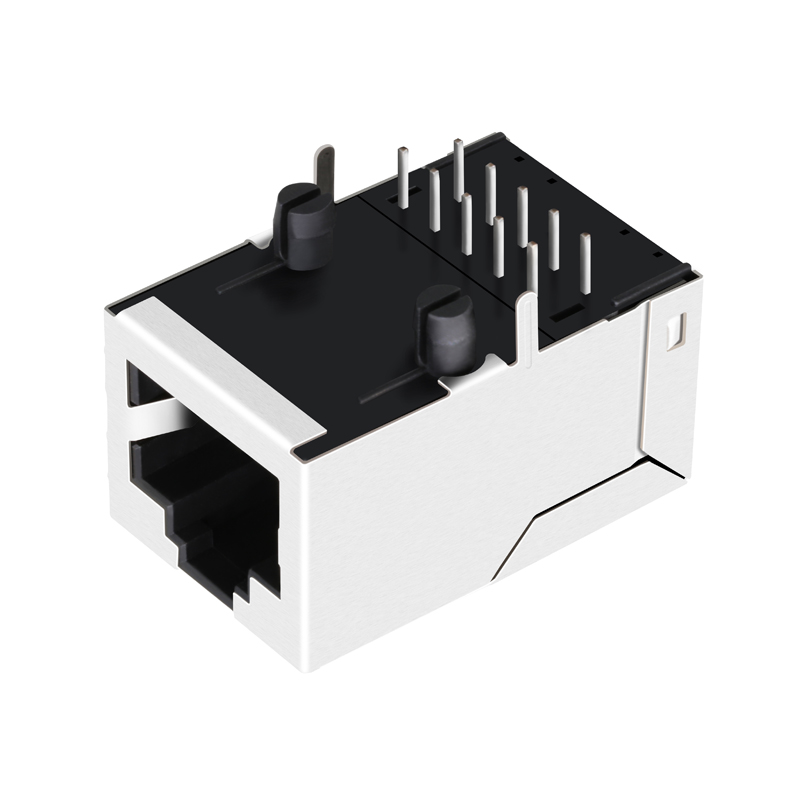

1-406541-5 Shielded Without Magnetics 8P8C RJ45 Modular Jack

1 / 5

1-406541-5 Shielded Without Magnetics 8P8C RJ45 Modular Jack

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Compatible With	1-406541-5
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non-PoE)
Number of Ports	1x1 Port
Speed	Without Magnetics
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without/With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0°C TO 70°C / -40°C TO 85°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

☞ Click Below Products To Get More ☞

Company Profile

Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.

FAQ

Are you factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

What is your advantage?

19 years of production experience and we are partners with global leading companies for many years.
