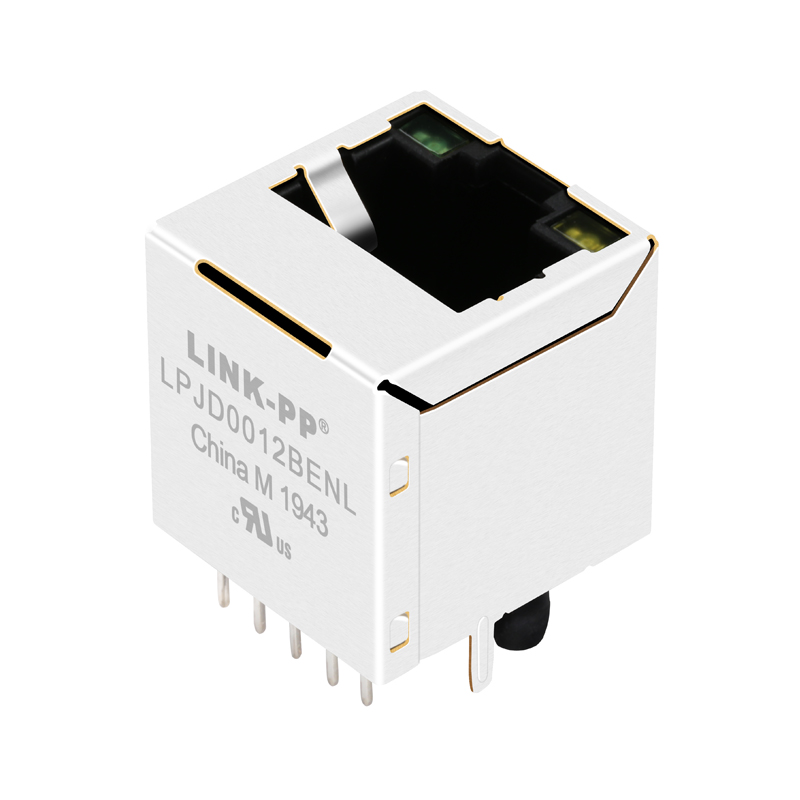

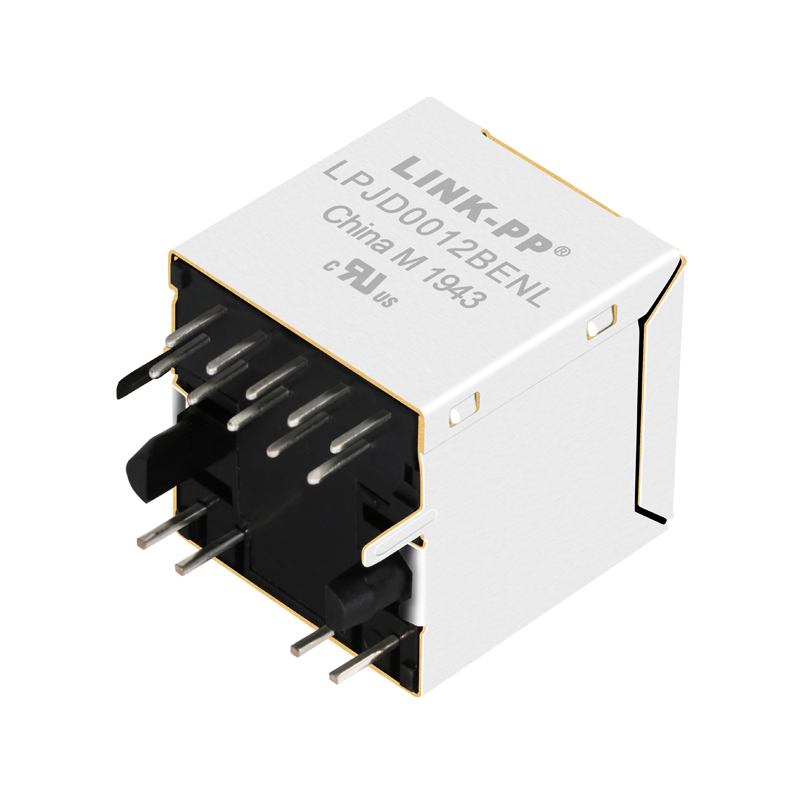

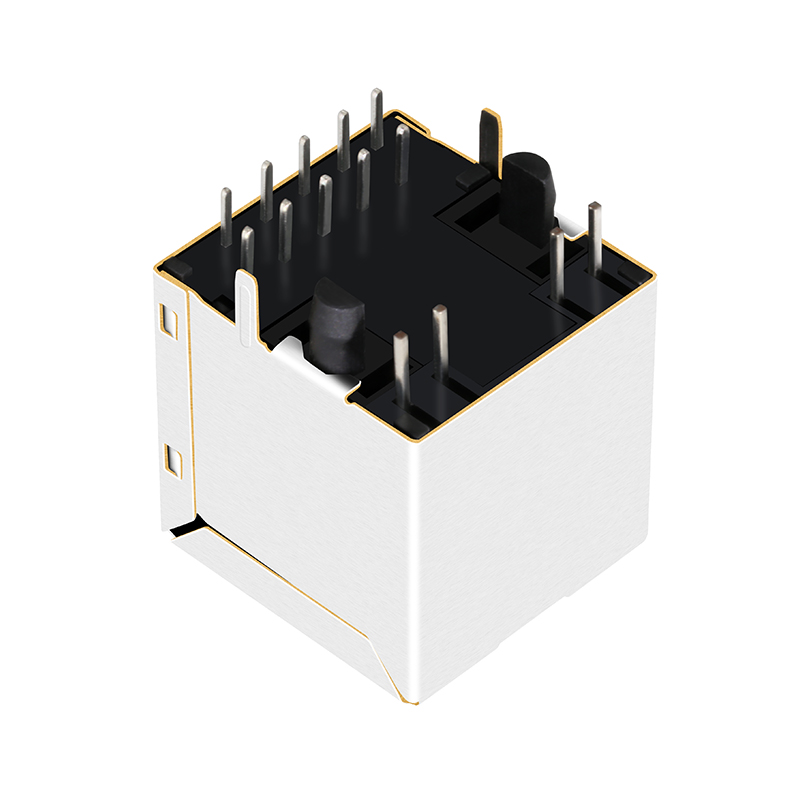

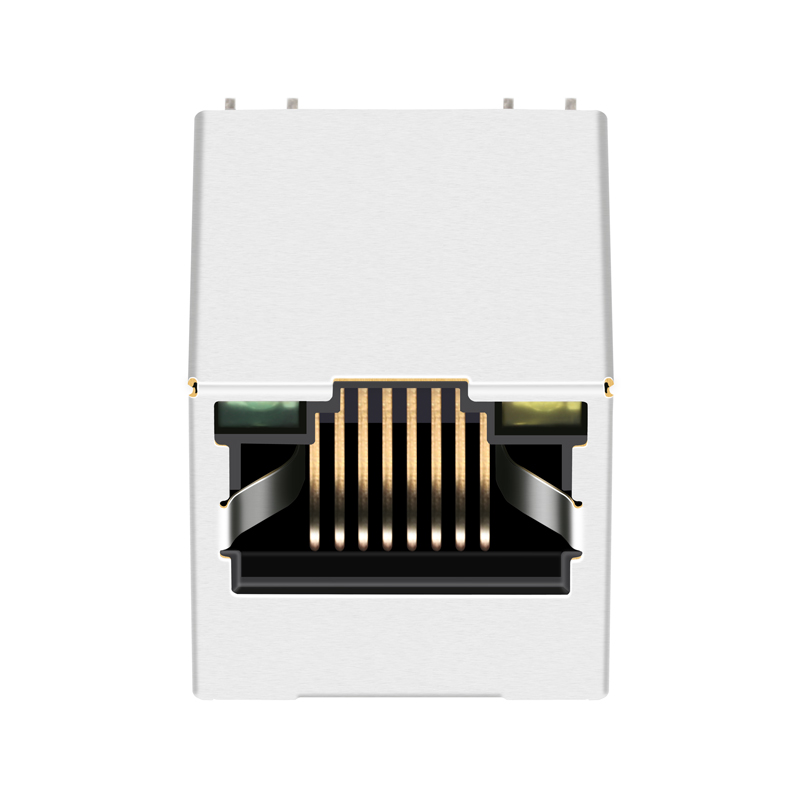

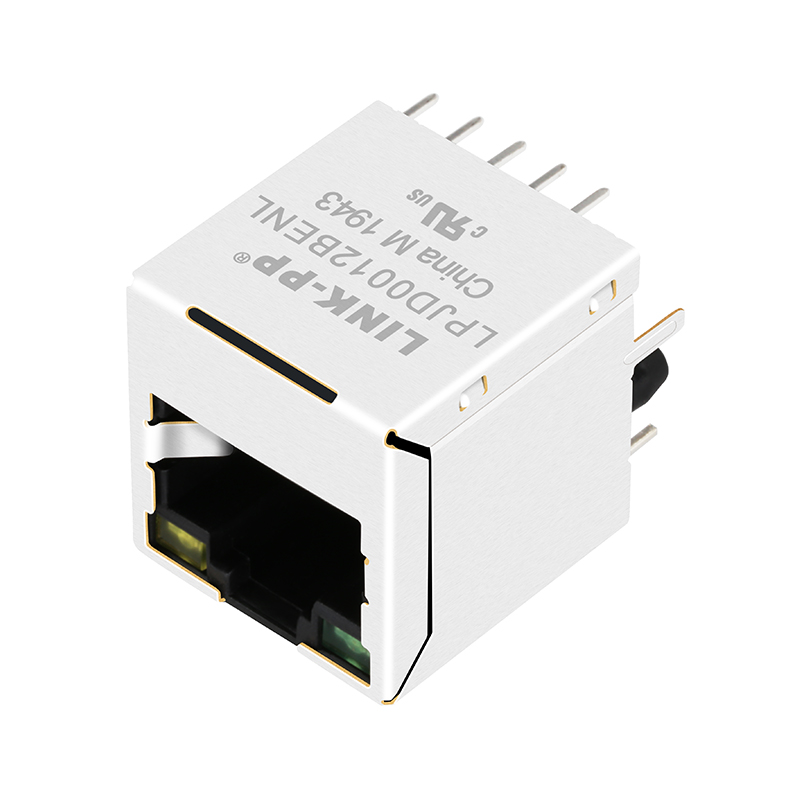

SI-46001-F 10 / 100Base-T 8P8C Vertical RJ45 Connector
Products Description
| Item |
RJ45 Female Connector |
| Bothhand Part Number |
SI-46001-F |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100 Base-T |
| Latch |
Down/Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutoMDIX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T, C |
🛈
Explore More Product Series Below
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee will need to be covered.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send us an inquiry so we can discuss your custom requirements in detail.
What is your main advantage?
We have over 19 years of production experience and have been a trusted partner for industry leaders over many years.
