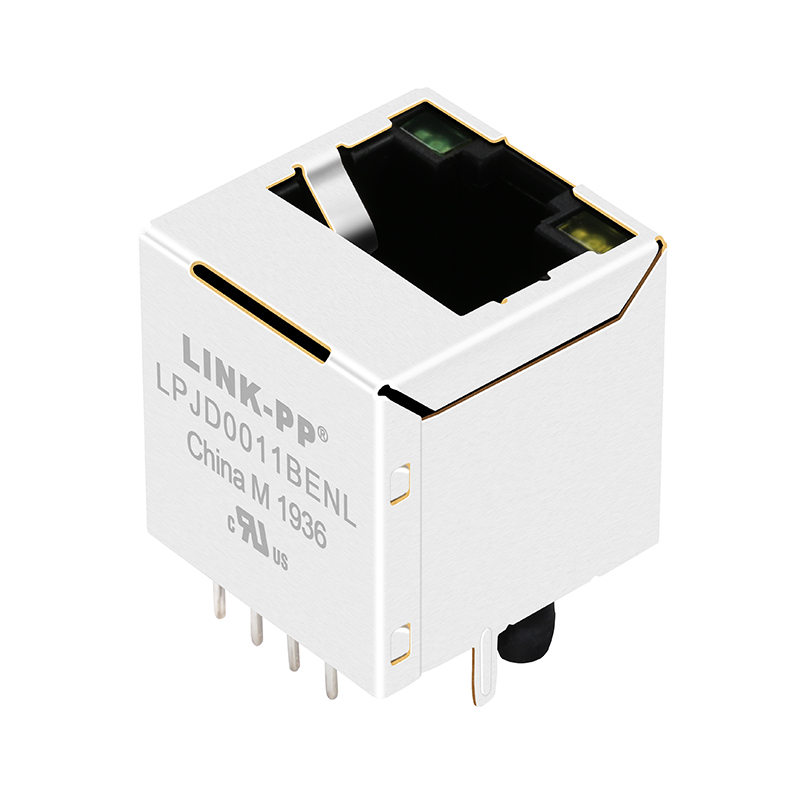

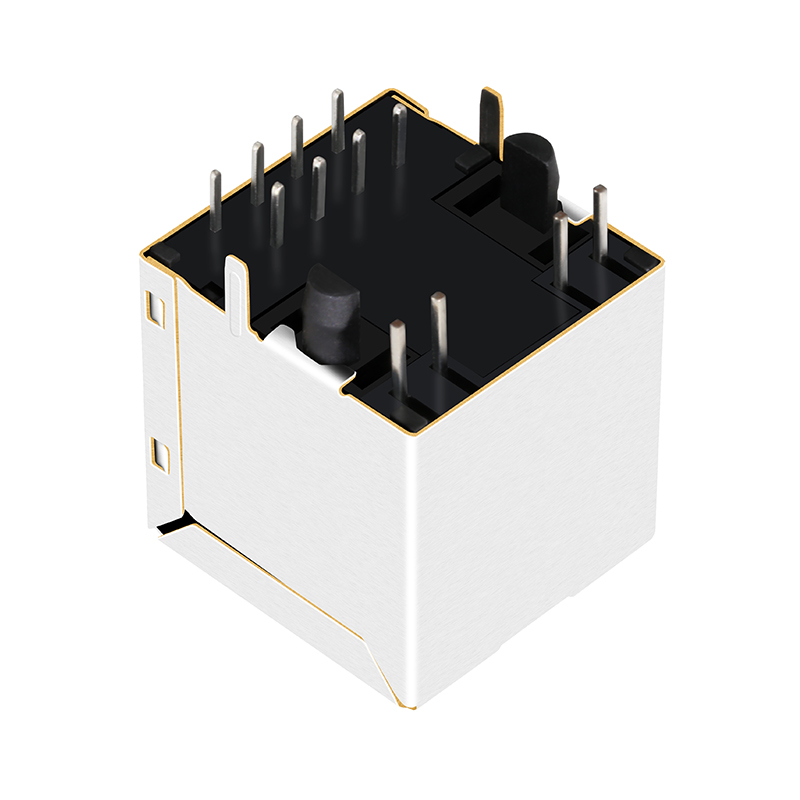

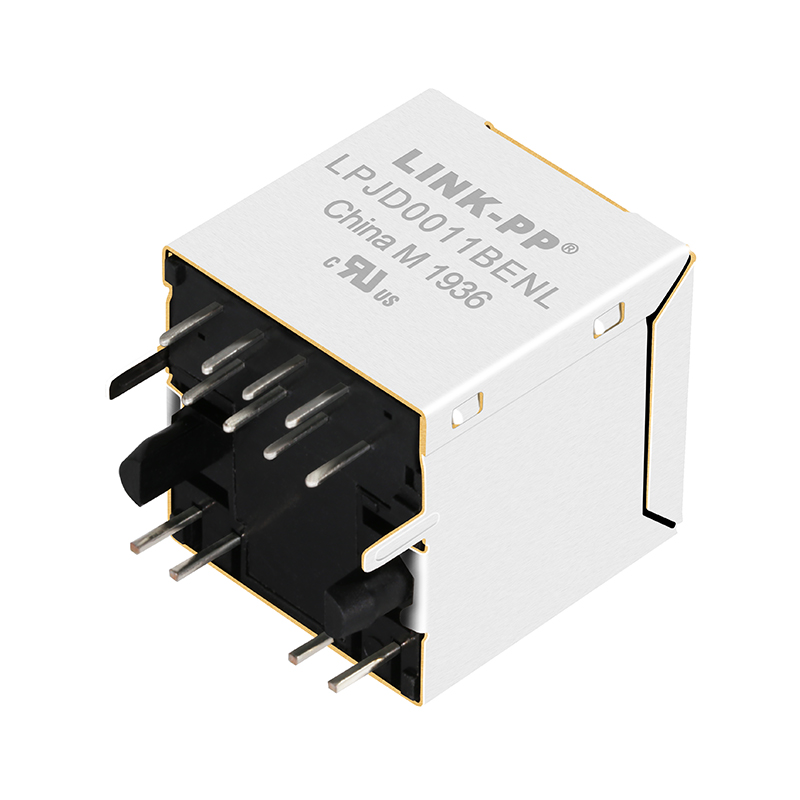

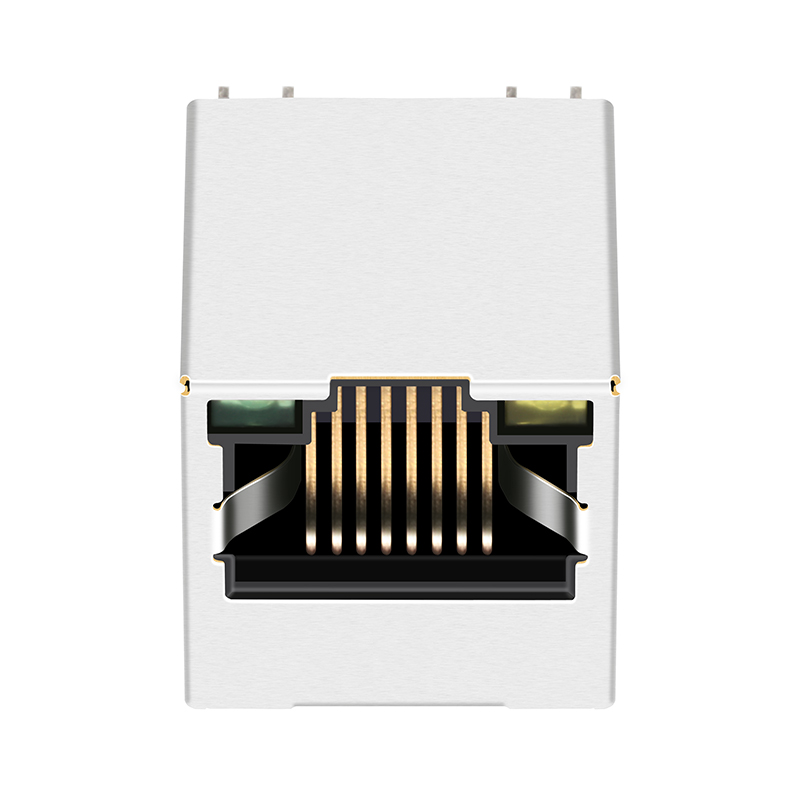

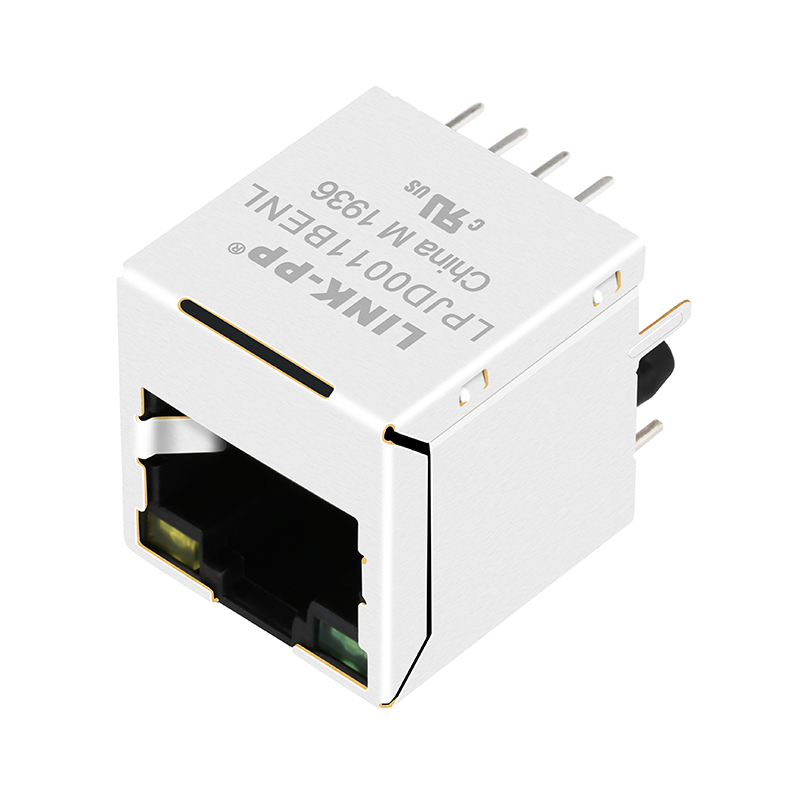

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds

Product Description

Ethernet Connectors Category
RV1-12108K1A 10/100 Base-T Vertical Top Entry Ethernet Magnetic RJ45 Connector with LEDs
Product Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Technical Drawing Specification
Explore Our Comprehensive Range of Ethernet Solutions Below
Product Categories Overview
Product Performance Chart
Quality Standard Control
Testing Equipment
Certification Certificate 1
Certification Certificate 2
Certification Certificate 3
Packaging Standard Details
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supporting more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading provider of Ethernet RJ45 connectors and LAN transformers.
Factory Overview Production Area
Automated Manufacturing Assembly
Warehouse and Logistics Center
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-sales service do you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please contact us directly so we can discuss your specific requirements.
What is your manufacturing advantage?
With over 19 years of dedicated production experience, we maintain long-term partnerships with leading global technology and electronics companies.
