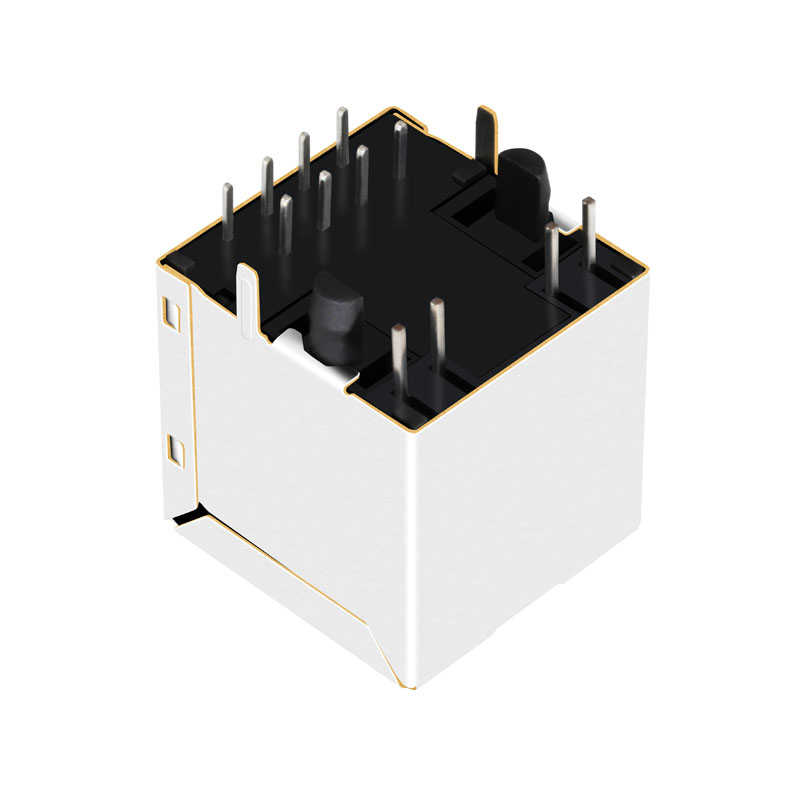

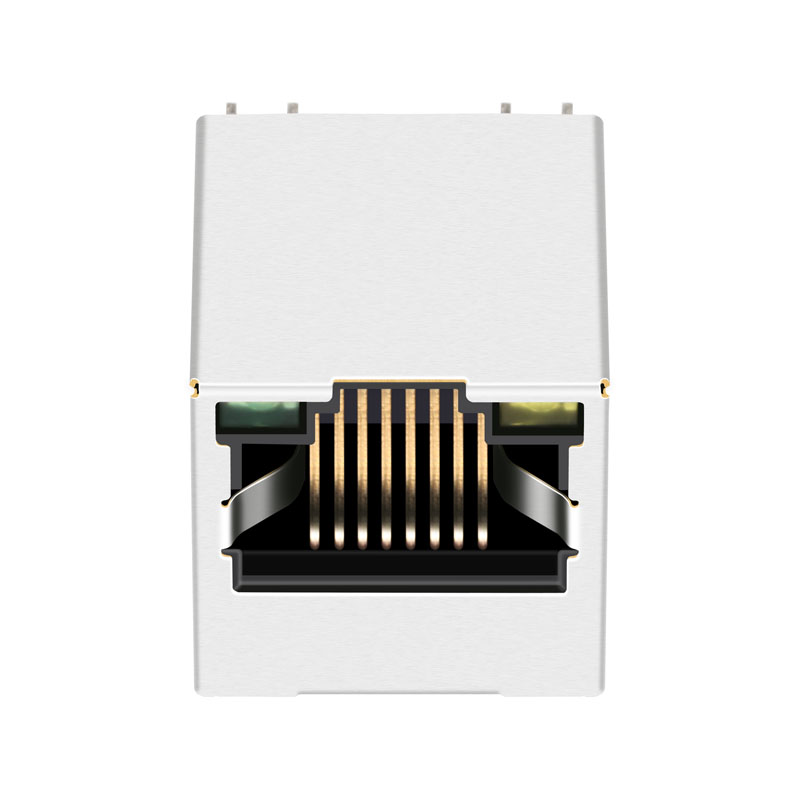

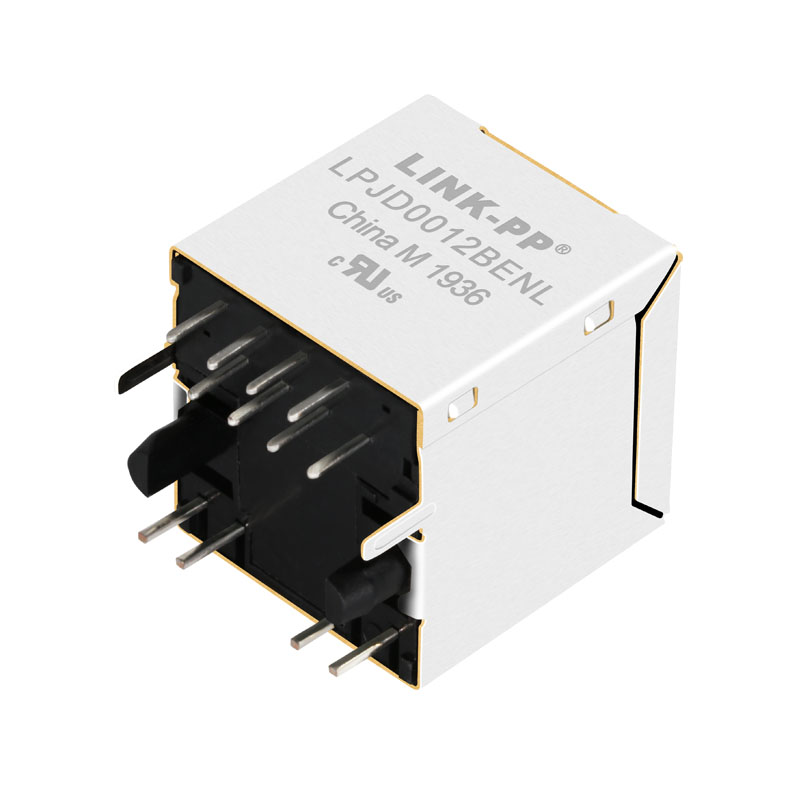

JD2-0001NL JD2-0010NL 10/100 Base-t Vertical Top Entry Straight Magnetic Ethernet RJ45 Connector With Leds
Products Description
| Item |
RJ45 Female Connector |
| Part Status |
Active |
| Part Number |
LPJD0012BENL |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100 Base-T |
| Cores per Port |
4 |
| Orientation |
180° Angle (Right) |
| PCB Mount Angle |
Top Entry |
| Shield EMI Tabs |
Without |
| LED Option |
With |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutomDX |
Yes |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
🔍
Product Variations and Specifications Available
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading global provider of Ethernet RJ45 connectors and LAN transformers.
Frequently Asked Questions
❓ Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
❓ Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
❓ What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
❓ What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
❓ Can you accept OEM/ODM orders?
Yes, we accept custom orders. Please send your requirements to us so we can proceed with a detailed discussion.
❓ What is your advantage?
We possess over 19 years of professional manufacturing experience and have partnered with major global industry leaders for many years.
