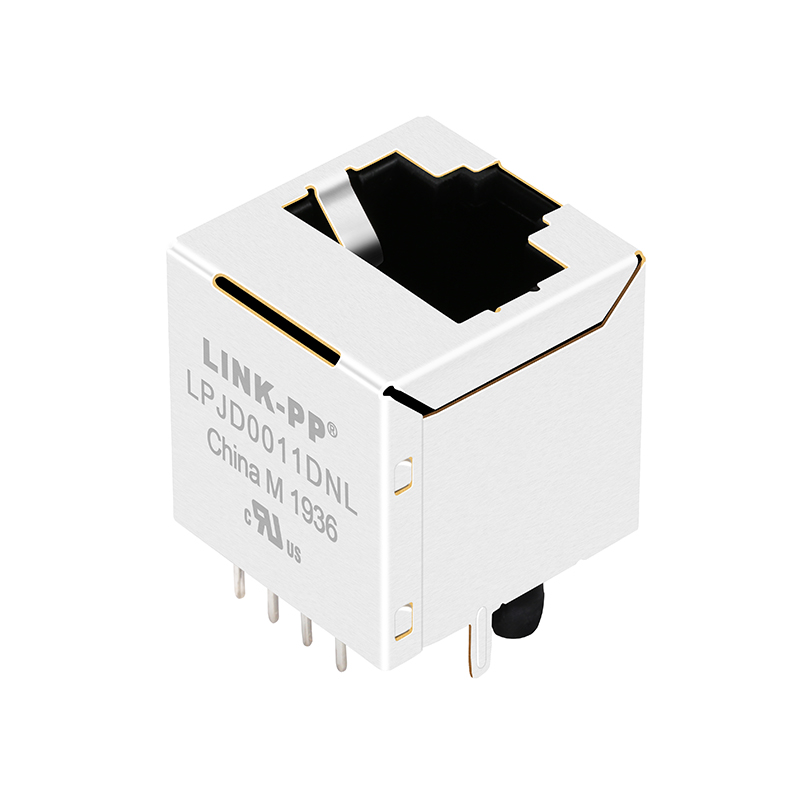

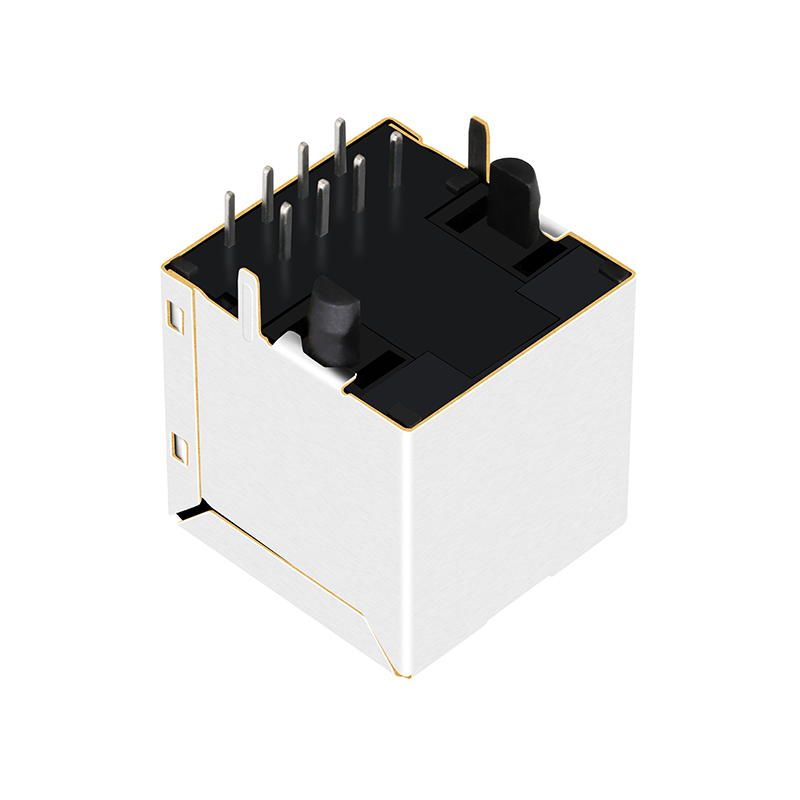

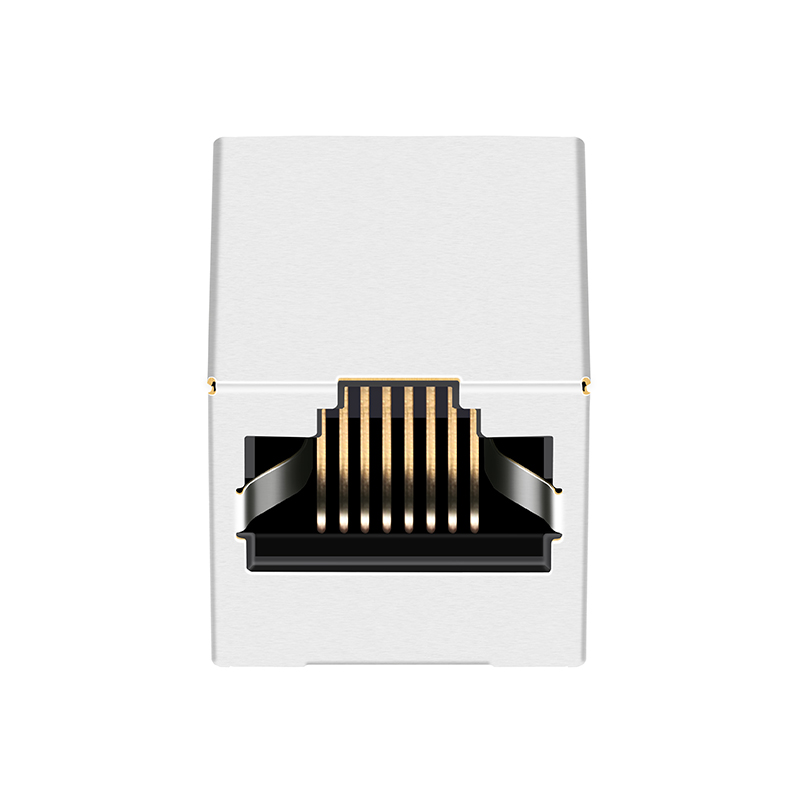

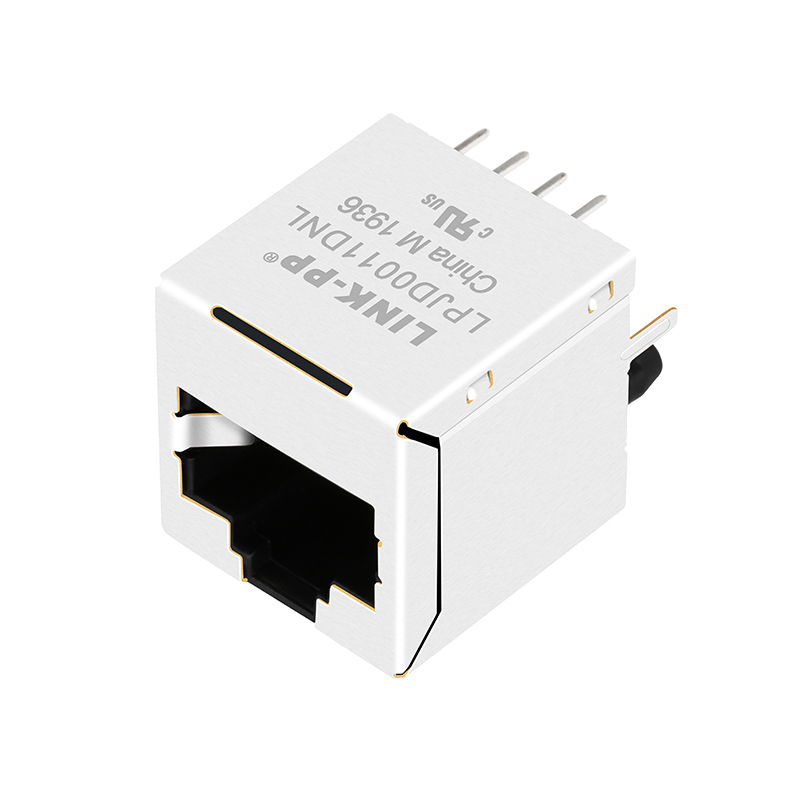

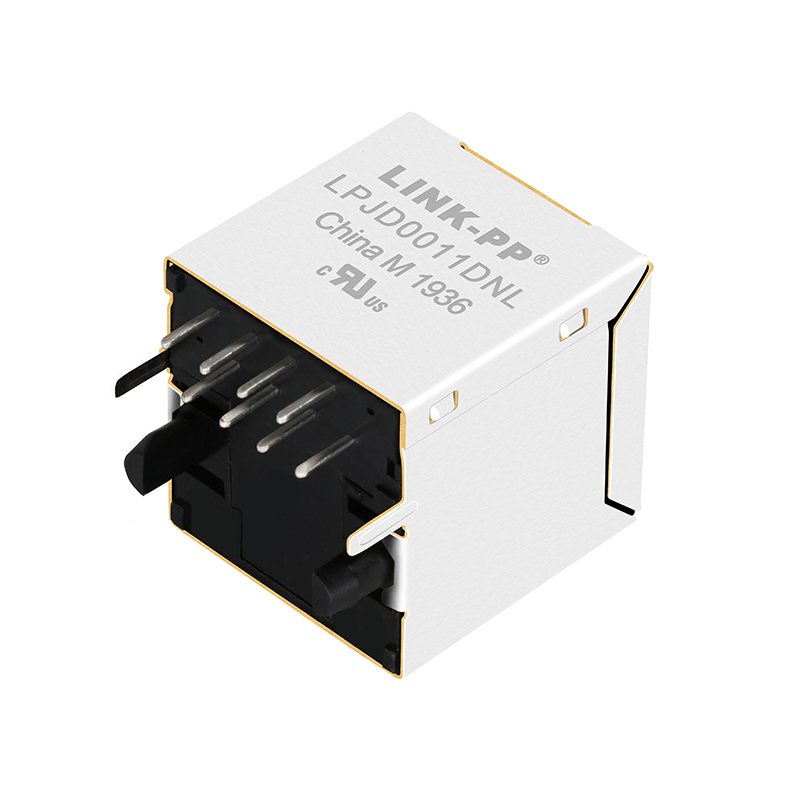

51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
Products Description
| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD0011DNL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | Without |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Technical Display & Production
Profile
Established in 1997, the manufacturer is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier for OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, the company is committed to becoming a world leader in Ethernet RJ45 connectors and LAN transformer technology.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion on custom requirements.
What is your advantage?
We have over 19 years of professional production experience and serve as a long-term partner for major global industry leaders.
