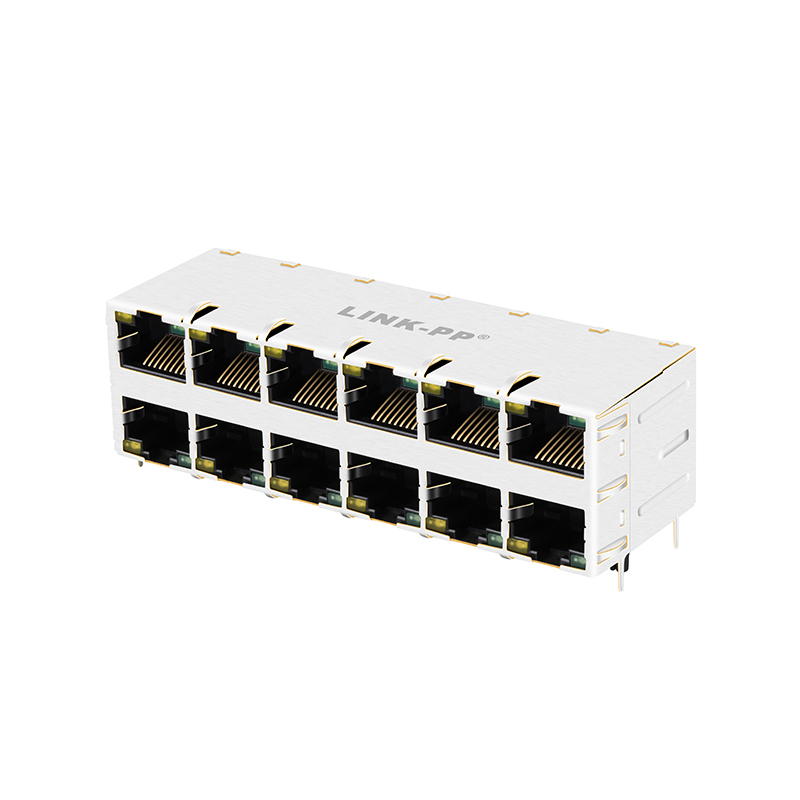

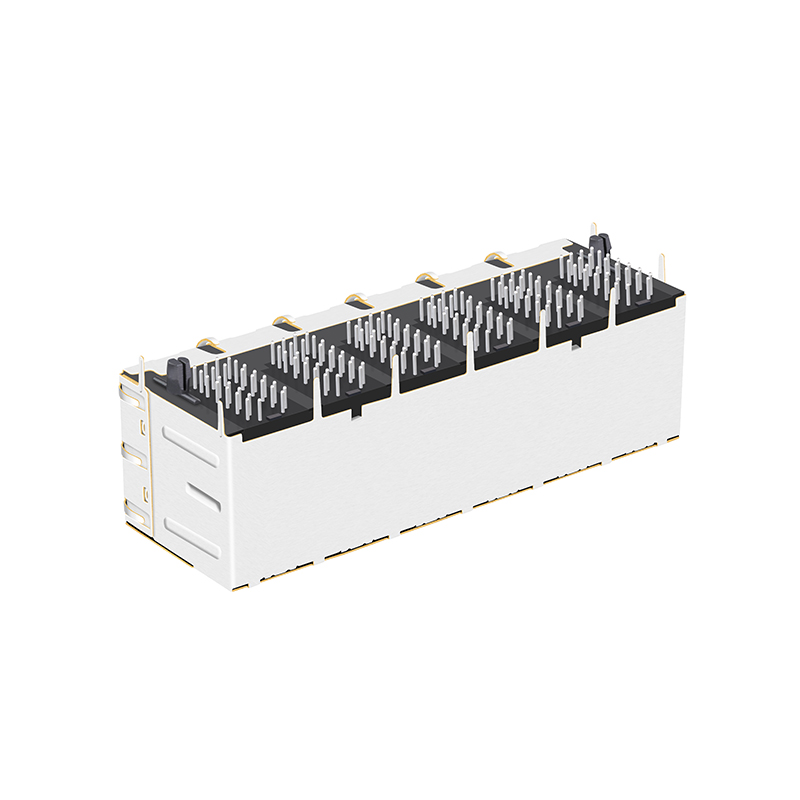

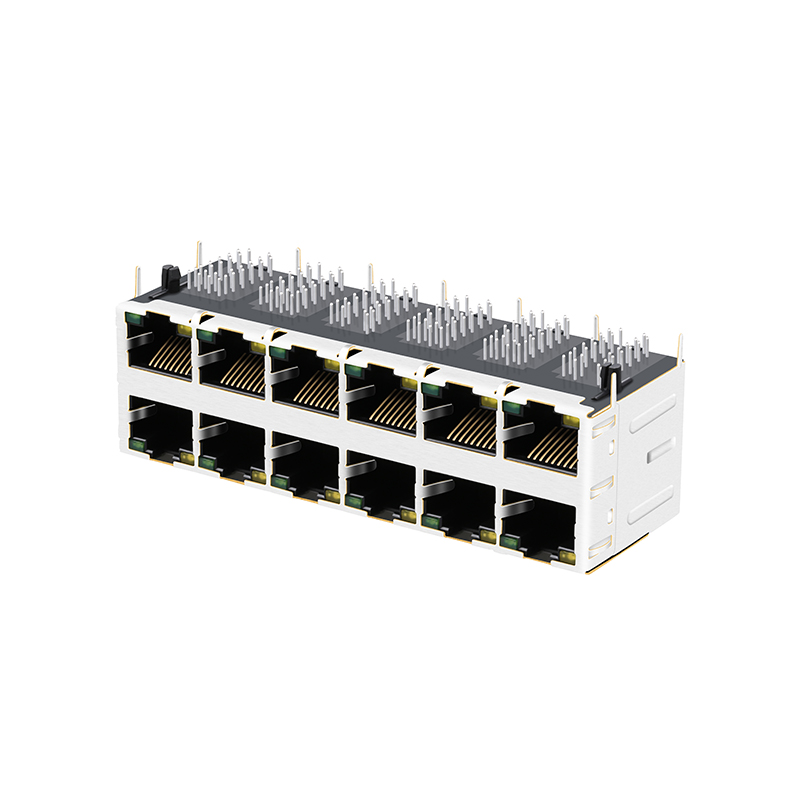

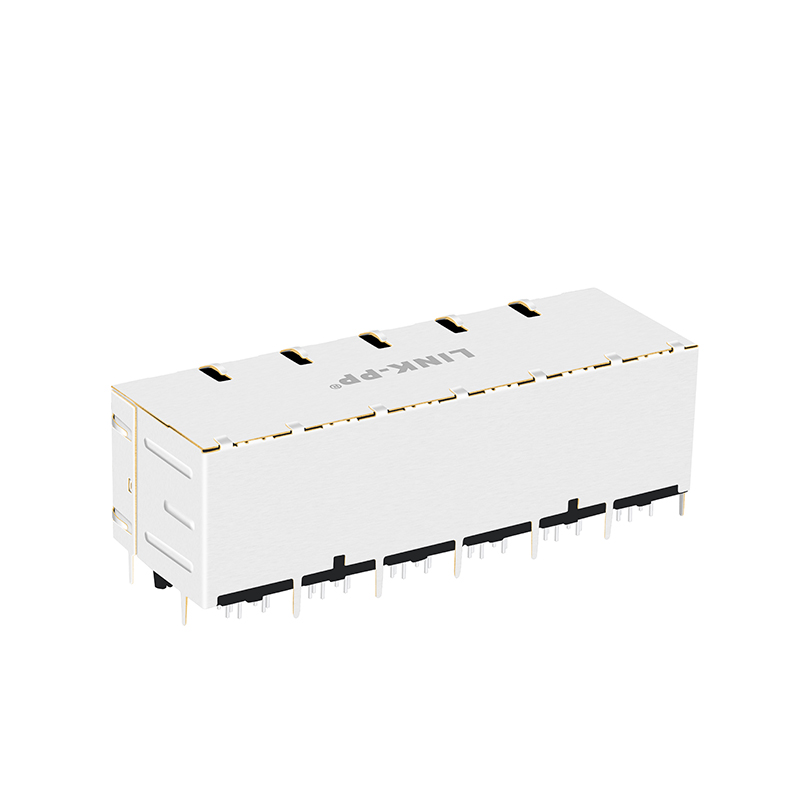

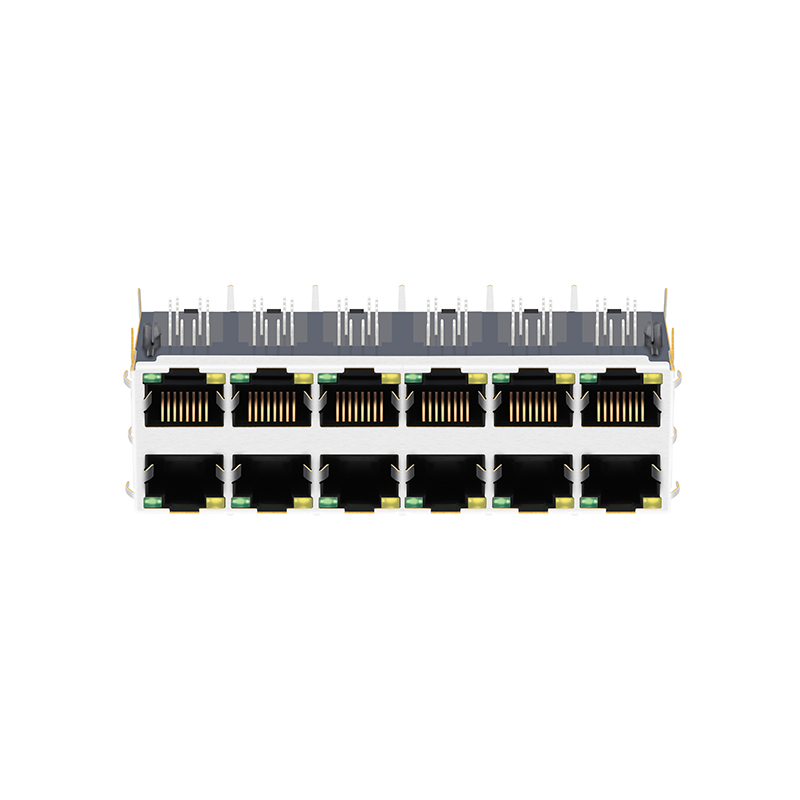

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP
| Product Technical Specifications |
| Part Number |
RJGE-12M6170DJP |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
2X6 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000/10G BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- OEM of TE (Tyco) for 9 Years
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel...
- Preferred Supplier of TI (Texas Instruments)
- Quality Guarantee: 6 Years
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
- Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
• Preferred Supplier Of TI Samsung Cisco Siemens ...
• Welcome To Visit The TI Website
• You Will Look At Our Logo on BeagleBone Board
What are the transmission speeds supported by the RJGE-12M6170DJP?
This stacked RJ45 connector supports a wide speed range, including 10 Base-T, 100 Base-T, 1000 Base-T, and up to 10G Base-T Ethernet network standards.
Does this 2x6 stacked RJ45 jack support Power over Ethernet (PoE)?
No, the RJGE-12M6170DJP model is designed specifically for non-PoE Ethernet applications.
What are the operating temperature ranges for this connector?
The connector supports standard operating temperatures of 0 to 70°C and extended industrial ranges of -40 to 85°C.
Are LEDs integrated into this stacked jack?
This model is highly flexible and can be customized with or without integrated status LEDs depending on your hardware specifications.
What certifications and environment standards are guaranteed?
The product complies with UL certification, ISO 9001:2008, REACH, RoHS standards (with lead in solder exemption), and is subjected to 100% QA testing.
What is the mounting configuration of this RJ45 connector on the PCB?
It features a side entry (right angle) PCB mounting angle, utilizing THT solder pin type with a T-post retaining mechanism for structural stability.
