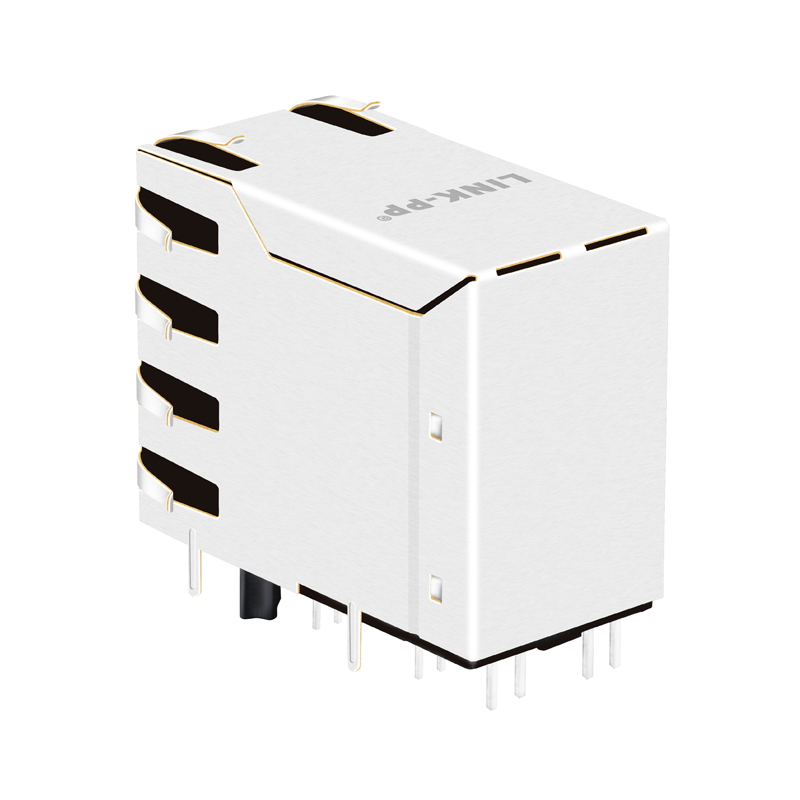

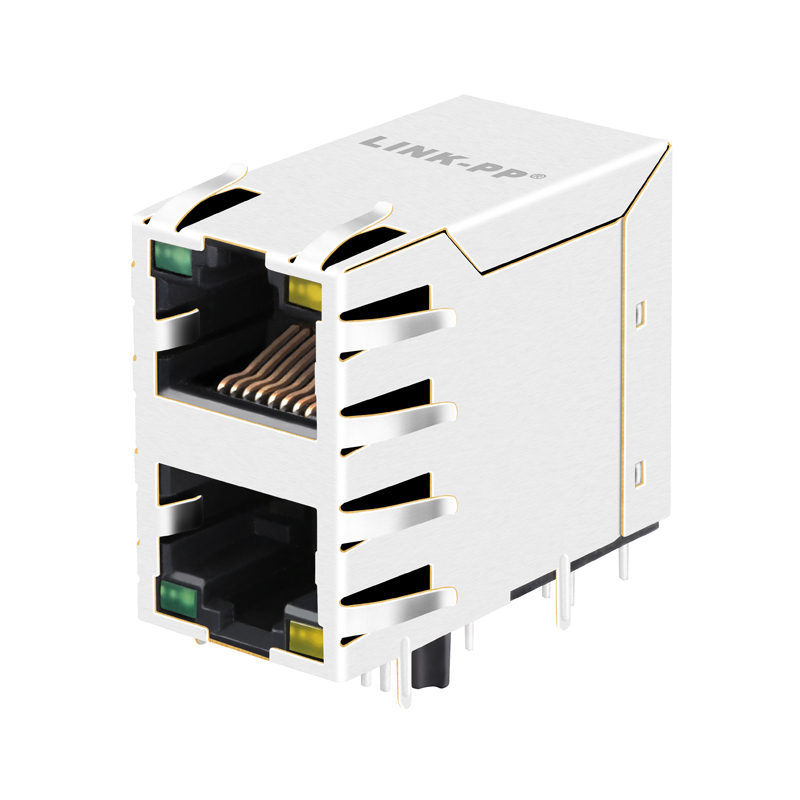

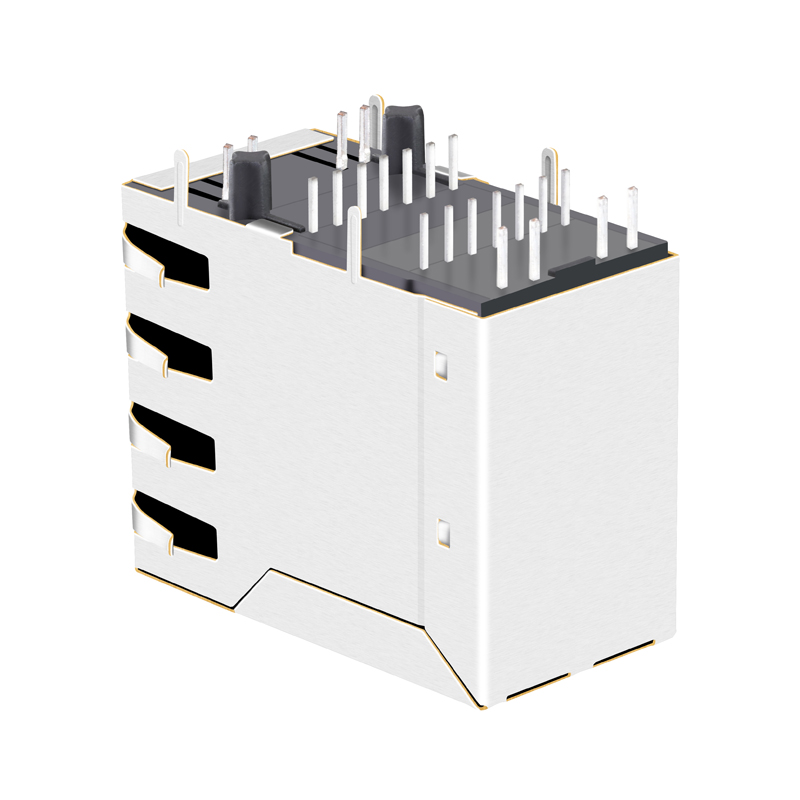

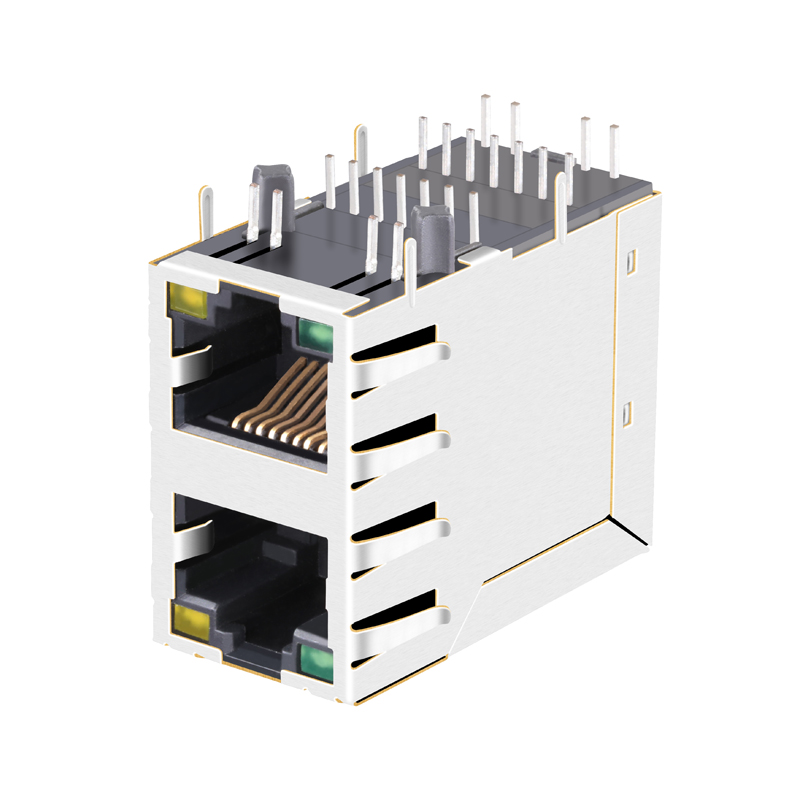

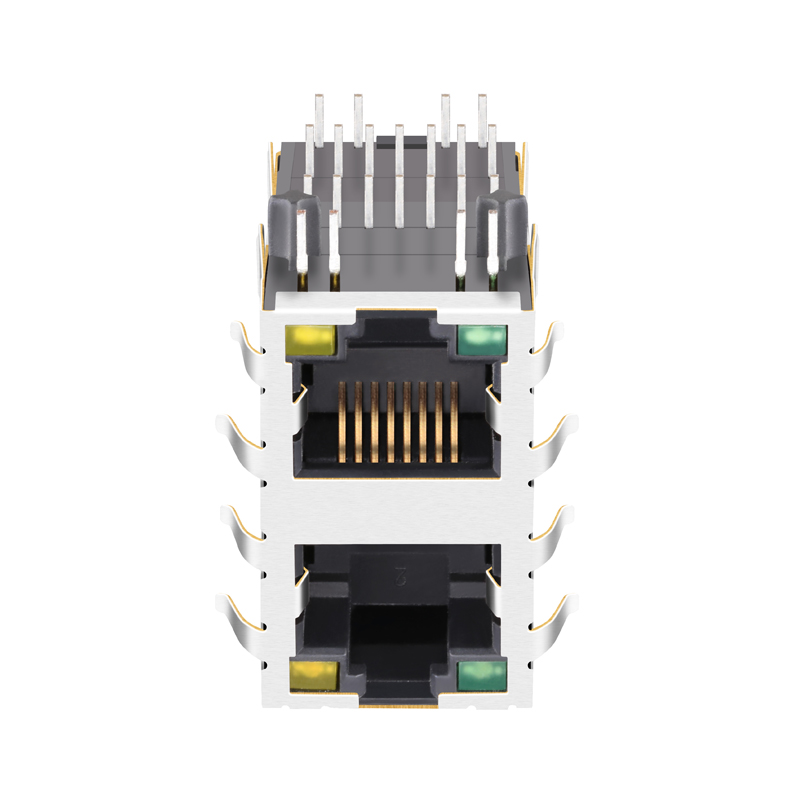

| Item | RJ45 Female Connector |
| Compatible With | RJMG12163226600R RJMG163003101NR RJSAE-5384-02 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fees.
Items currently in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, we accept OEM and ODM customization. Please send an inquiry to us so that we can proceed with a detailed discussion.
We possess 19 years of manufacturing experience and have maintained long-term partnerships with leading global technology corporations.
