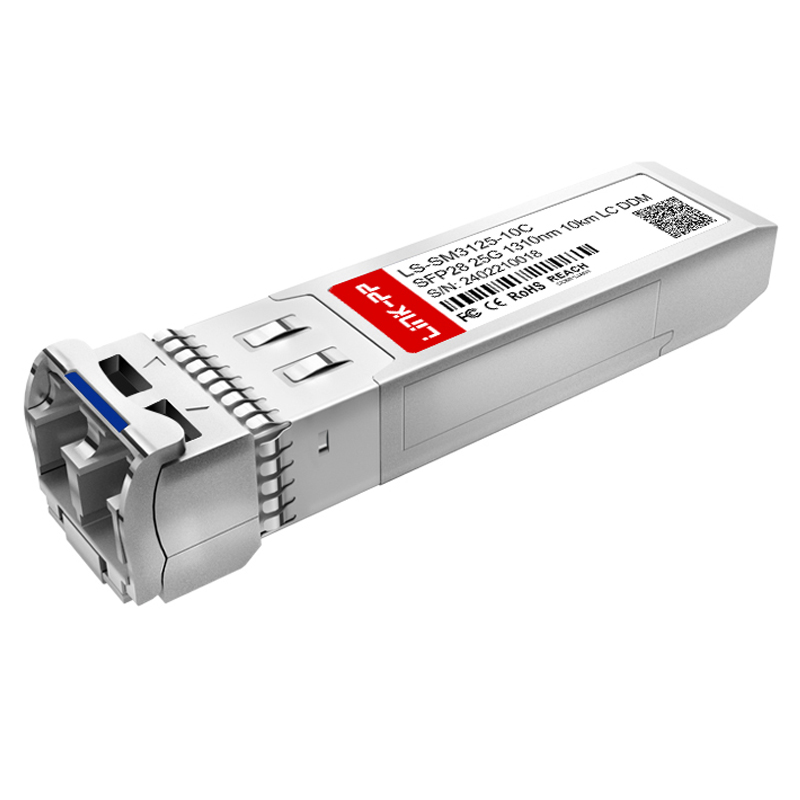

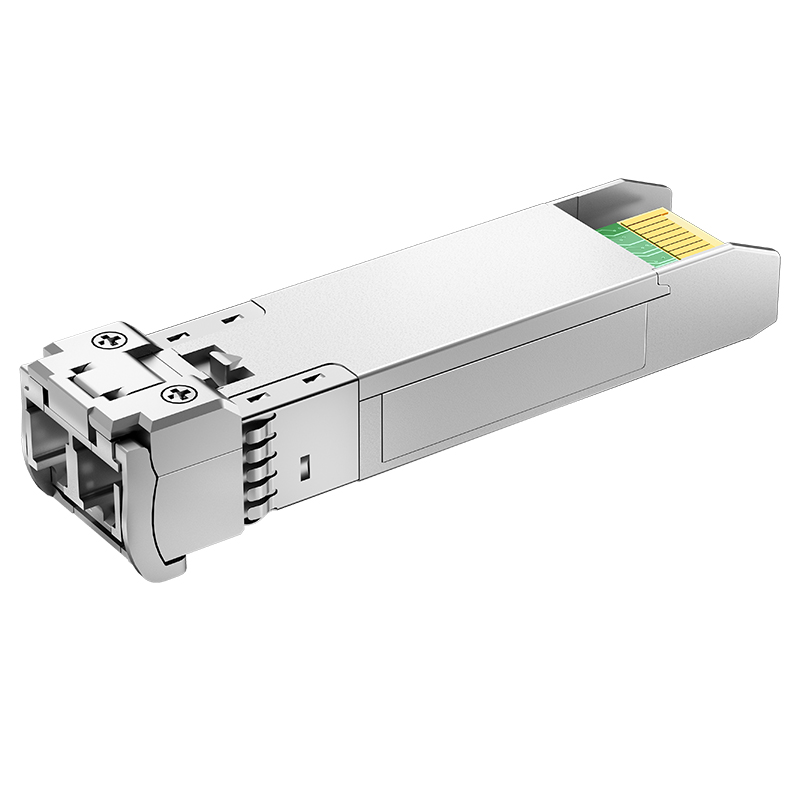

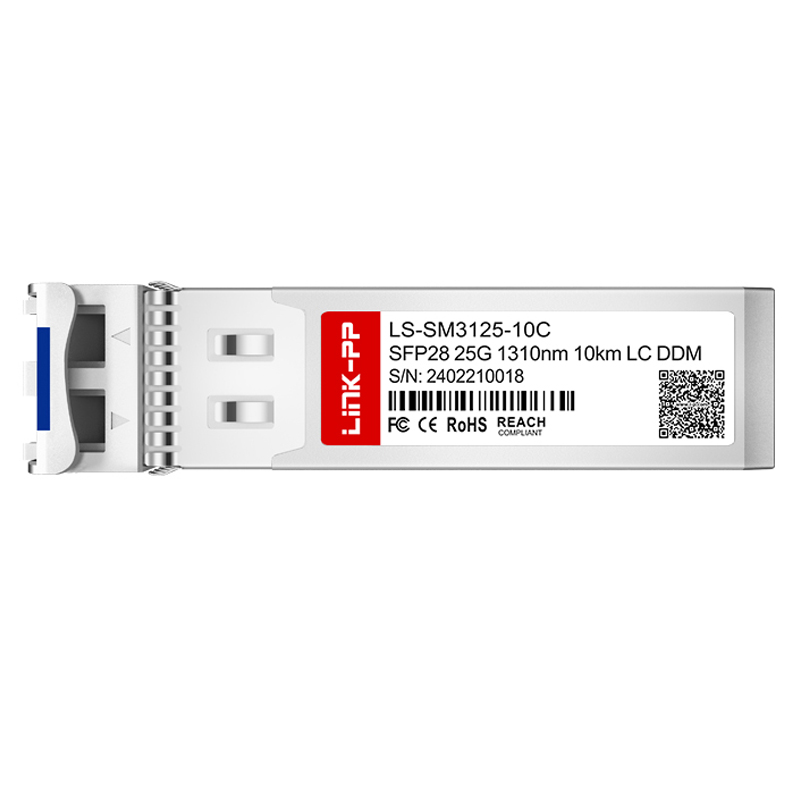

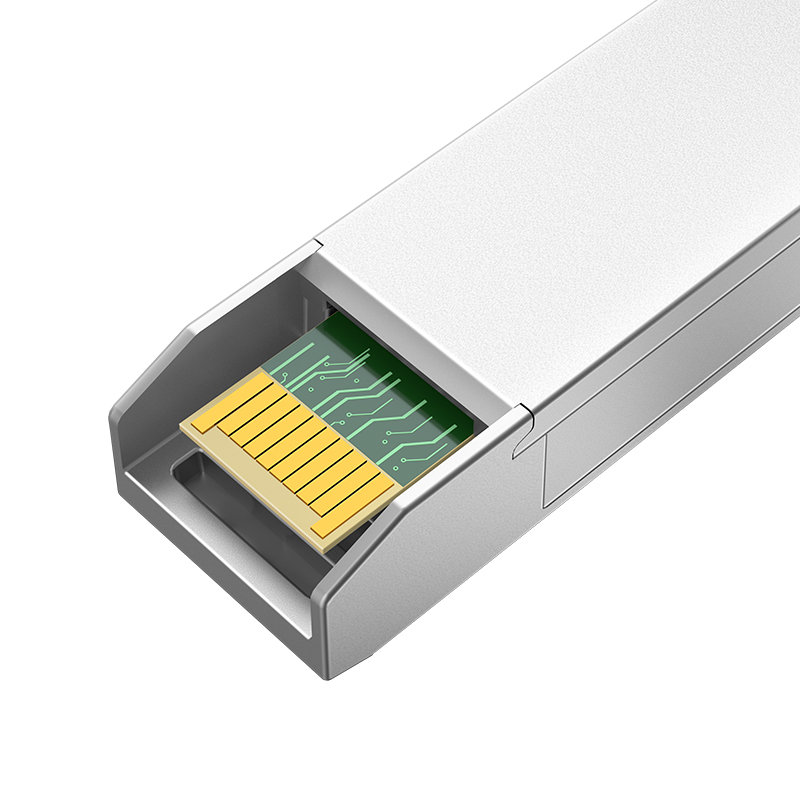

Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
1 / 5
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module

Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module

Send Inquiry

Product Description

Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Products Description
Item 25G SFP28
Compatible Cisco, Juniper, Arista, Brocade, Dell, etc.
Part Status Active
Form Factor SFP28
Max Data Rate 25.78Gbps
Wavelength 1310nm
Max Cable Distance 10km
Media SMF
Connector Duplex LC
Optical Component DFB/PIN
TX Power -4.5~2dBm
Receiver Sensitivity <-12dBm
Receiver Overload 2dBm
Power Consumption <1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Solution
Optical Module Details
Optical Module Structure
Optical Transceiver Overview
Optical Interconnect Portfolio
Production Process
Testing Equipment
Quality Inspection
Related Products SFP Cage
Related Products SFP Cage
Why Choose Us
Manufacturing Capability
Advanced Equipment
Testing and Verification
Global Supply Chain
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are required.
What is your delivery time?
Ready to ship for in-stock items, and 15-30 days for mass production.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
We have 19 years of production experience and have partnered with industry leaders and global chip makers for many years.
