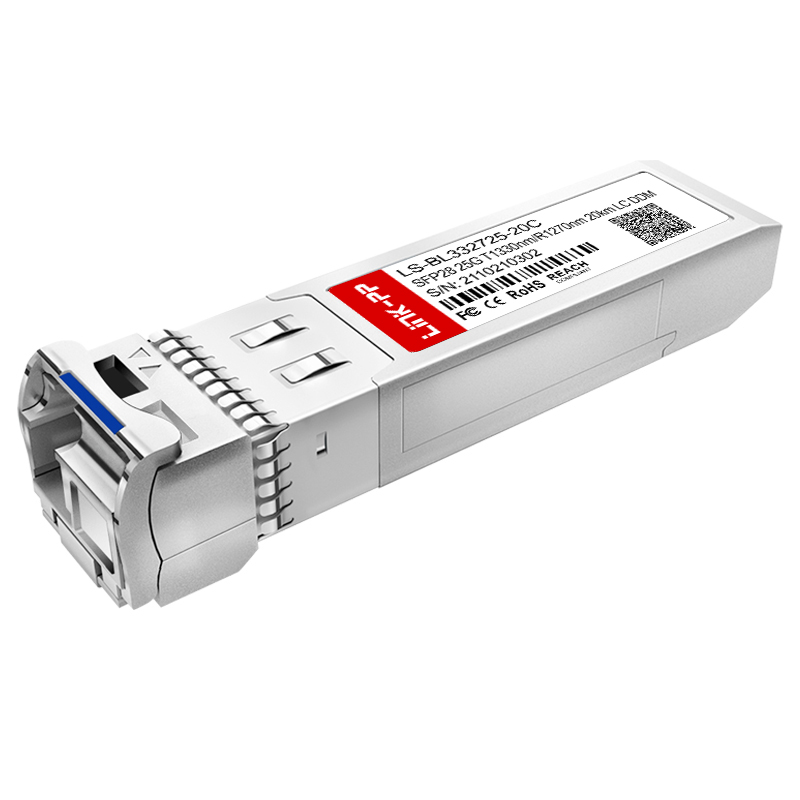

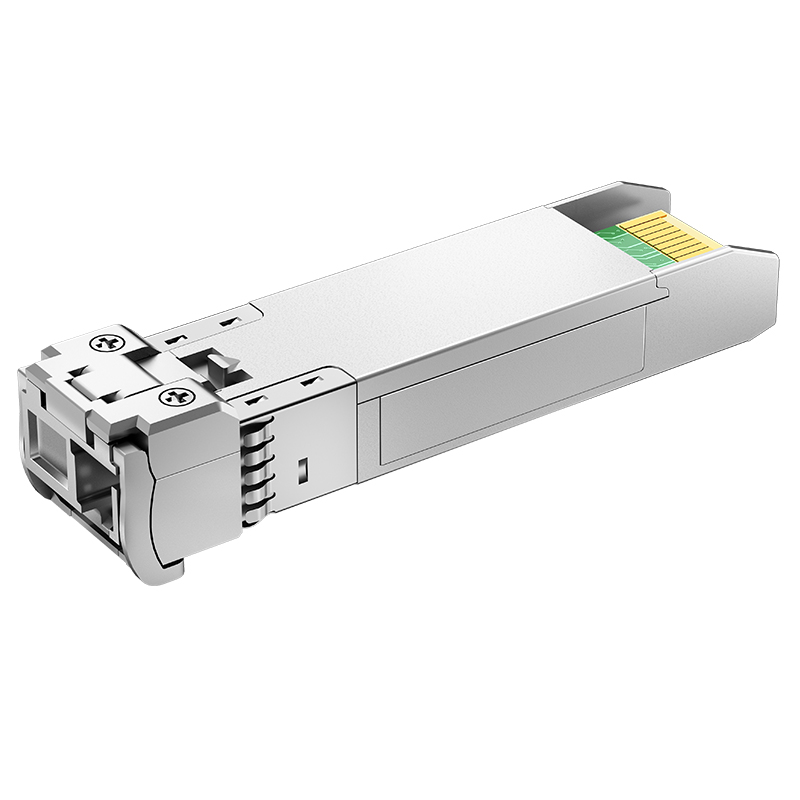

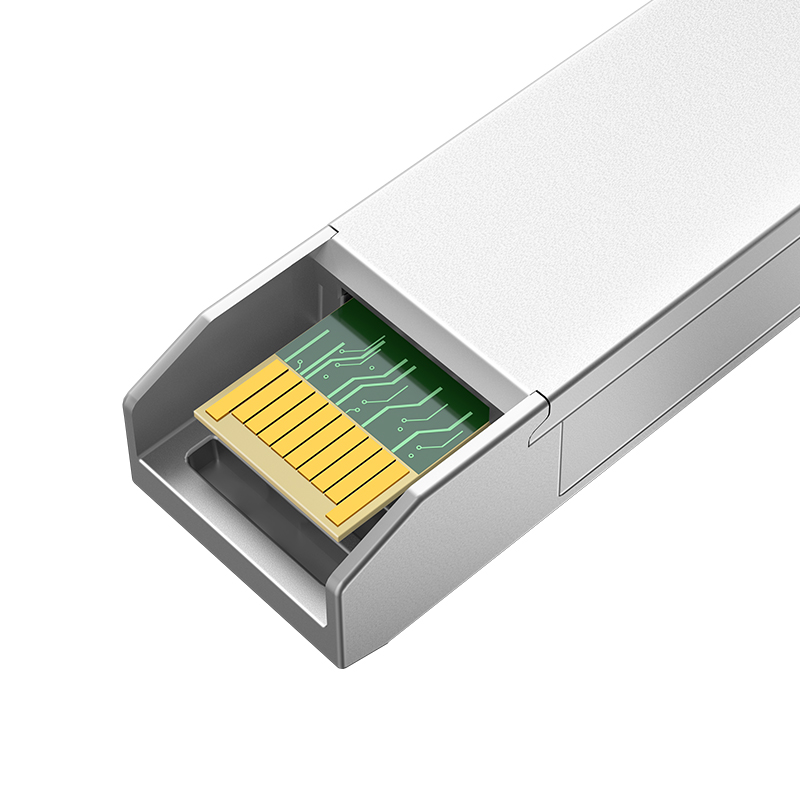

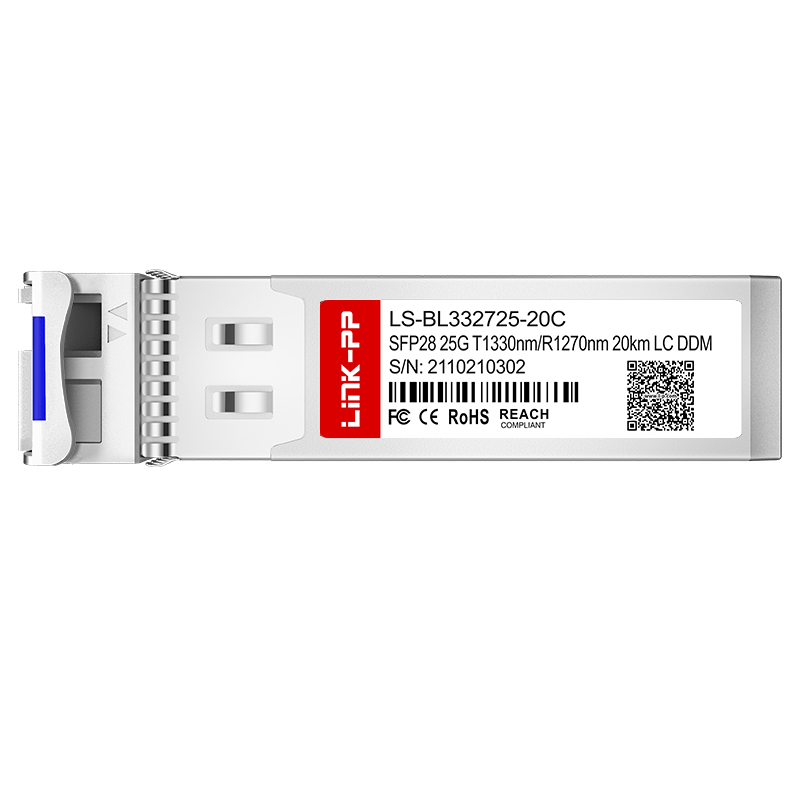

Bidirectional 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 20km Simplex LC Optical Transceiver Module

1 / 5

Bidirectional 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 20km Simplex LC Optical Transceiver Module

Send Inquiry

Product Description

Products Description

Item	25G SFP28 Transceiver
Part No.	LS-BL332725-20C
Part Status	Active
Form Factor	SFP28
Max Data Rate	25Gbps
Wavelength	1330nm-TX/1270nm-RX
Max Cable Distance	20km
Media	SMF
Connector	Simplex LC
Optical Component	DFB/PIN
TX Power	0~6dBm
Receiver Sensitivity	<-14dBm
Receiver Overload	2.5dBm
Power Consumption	≤1.2W
Extinction Ratio	3.5dB
DDM/DOM	Supported
Commercial Temperature Range	0°C to 70°C / -40°C to 85°C
Protocols	eCPRI, SFF-8472, SFF-8432, SFF-8431
Warranty	5 Years
Sample	Available

View Our Solution

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but the shipping fee should be covered.

What is your delivery time?

Items in stock are ready to ship. For mass production, the delivery time is between 15 to 30 days.

What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so we can discuss the details of your project.

What is your advantage?

We have decades of production experience and are a trusted partner to top-tier global enterprise clients.

Product Detail

Bidirectional 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 20km Simplex LC Optical Transceiver Module
