Products Description
| Item |

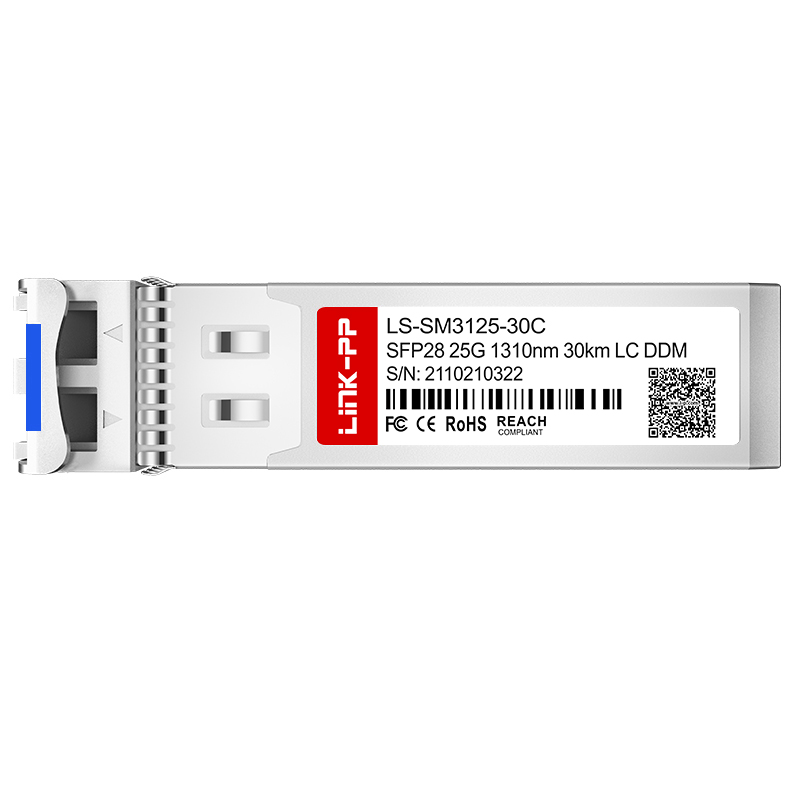

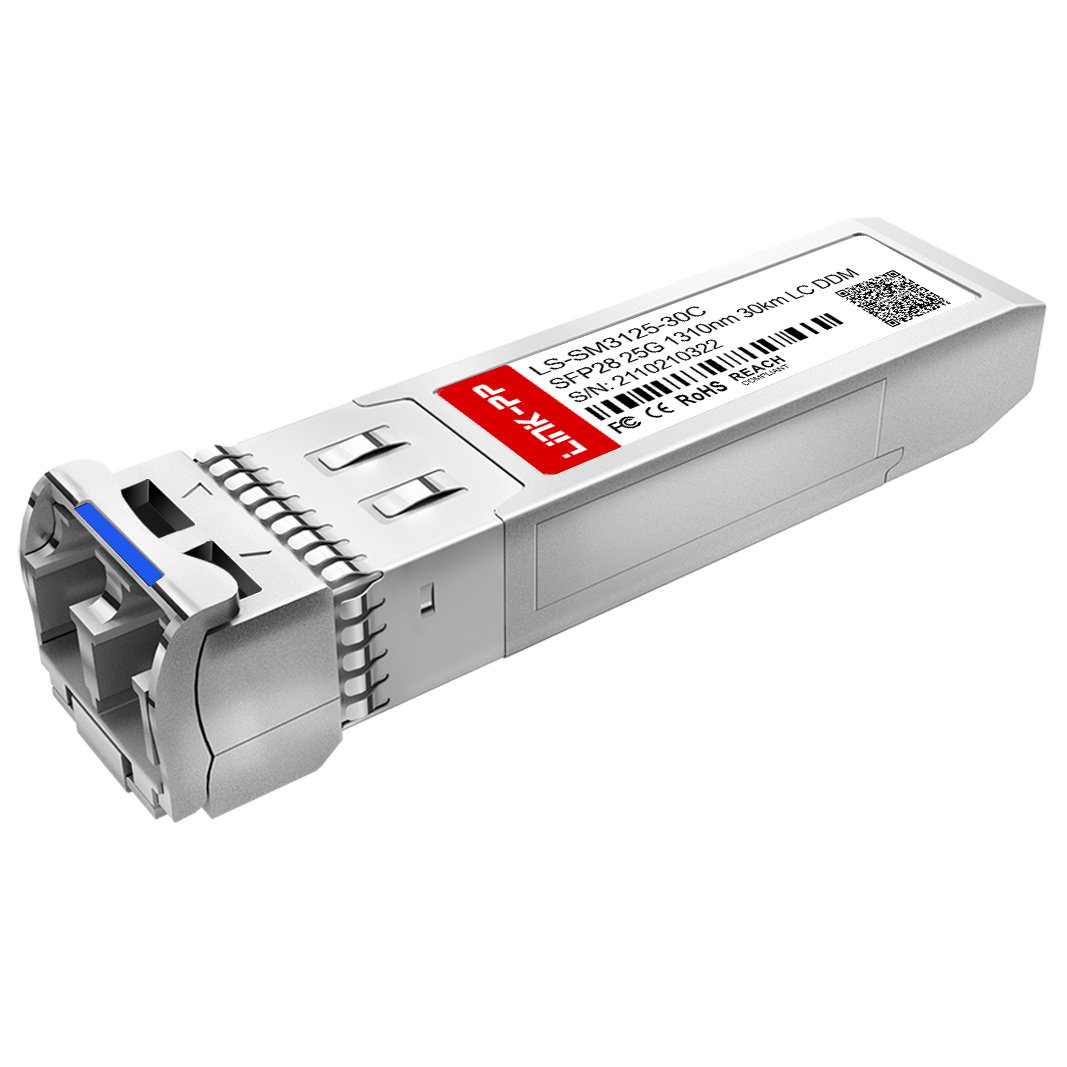

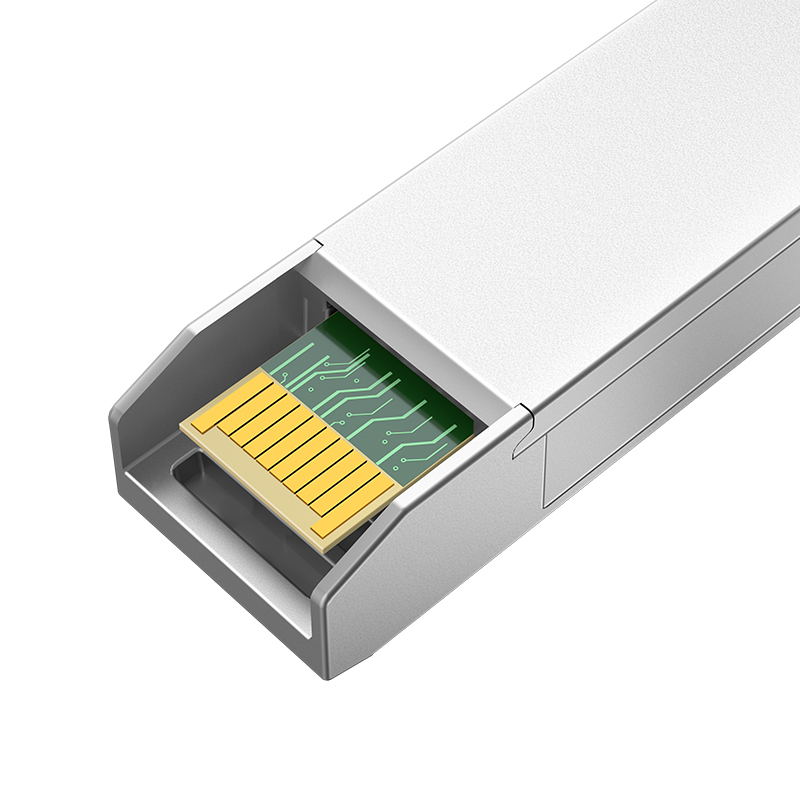

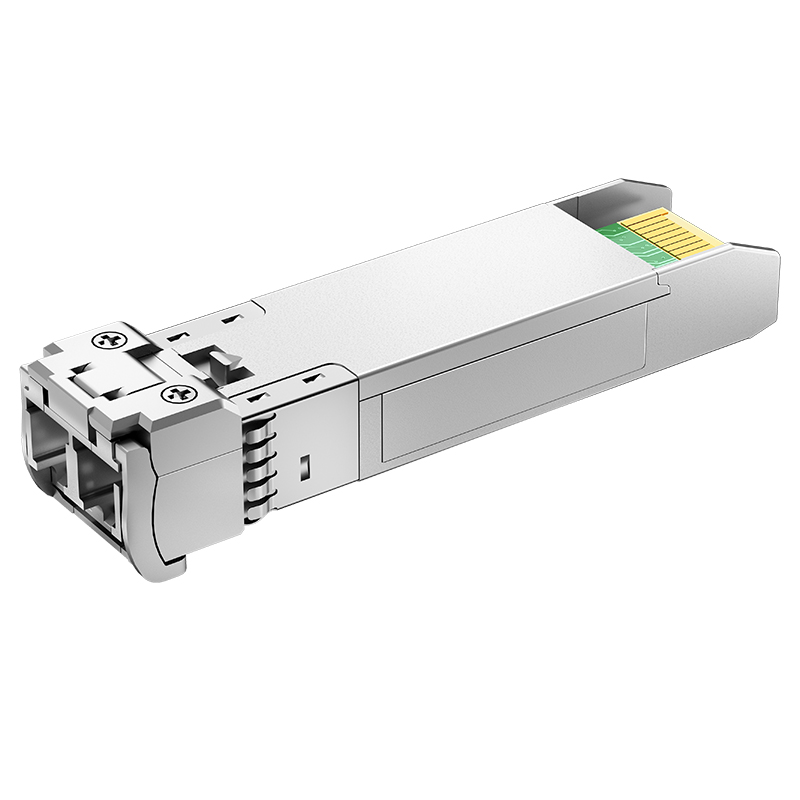

25G SFP28 Transceiver |
| Part No. |
LS-SM3125-30C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
25Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
30km |
| Media |
SMF |
| Connector |
Duplex LC |
| Optical Component |
DML/APD |
| TX Power |
0~6dBm |
| Receiver Sensitivity |
<-19dBm |
| Receiver Overload |
-4dBm |
| Power Consumption |
≤2.2W |
| Extinction Ratio |
4dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0℃ to 70°C / -40℃ to 85℃ |
| Protocols |
MSA Compliant, CPRI, eCPRI |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aiming at global communication network constructers, we provide FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
⚙ Related Products SFP Cage ⚙
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and testing equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Utilizing the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Frequently Asked Questions
Q
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping costs.
Q
What is your delivery time?
Products in stock are ready to ship, and mass production order delivery takes about 15-30 days.
Q
What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q
Can you accept OEM/ODM orders?
Yes, please send us an inquiry so we can have a detailed discussion about your custom requirements.
Q
What are your main advantages?
We offer 19 years of manufacturing expertise and have been trusted partners for major global enterprise leaders for many years.
