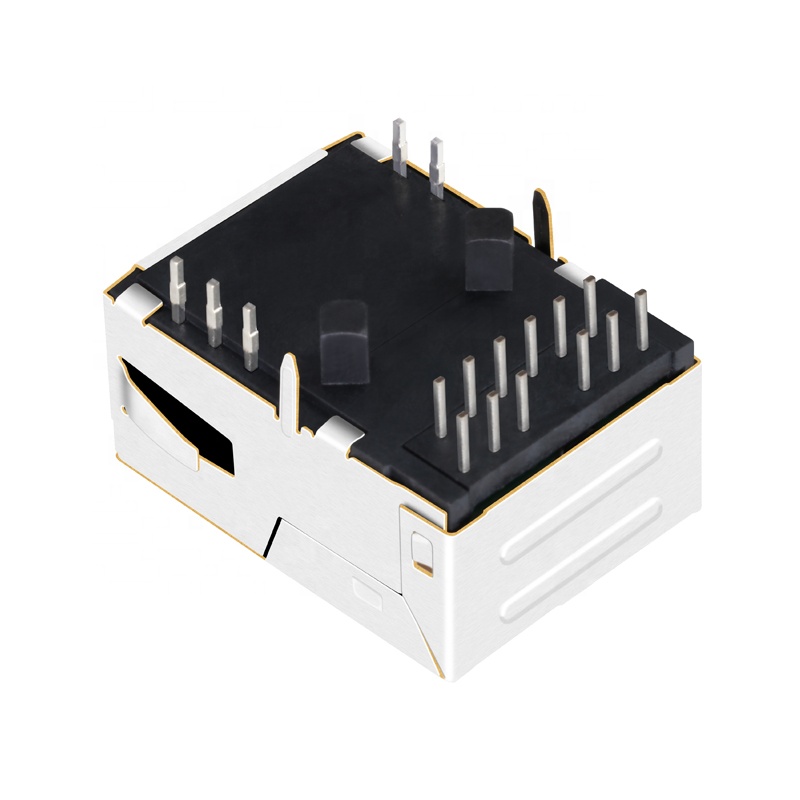

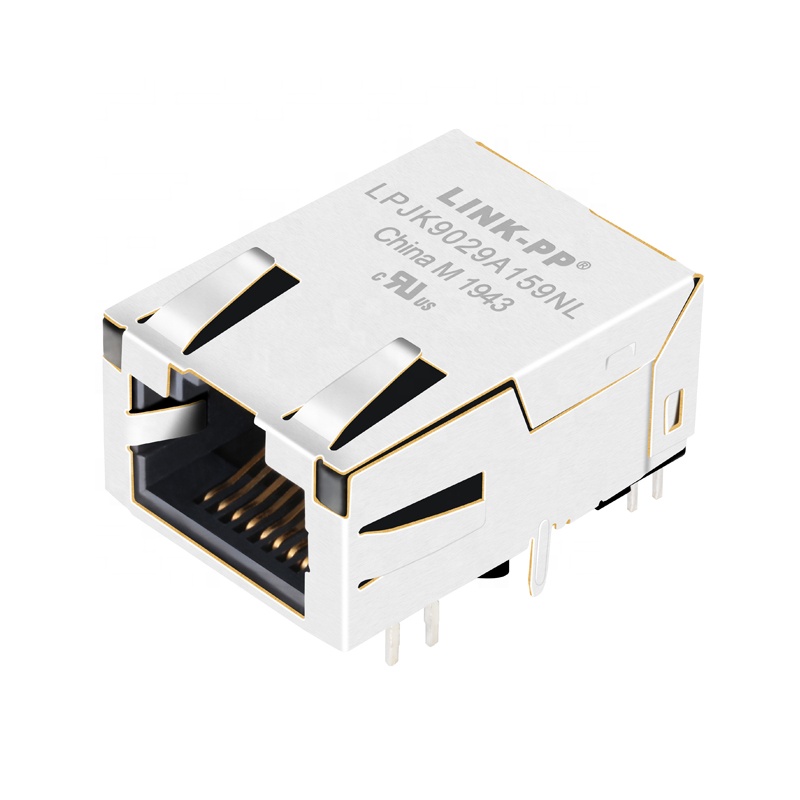

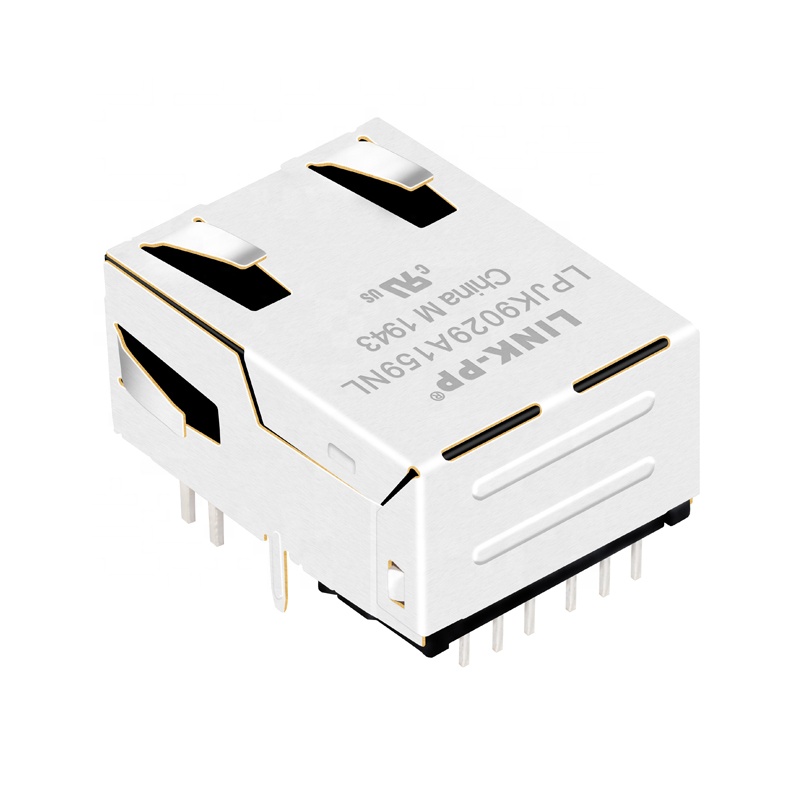

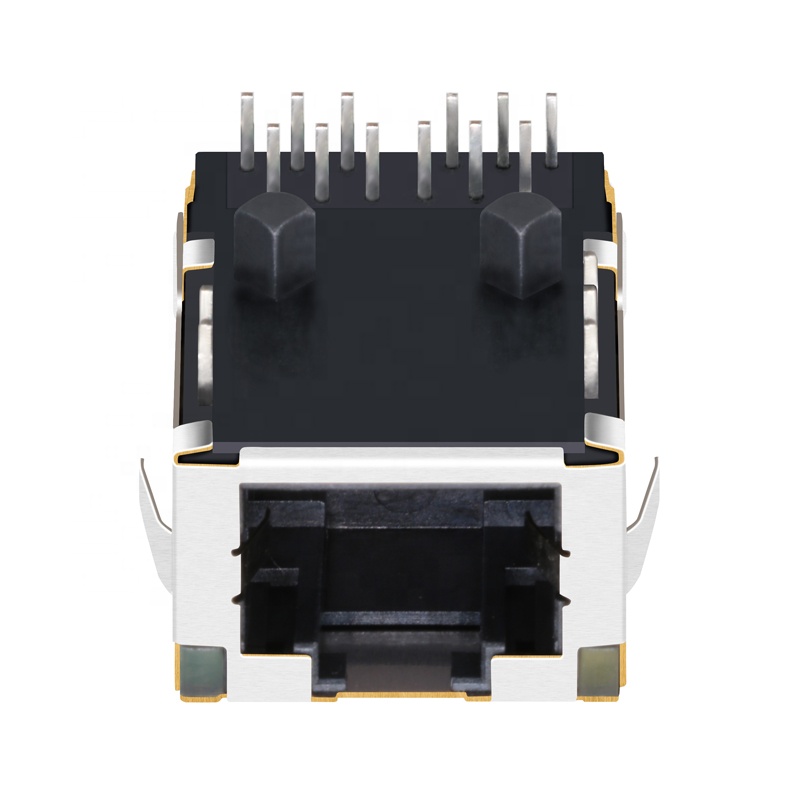

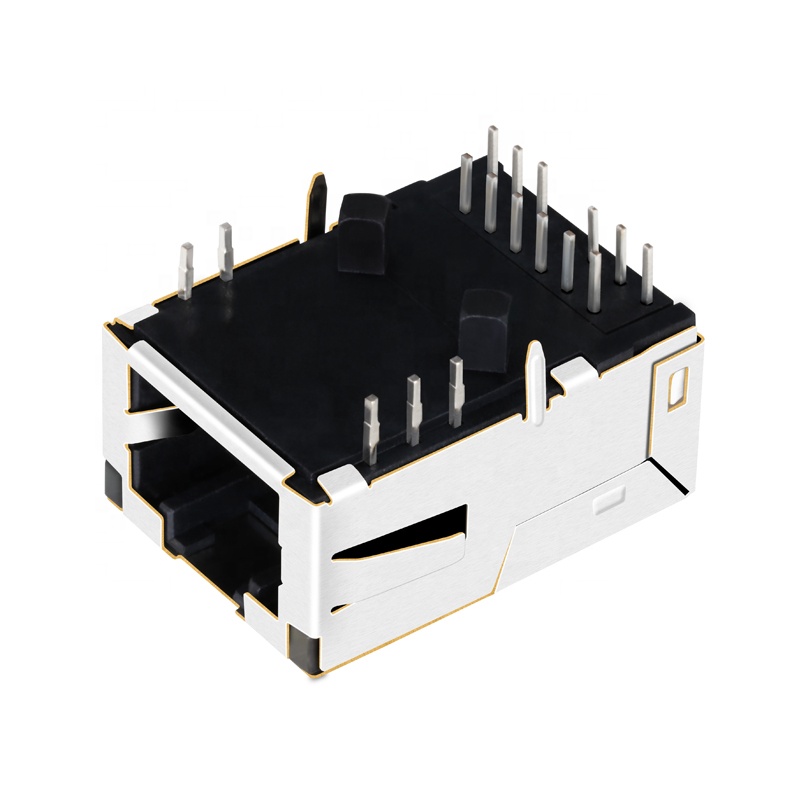

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
1 / 5
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

Send Inquiry

Product Description

Product Description
Product Description Image 1
Product Description Image 2
Specification
Item Value
Model Number LPJK9029A159NL
Part Status Active
Connector Type RJ45
Applications-Lan 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow&Green - Yellow
Number of Cores per Jack 8
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery
The Part Number package: 110 pcs in 1 tray, which is 34.5*34.5*27cm, 5.5KGS (550pcs) of each carton.
Packing Details Image
Company Profile
Production Facility Image 1
Production Facility Image 2
Production Facility Image 3
Production Facility Image 4
Production Facility Image 5
Production Facility Image 6
Production Facility Image 7
Characteristics Diagram
Characteristics
RJ45 Connector with integrated transformer / common mode choke Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s Available in SMT, THT and THT with USB Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Frequently Asked Questions
What is the primary function and network speed of this RJ45 connector?
This RJ45 connector integrates a transformer/common mode choke. It supports Power over Ethernet (PoE) configurations up to 50 Watts and handles fast network speeds reaching up to 10 Gbit/s.
What standards is this connector compliant with?
It complies with several industry standards, specifically IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt.
What are the core mounting and terminal configurations for LPJK9029A159NL?
This connector is configured with a Through Hole mounting type, 90° Angle (Right) orientation, Solder termination, Down tab direction, and a Board Guide feature.
What packaging specs are followed for storage and shipment?
The standard shipment package configuration contains 110 pieces in 1 tray (dimensions 34.5*34.5*27cm), yielding a total weight of 5.5KGS for 550 pieces inside a full carton.
What is the recommended operating temperature range?
This RJ45 connector performs optimally within a standardized operating temperature range of 0°C to 70°C.
How do HPLE products improve performance?
HPLE (High Performance Low Emission) products achieve improved Common Mode Rejection through the integration of additional NiZn magnetic cores.
