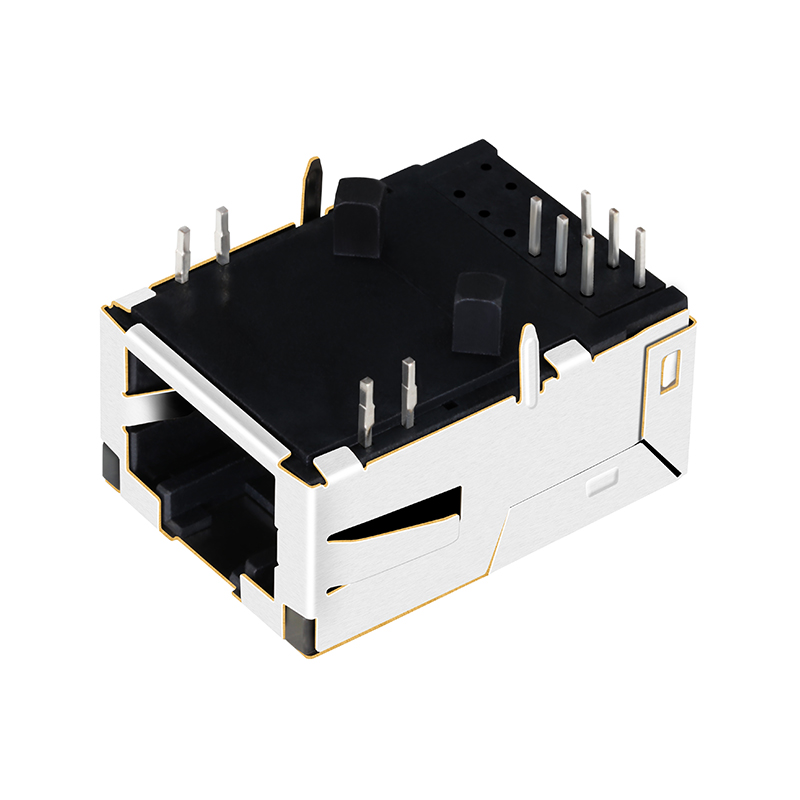

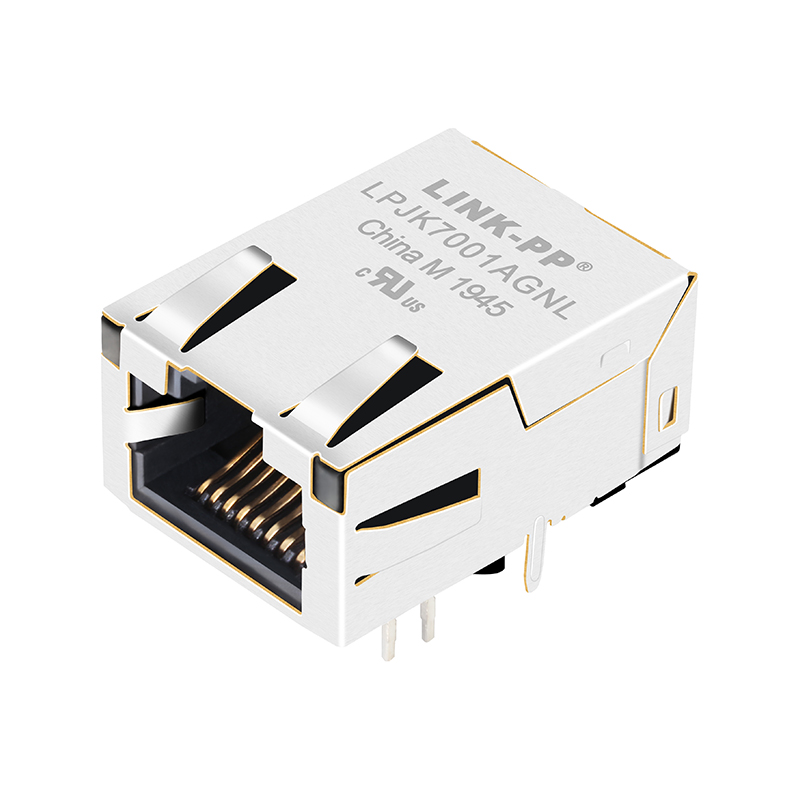

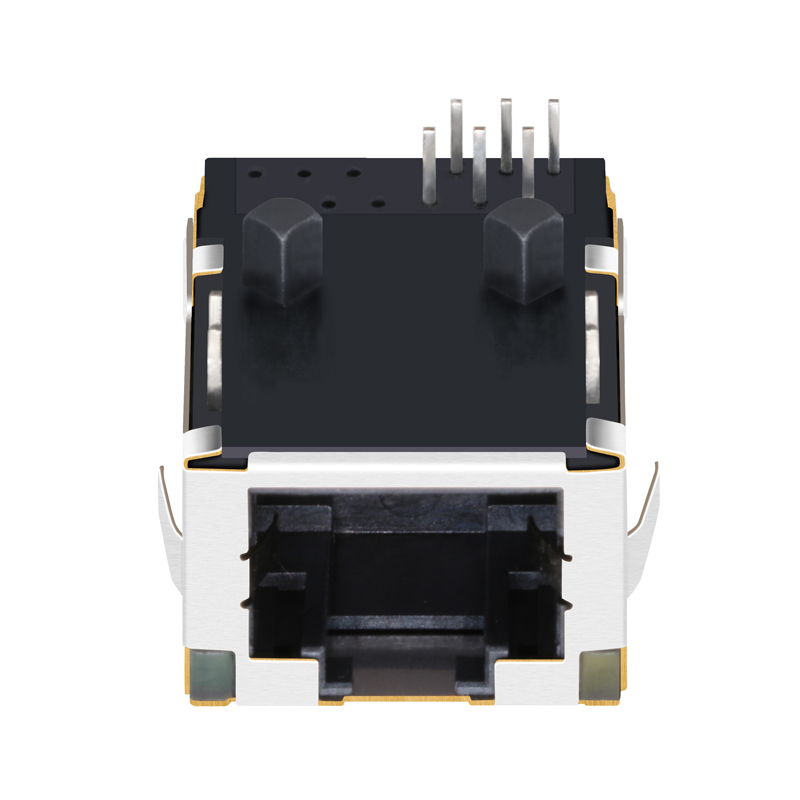

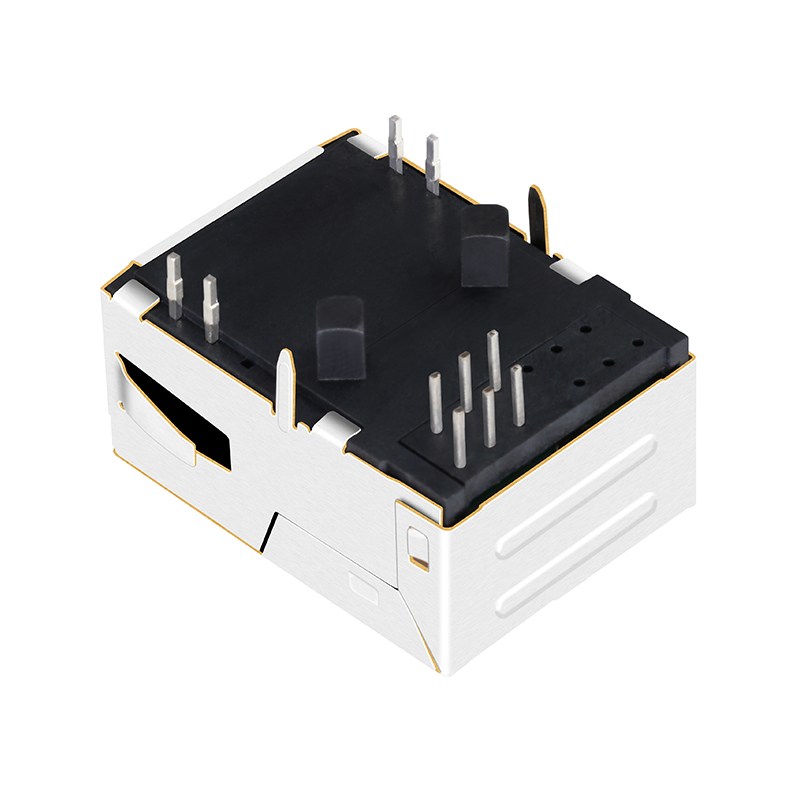

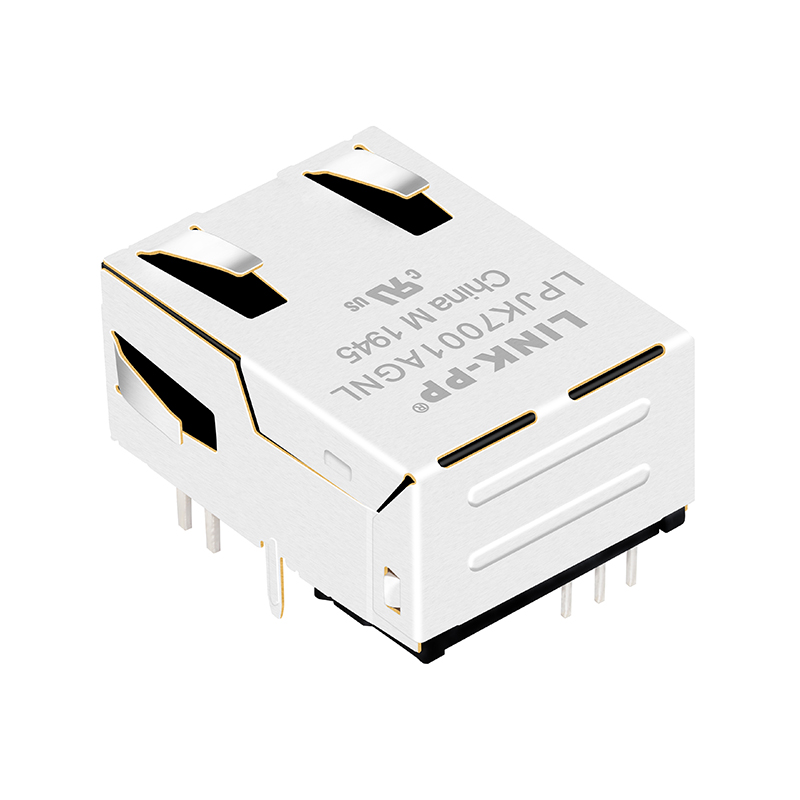

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
1 / 5
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

Send Inquiry

Product Description

Ethernet Connectors and Modules
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
Specification
item RJ45 Connector
Model Number LPJK7001AGNL
Part Status Active
Connector Type Low Profile RJ45
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack 4
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
RJ45 Connector View 1
RJ45 Connector View 2

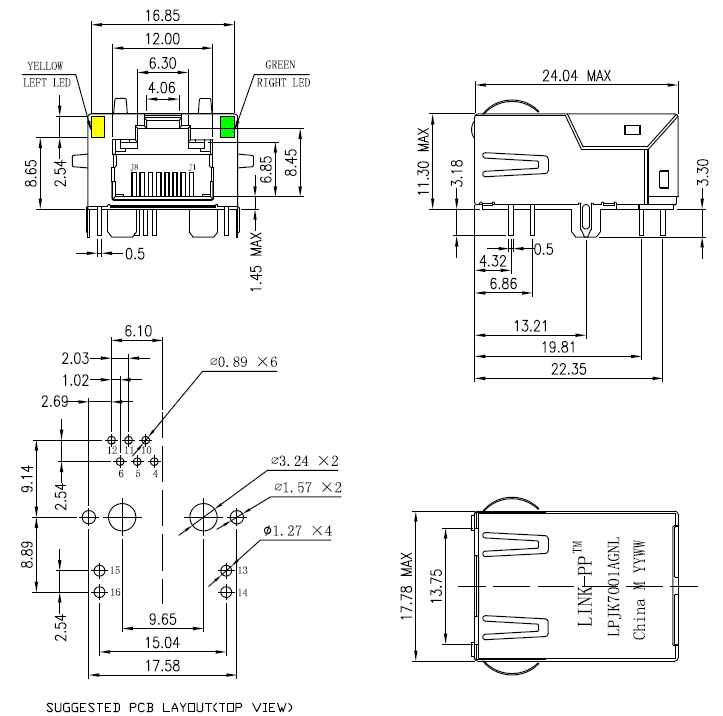

RJ45 Connector View 3
Technical Specifications Diagram
Click Below Products Link To Get More
Product Categorization Matrix
Product Performance Chart
Quality Standard Verification
Engineering Measurements
Interface Configuration details
Production Workflow Overview
Packaging and Shipping Standard
Product Application Fields
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Plant View
Precision Assembly Line
Quality Checking Lab
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with technical support online 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion on your custom specifications.
6. What is your advantage?
We have 19 years of dedicated production experience and we have been trusted partners with global industry leaders for many years.
