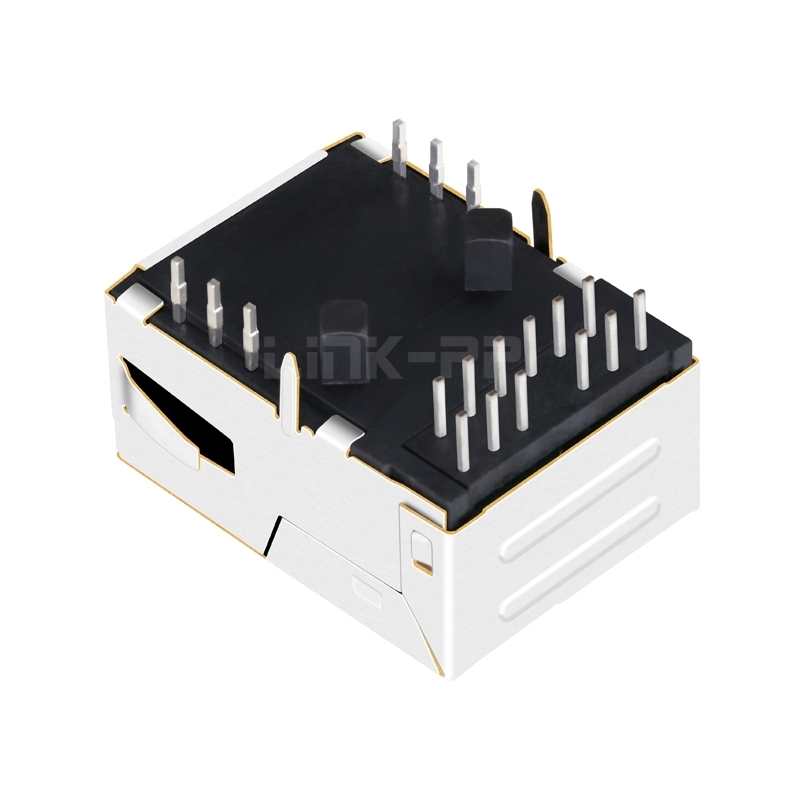

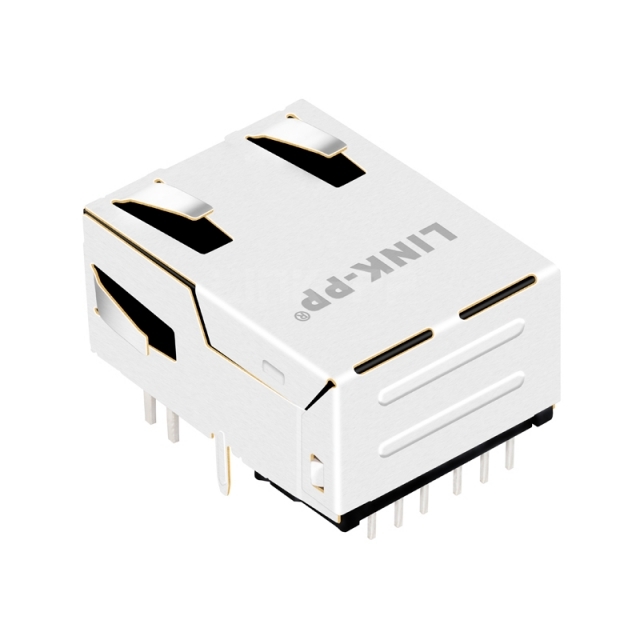

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
Products Description
| Item |
RJ45 Female Connector |
| Part Number |
LPJK9002A83NL |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
10p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10G Base-T |
| Latch |
Down |
| Cores per Port |
8 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T, C |
Company Profile
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the enterprise is a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, the company is committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
FAQ
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
One year guarantee period and we offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion regarding your custom needs.
What is your advantage?
Over 19 years of production experience and long-term partnerships with leading global brands.
