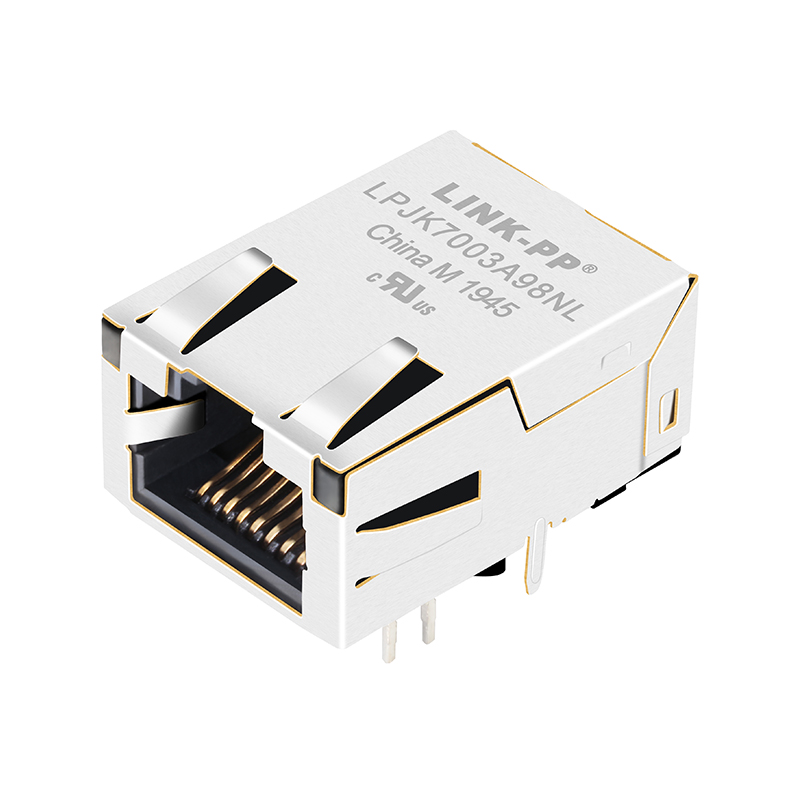

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

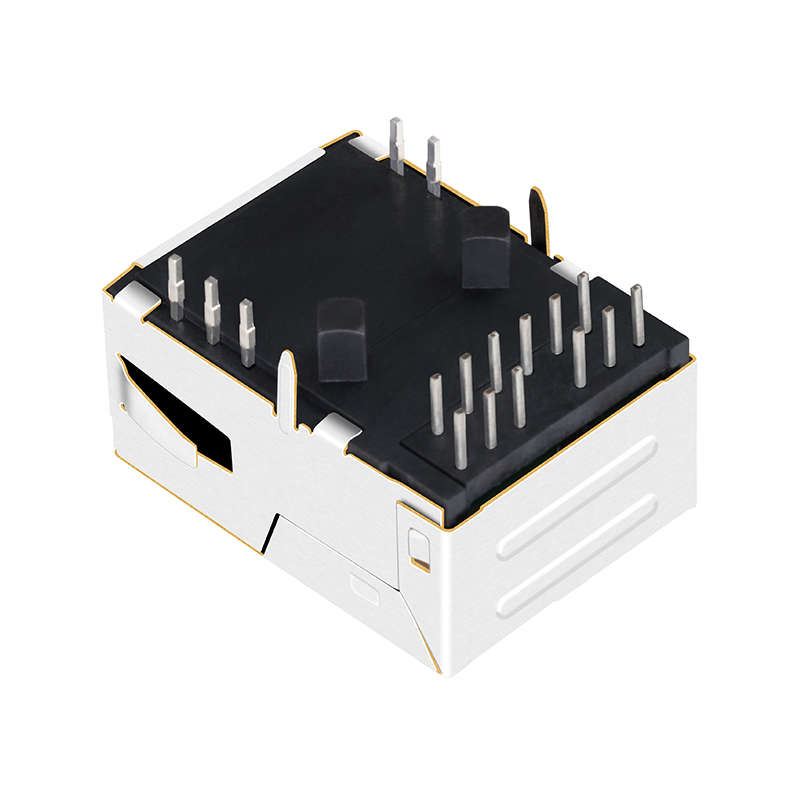

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

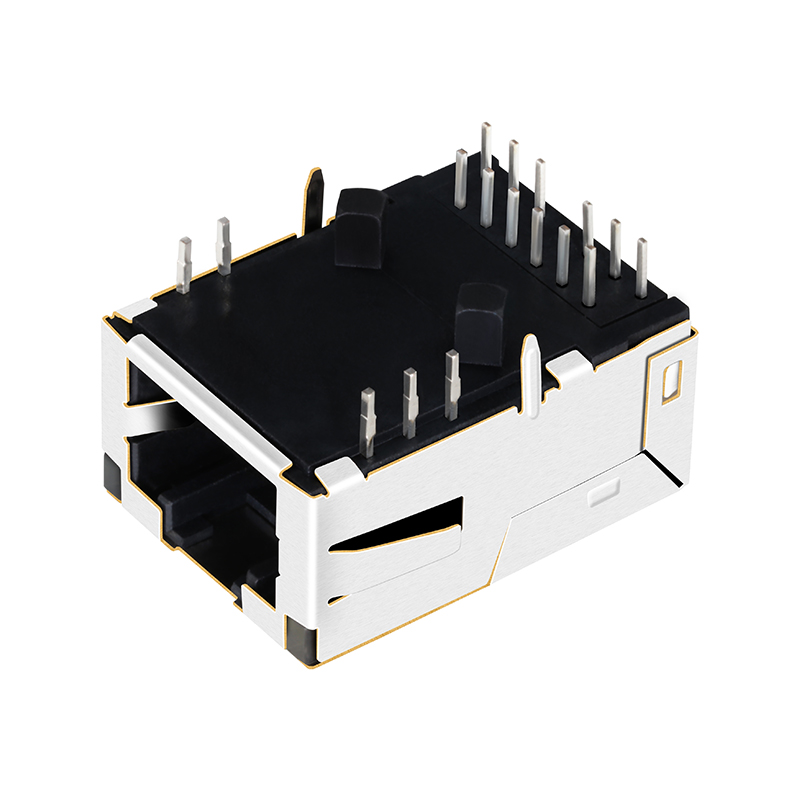

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

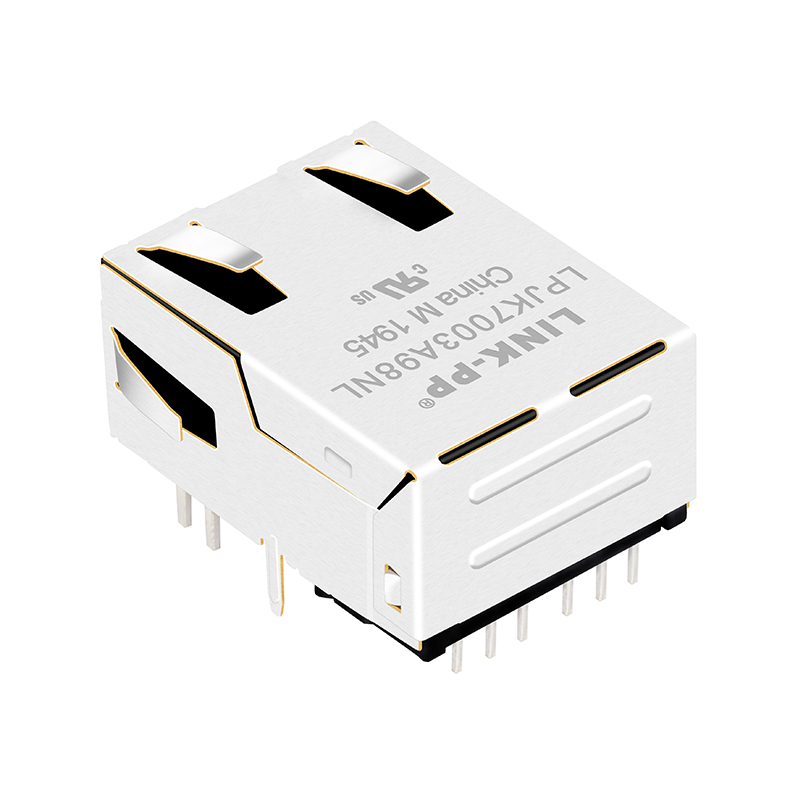

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

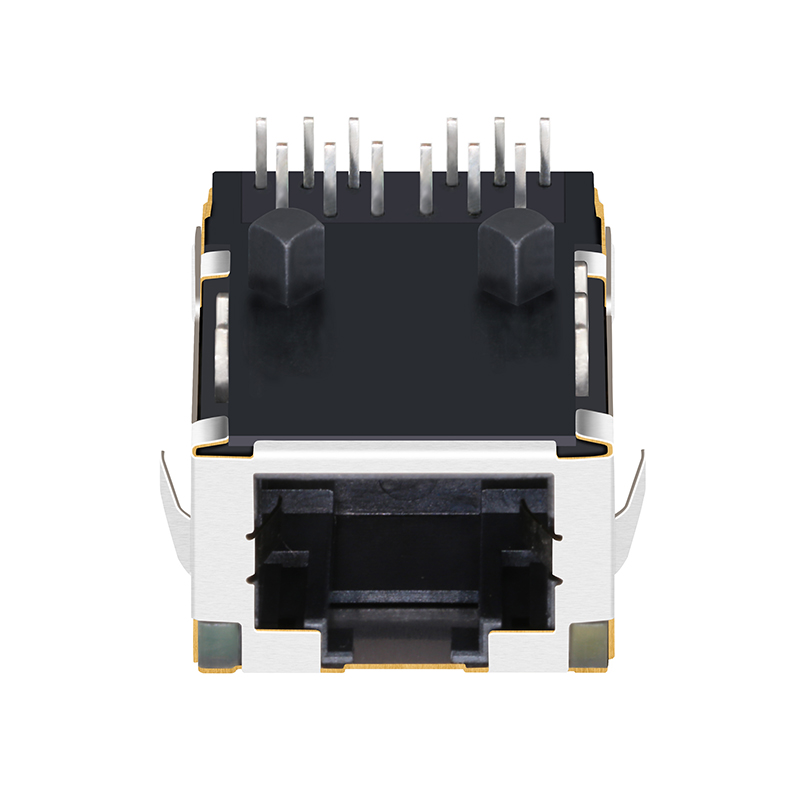

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
1 / 5
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Send Inquiry

Product Description

Ethernet Connectors Showcase
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Products Description
Item RJ45 Female Connector
Part Number LPJK7003A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port, Low Profile
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange&Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Detail Side View
Connector Detail Front View
Dimensions Diagram 1
Dimensions Diagram 2
Pinout Configuration 1
Pinout Configuration 2
Product Categorization Grid
Manufacturing Environment
Production Equipment
Quality Control Testing
Product Testing Stage
Precision Assembly Line
Automated Testing Machinery
Factory Facility Exterior
Production Workshop Overview
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fee covered by the client.
What is your delivery time?
Items currently in stock are ready to ship, while mass production orders typically require 15 to 30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss the details.
What is your advantage?
We have 19 years of manufacturing and design experience, delivering high-quality component solutions globally.
