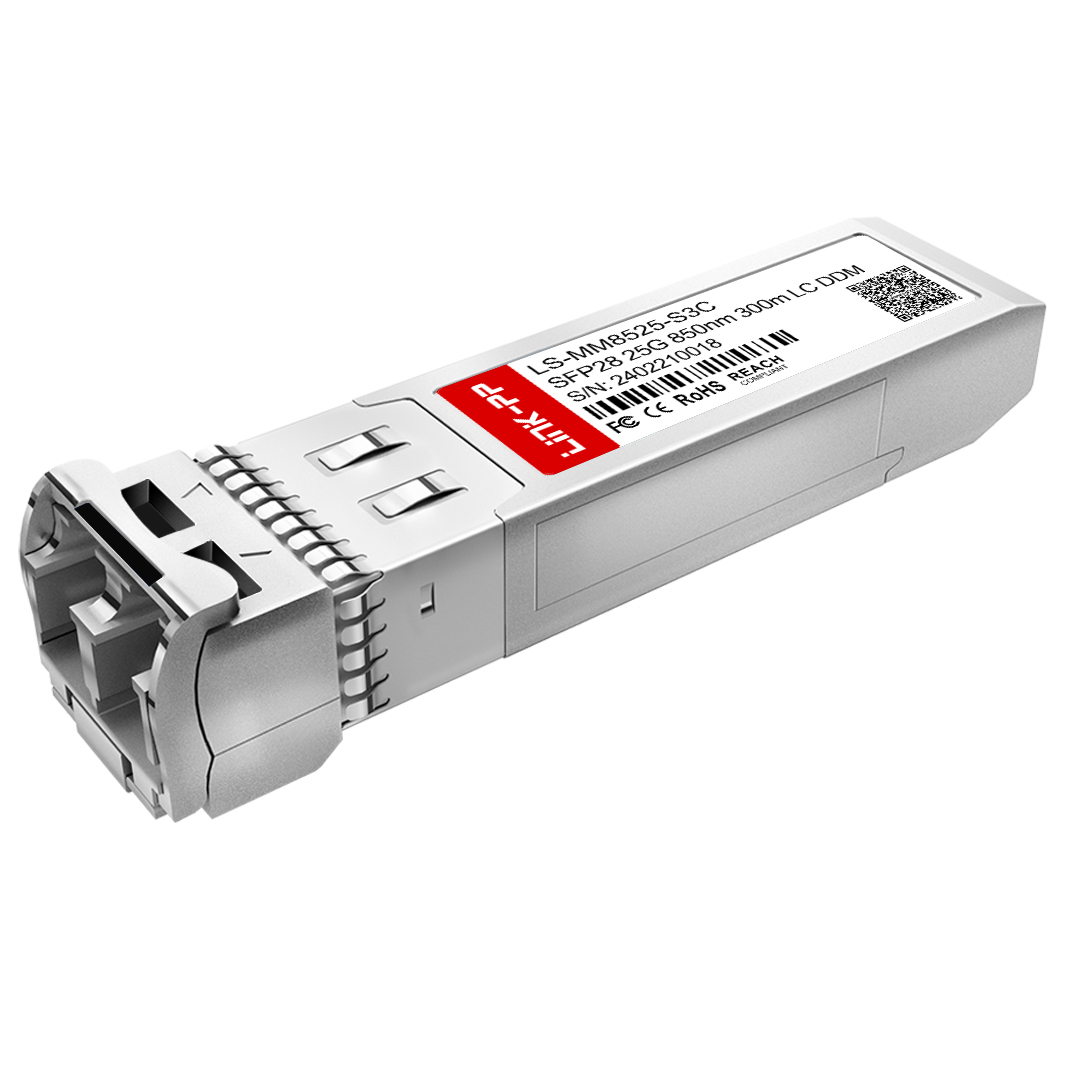

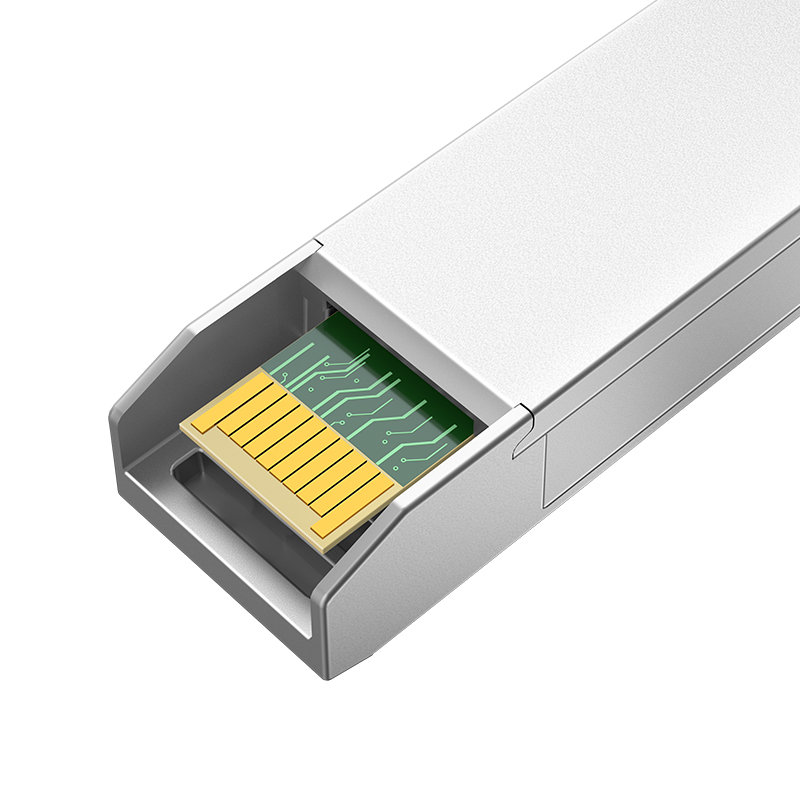

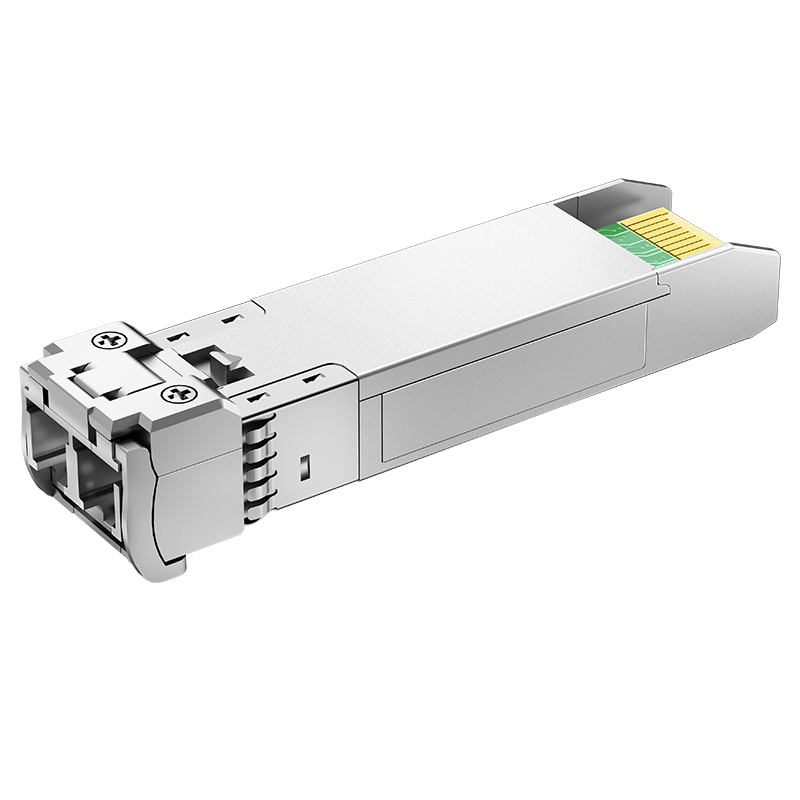

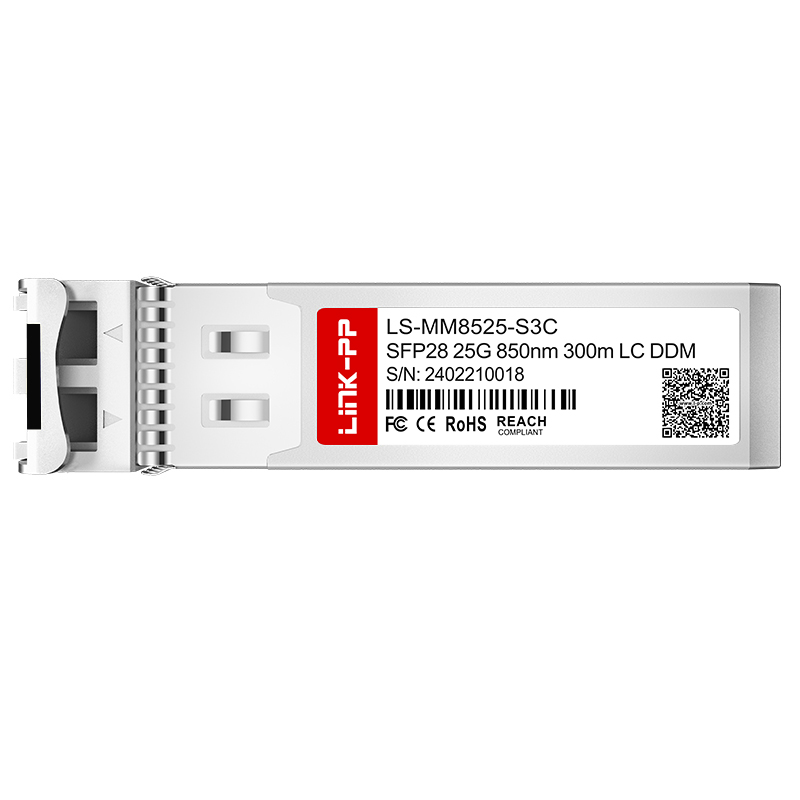

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
1 / 5
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Send Inquiry

Product Description

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-MM8525-S3C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 850nm
Max Cable Distance 300m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -6.4~2.4dBm
Receiver Sensitivity <-6dBm
Receiver Overload 2.4dBm
Power Consumption ≤1W
Extinction Ratio 2dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module
Product Range Layout
Product Details
Module Structure
Production Interface
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Broadband Solutions
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems Operations
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Device Connection Showcase
☞ Related Products SFP Cage ☞
SFP Cage Showcase
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments which are imported from abroad.

Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Manufacturing Facility 1
Manufacturing Facility 2
Frequently Asked Questions

1. Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you are responsible for the shipping fee.

3. What is your delivery time?

Products in stock are ready to ship, and mass production orders typically take 15-30 days.

4. What after-sales service do you offer?

We offer a one-year guarantee period along with 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so we can proceed with a detailed discussion regarding your requirements.

6. What is your key advantage?

We have over 19 years of professional production experience in manufacturing industry-grade telecom and networking components.
