Equip-Link
Equip-Link

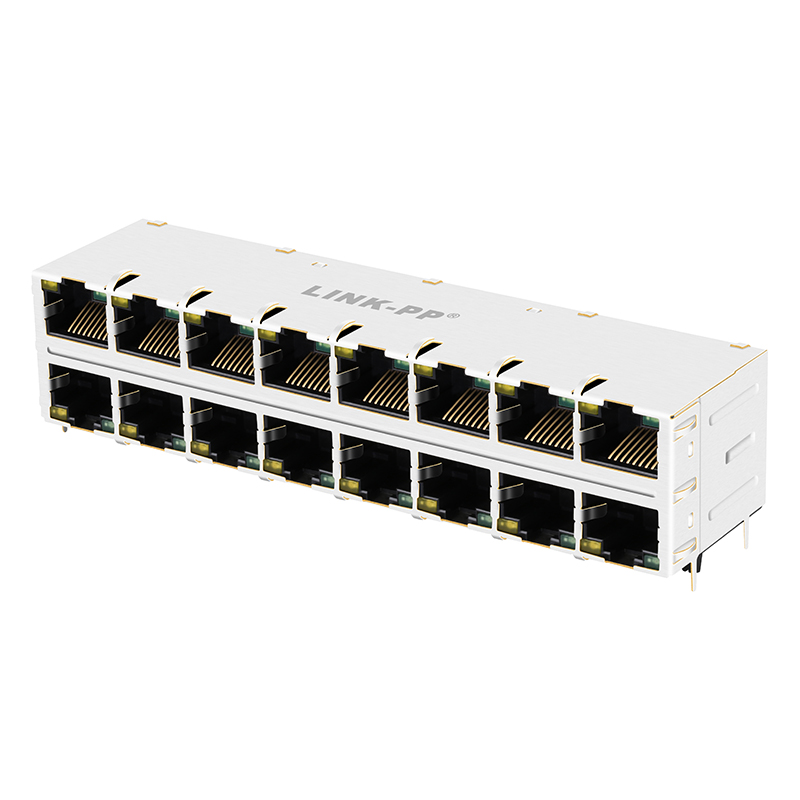

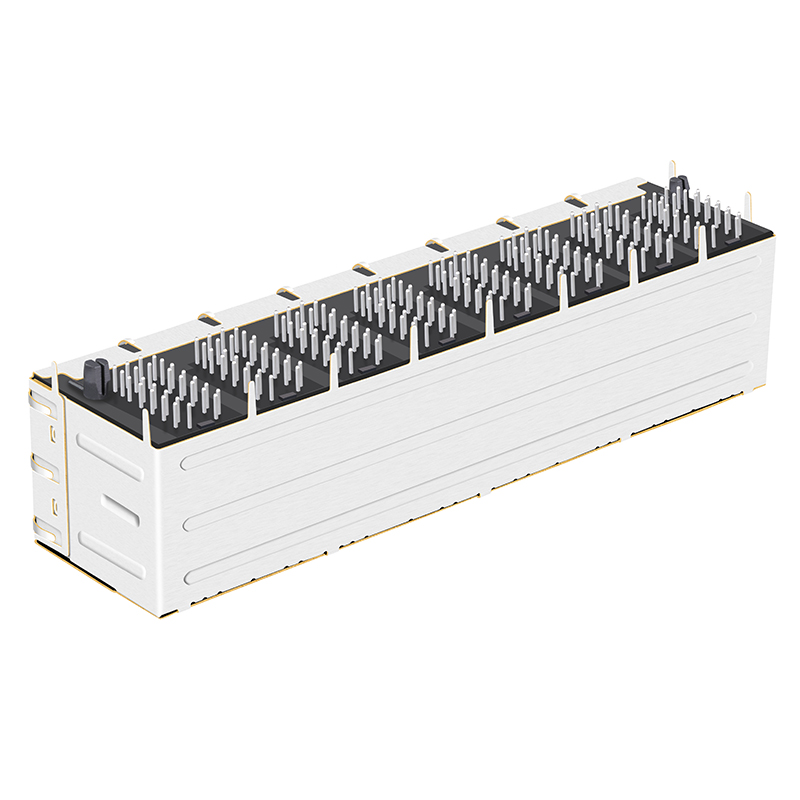

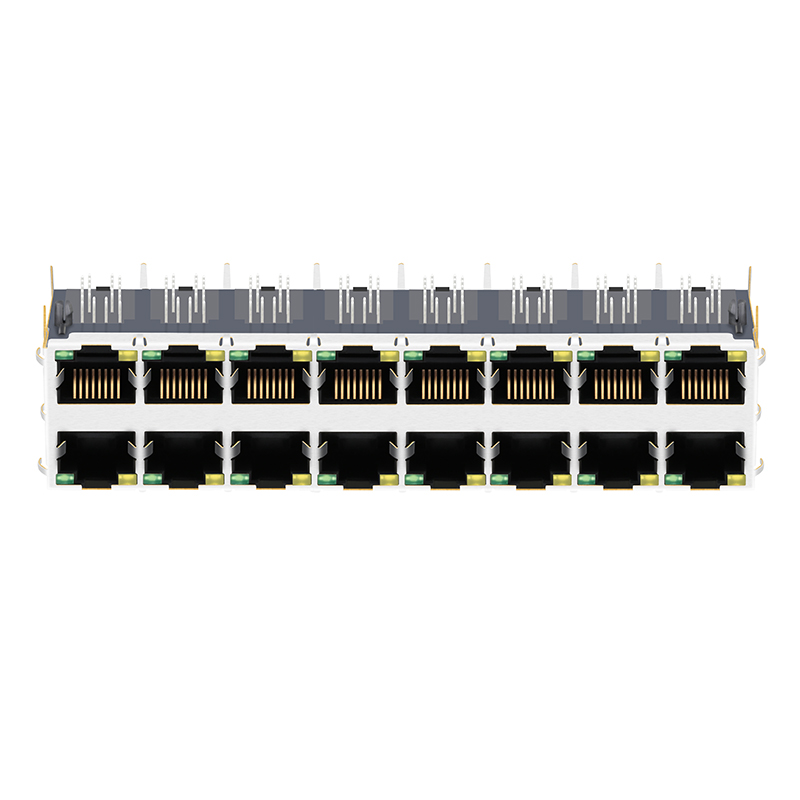

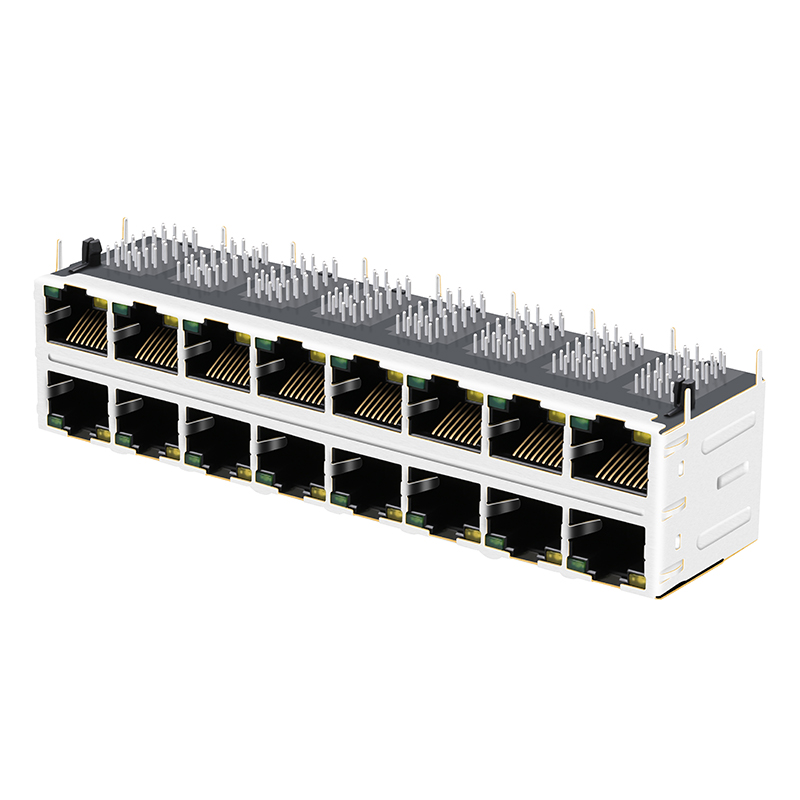

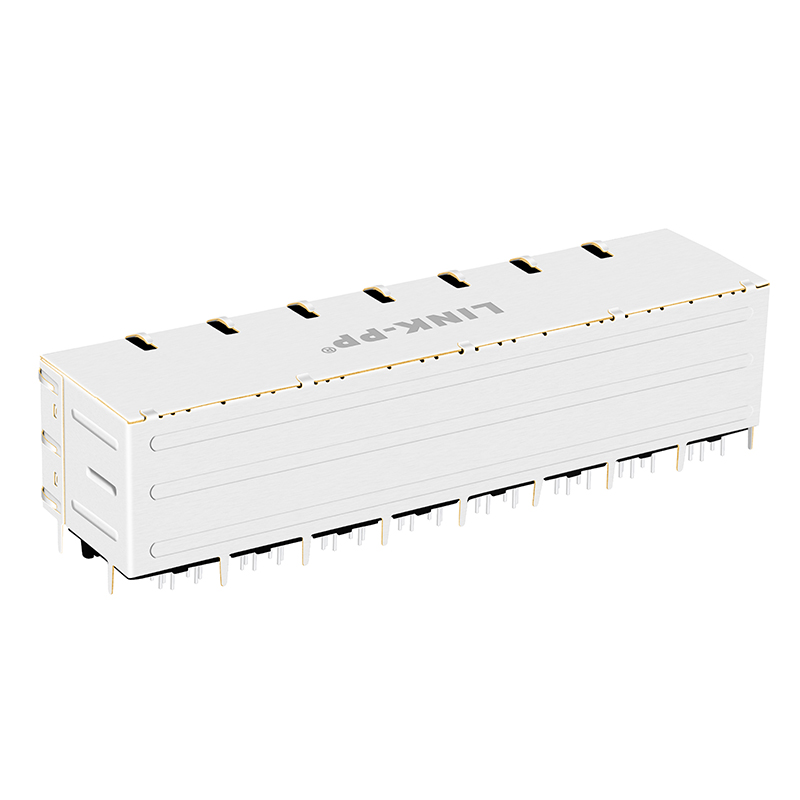

| Part Number | RJ45 connector |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 8 |
| Diodes | NO DIODES |
| LED Option | WITH LEDS |
| Latch | Up/Down |
| Number of Ports | 2x8 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Shield, EMI Finger |
| Speed | 10/100/1000 Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
This connector supports speeds of 10/100/1000 Base-T, making it ideal for Gigabit Ethernet applications.
No, this particular RJ45 connector is specified for Non-PoE Ethernet applications.
The connector is designed to operate reliably within an industrial temperature range of -40°C to 85°C.
Yes, this component comes with built-in LEDs configuration to satisfy system status requirements.
The contact mating area features Gold plating options (available in 6u", 15u", or 30u"). The connector body features robust shielding with EMI fingers for efficient electromagnetic interference protection.
This RJ45 jack uses a side-entry PCB mount angle, designed for THT solder pin type connectivity, and is equipped with a T-post PCB retaining post for secure alignment.
