RM3-1Q6A9V1Q 0843-2B1T-33-F RU8612112DPG 2X1 Port Shielded RJ45 Connector with LEDs

Product Description

Product Showcase

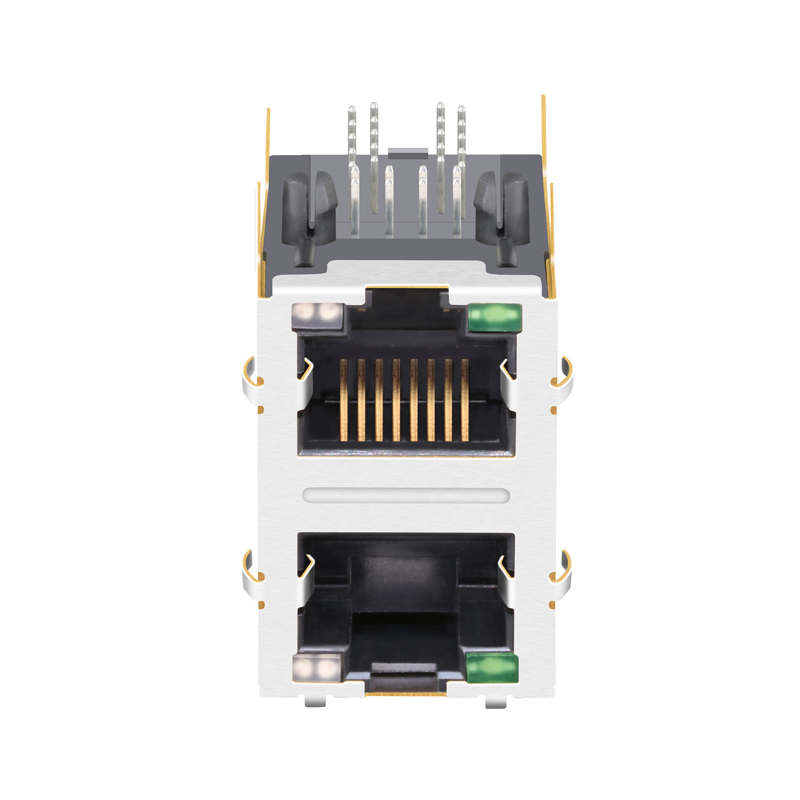

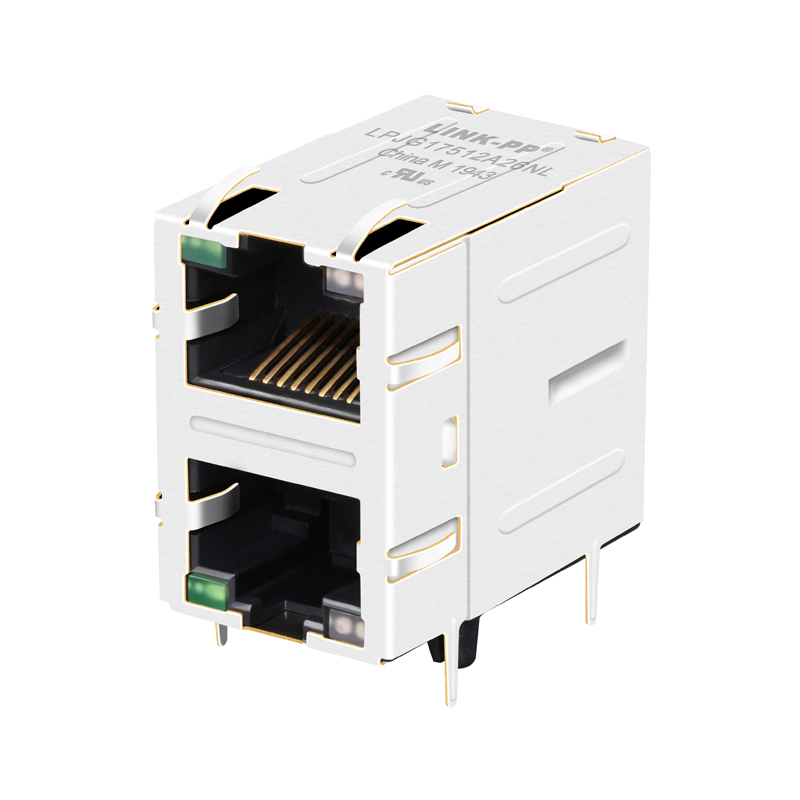

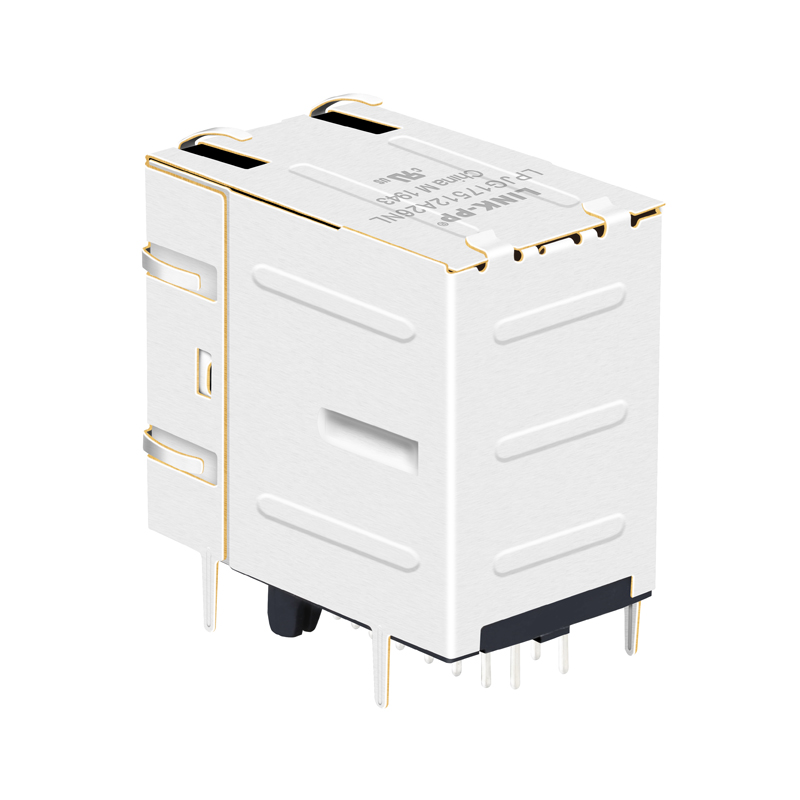

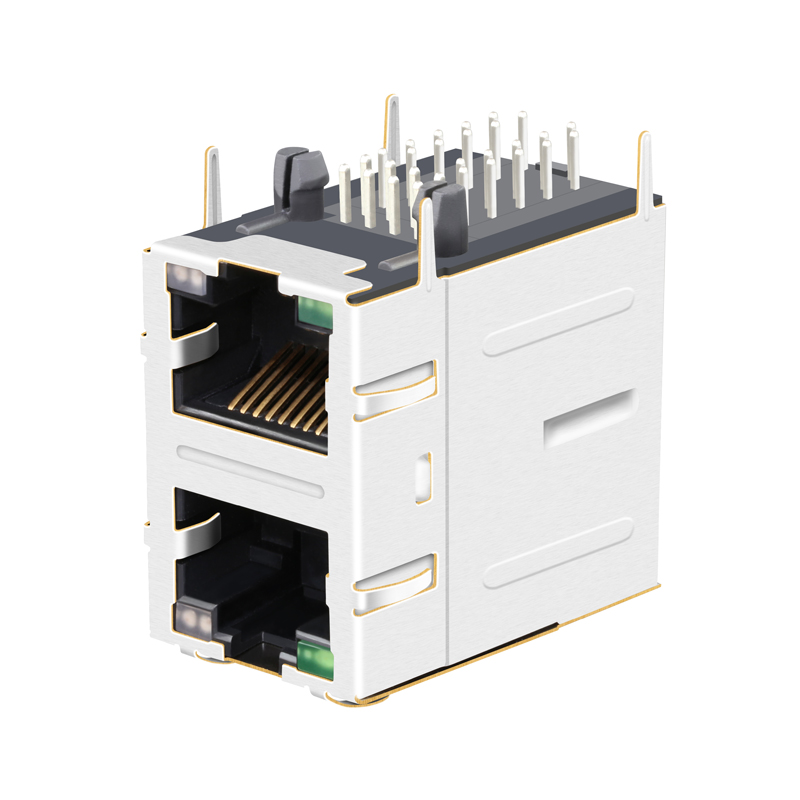

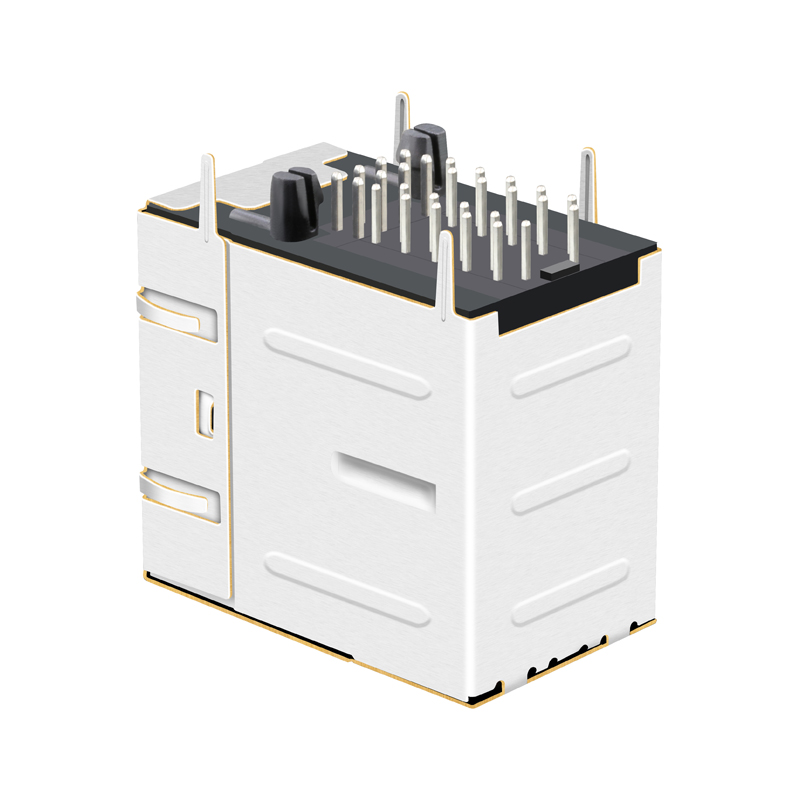

RM3-1Q6A9V1Q 0843-2B1T-33-F RU8612112DPG 2X1 Port Shielded RJ45 Connector with LEDs
Products Description
Product Drawing
Item RJ45 Female Connector
Part Number LPJG17512A26NL
Compatible With RM3-1Q6A9V1Q 0843-2B1T-33-F RU8612112DPG
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 2x1 Port
Speed 1000 Base-T
Latch Down/Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Categories
Dimensions Schematics
PCB Layout Package Details
Production Line Certifications
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer manufacturer.
Manufacturing Equipment Production Facility Trade Show Exhibition
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to pay the shipping fee.
3. What is your delivery time?
Products are ready to ship if in stock, and mass production takes 15-30 days.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send us an inquiry so we can begin a detailed discussion.
6. What is your advantage?
We have 19 years of professional production experience and have partnered with top industry leaders for many years.
