1000BASE-tx Discrete Magnetic Transformer HST-24001SCR / HST-24001SXCR

Product Description

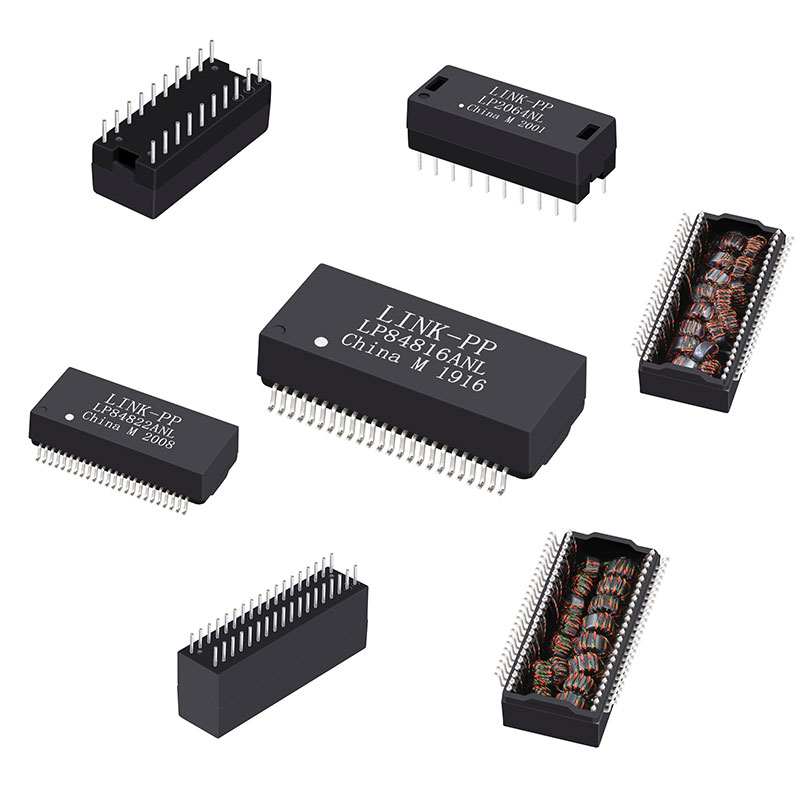

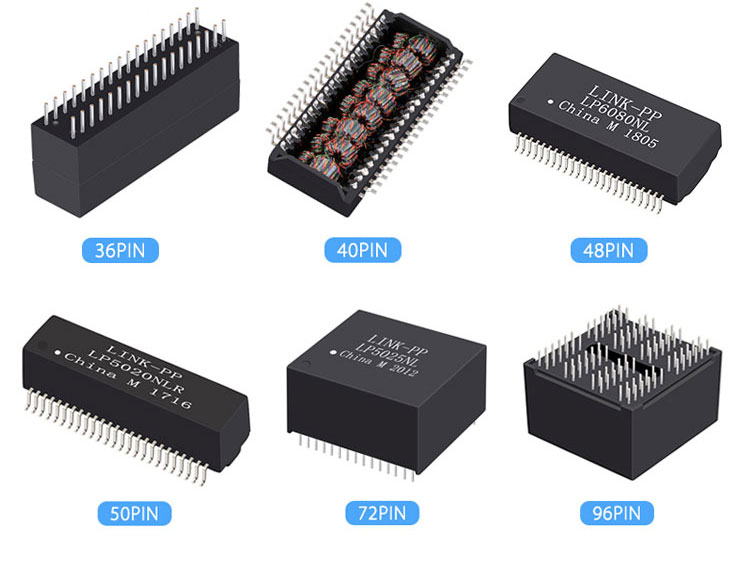

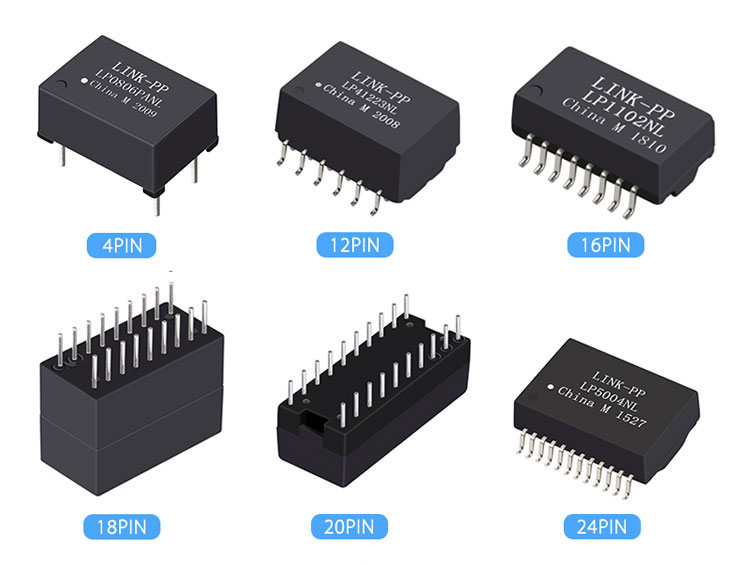

Magnetic Transformer Options
1000BASE-tx Discrete Magnetic Transformer HST-24001SCR / HST-24001SXCR
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24001SCR / HST-24001SXCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Product View 1 Product View 2 Product View 3 Product View 4 Product View 5
Product Specification Diagram 1
Product Specification Diagram 2
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. The company owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short time frame. Moreover, we can provide professional complete solutions for magnetic components and offer strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, covering markets in Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our commitment to higher quality standards will make us your long-term partner.
Manufacturing Facility 1
Manufacturing Facility 2
Testing Equipment
Certifications
FAQ
1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered.

3. What is your delivery time?

Ready to ship for stock items and 15-30 days for mass production orders.

4. What after-service can you offer?

We offer a one-year guarantee period and provide 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so that we can have a detailed discussion regarding your specific requirements.

6. What is your advantage?

We have 19 years of production experience and have been a trusted partner for leading global technology enterprises for many years.
