Equip-Link
| item | Lan Transformer |
| Place of Origin | China |

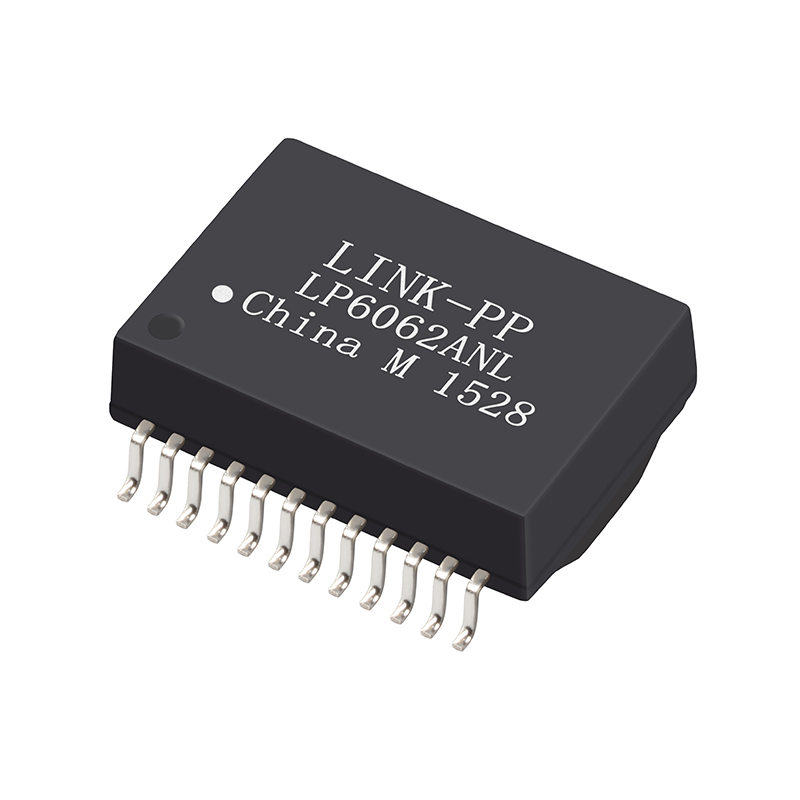

| Part Number: | LP6062ANL |
| Halo Part Number | H6062NL |
| Transformer Type | Lan Transformer |
| Application-Lan | Ethernet(PoE+) |
| Number of Ports | Single Port |
| Speed | 10/100/1000 Base-T |
| Package | Tape & Reel |
| Cores per Port | 8 |
| PIN number | 24 Pin |
| Mounting Type | Surface Mount |
| Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
Send Inquiry To Get Latest Price List
















We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Ready to ship for stock items, and 15-30 days for mass production orders.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your requirements.
We have 19 years of professional production experience in manufacturing magnetic components.
