PoE+ 1000 BASE-T Single Port Network Transformer Modules LP6096ANL

Product Description

PoE+ 1000 BASE-T Single Port Network Transformer Modules LP6096ANL
Single Port Network Transformer Modules
Products Description
Item Lan Transformer
Replaceable Brand Model LP6096ANL
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-t
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0℃ To 70℃ / -40℃ To 85℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel

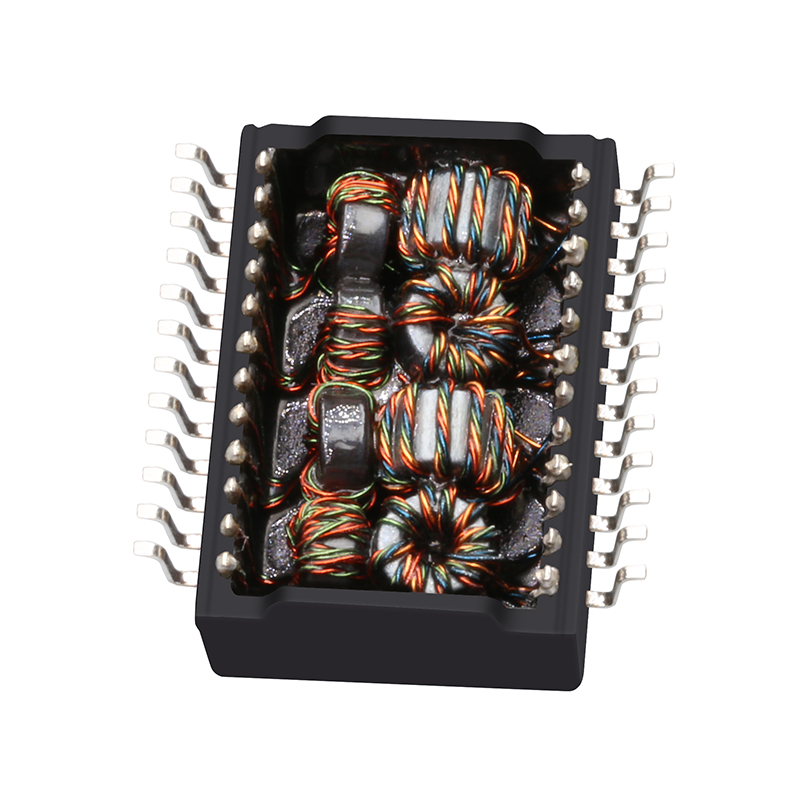

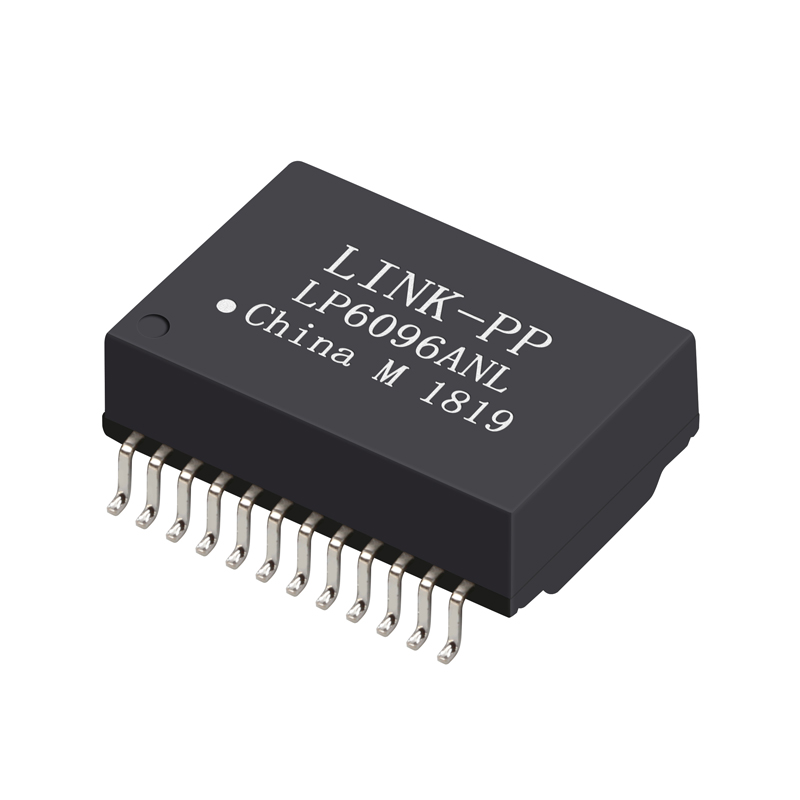

Component Image 1
Component Image 2
Component Image 3
Component Image 4
Component Image 5
Lan Transformer Specifications Diagram
Transformer Dimensional Drawing
Why Choose Us
Manufacturing Strengths
Quality Management
Precision Testing
Certificates and Approvals
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our faith of pursuing higher standards will convince you to be our long-term partner.
Production Factory Facility
Automated Manufacturing Line
Testing and Verification Lab
Logistics and Warehousing
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are expected to cover the shipping cost.
What is your delivery time?
For items in stock, they are ready to ship immediately; for mass production, delivery takes approximately 15-30 days.
What after-service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us with your requirements so that we can discuss the details.
What is your core advantage?
We have 19 years of professional production experience and have partnered with leading global technology and electronics companies for many years.
