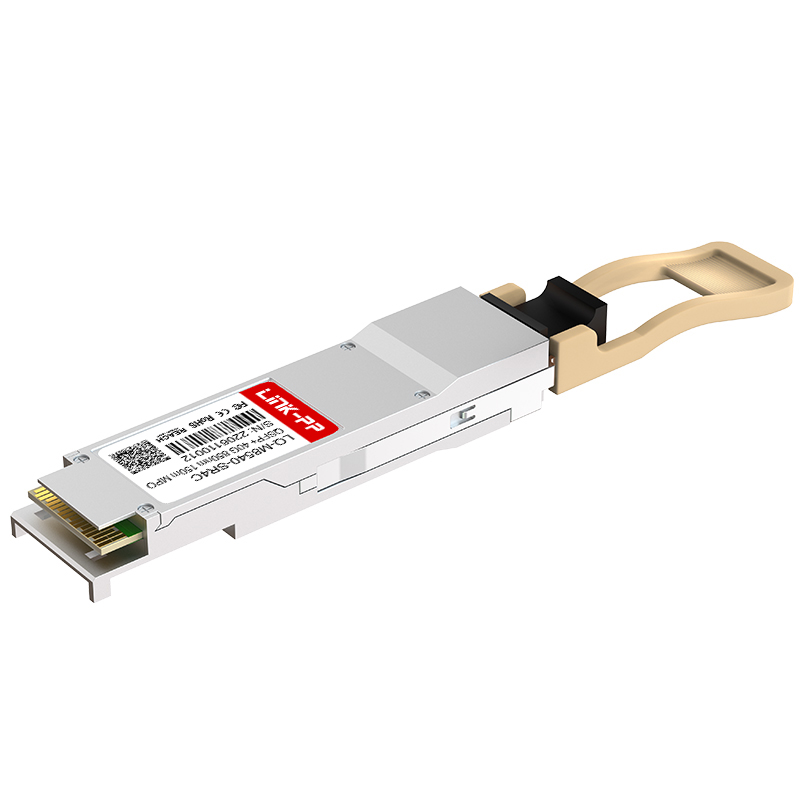

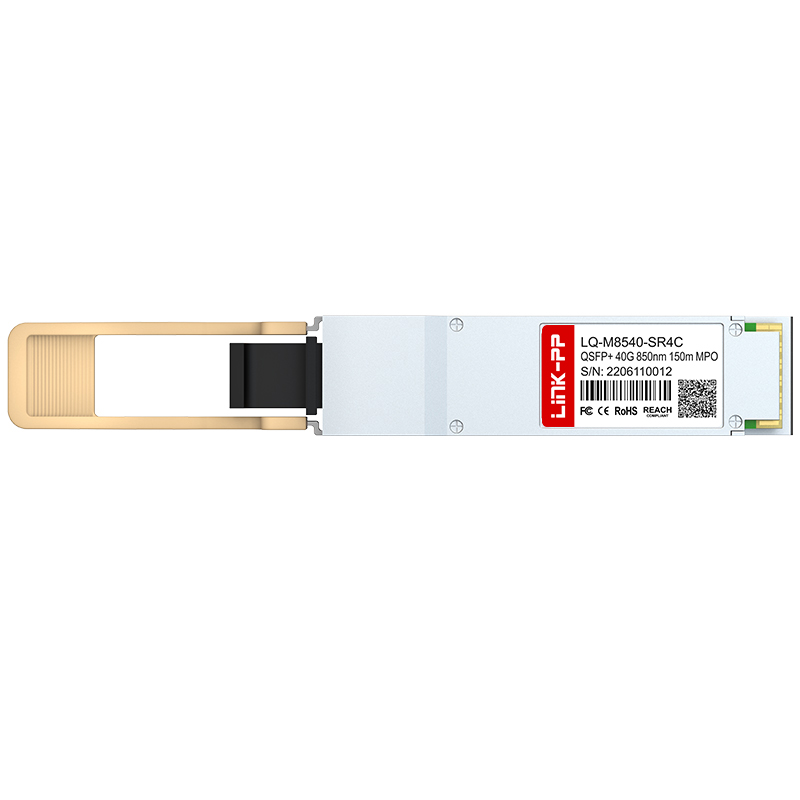

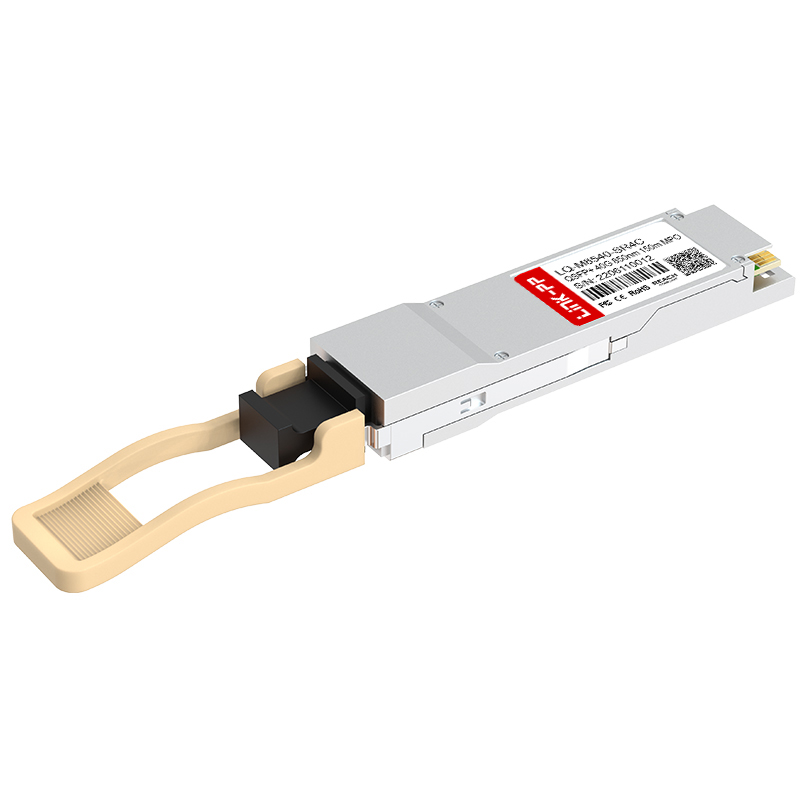

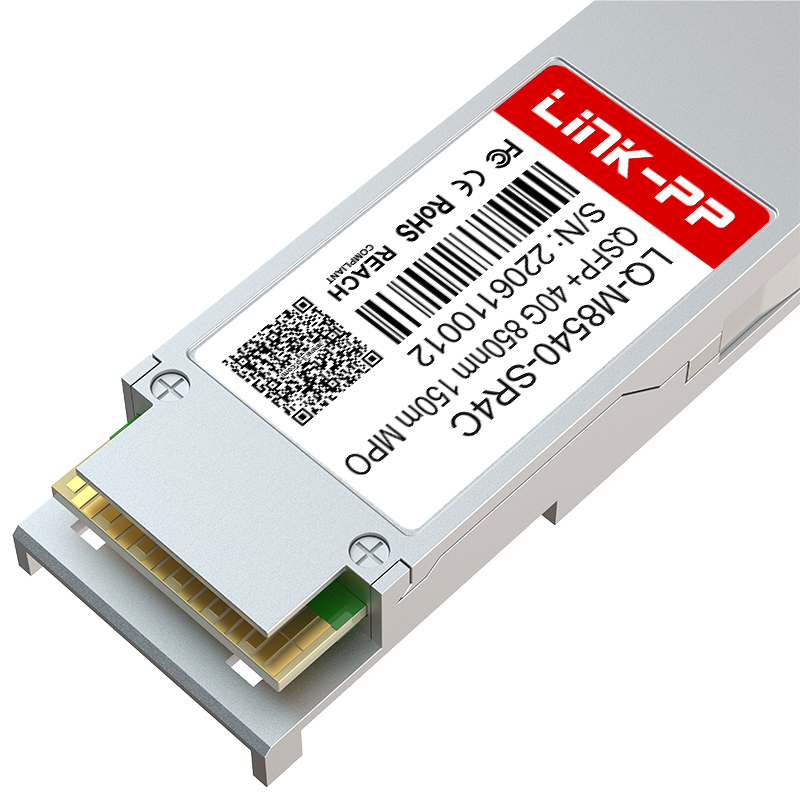

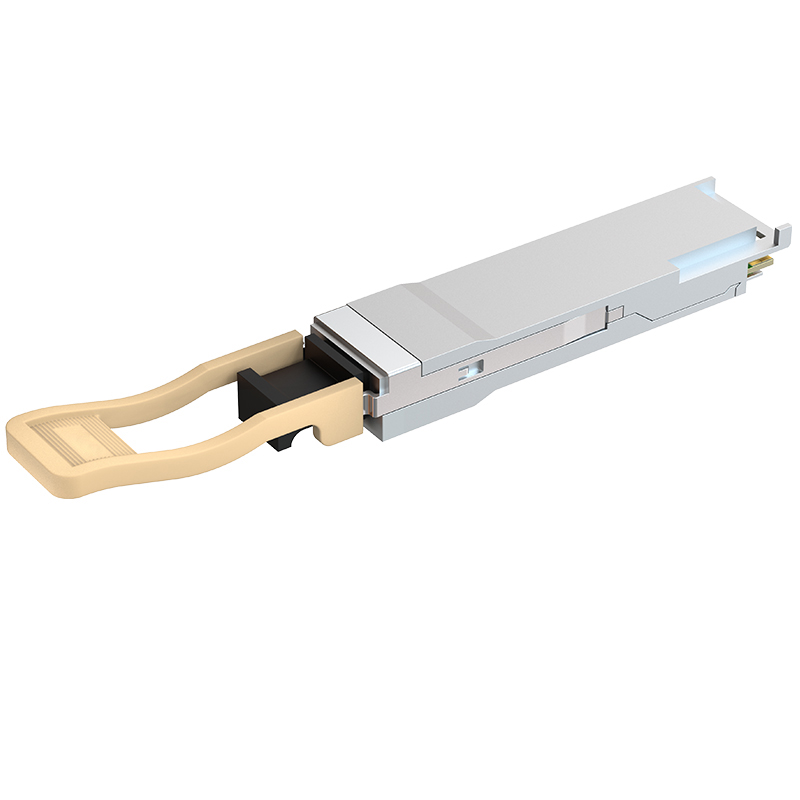

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
Products Description
| Item |
40G Optical Modules |
| Replaceable Part |
Cisco, HW, Arista, Juniper, Brocade, Intel, etc |
| Part Status |
Active |
| Form Factor |
QSFP+ |
| Max Data Rate |
41.25Gbps (4x 10.3125Gbps) |
| Wavelength |
850nm |
| Max Cable Distance |
150m@OM4/100m@OM3 |
| Media |
MMF |
| Connector |
MTP/MPO-12 Male |
| Optical Component |
VCSEL/PIN |
| TX Power |
-7.1~1.9dBm |
| Receiver Sensitivity |
< -10.3dBm |
| Powerbudget |
3.5dB |
| Receiver Overload |
2.4dBm |
| Power Consumption |
≤1.5W |
| Extinction Ratio |
>3dB |
| DDM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Protocols |
IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty |
5 Years |
| Sample |
Available |
