QSFP+ 40GBASE-SR BiDi 300m Multi Mode Duplex LC Optical Transceiver Module QSFP-40G-SR-BD

Product Description

Fiber Optic Equipment Multi Mode Duplex LC Optical Transceiver Module QSFP-40G-SR-BD
Products Description
Item QSFP-40G-SR-BD
Part Status Active
Form Factor QSFP+
Max Data Rate 40Gbps
Wavelength 832nm - 918nm
Max Cable Distance 300m@OM3
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -4~5dBm
Receiver Sensitivity <-6dBm
Power Consumption ≤3.5W
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols 40G Ethernet, IEEE802.3ba-2010, MSA Compliant
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solution Overview

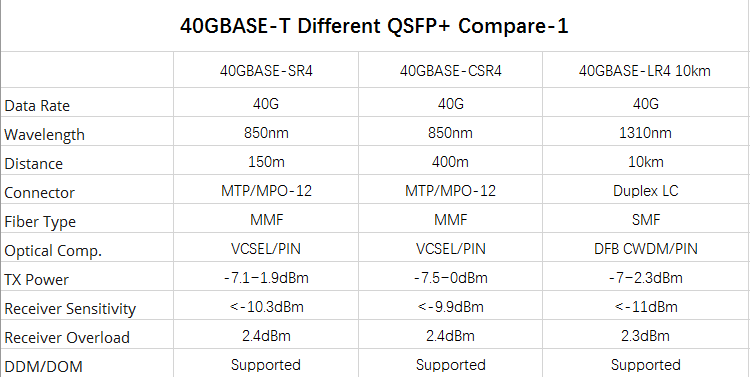

Transceiver Module Specification

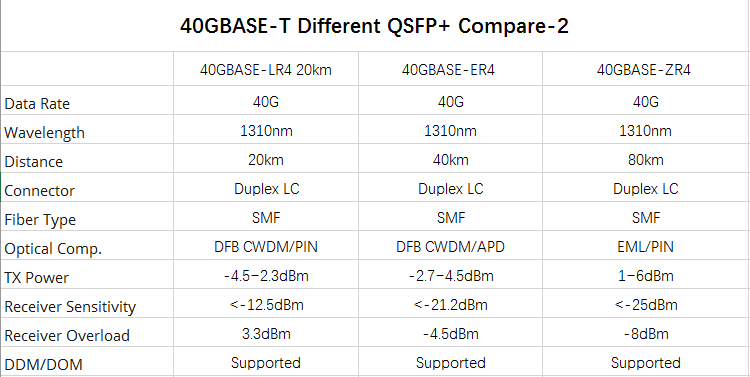

Interface Configuration Details
Product Layout Structure
Optoelectronic Module Selection Guide
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G are developed, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
High reliability and performance products featuring mature, efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting various scenario needs in 4G/5G systems.
FTTx Optical Fiber Access
FTTx
Aimed at global communication network constructors, total FTTx optical fiber access solutions cover all-optical or optical-copper combined access setups and related products.
Optical Subsystems
Subsystems
To ensure the normal operation of communication lines, optical cable O&M solutions integrate an optical line protection system (OLP) and an optical line monitoring system (OLM).
Optical Transceiver Interface
Optical Transceiver Body Display
Related Products SFP Cage
SFP Cage Accessories
Why Choose Us
Quality Management
Advanced Equipment
R&D Capabilities
Global Support
Technical Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, and equipped with advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, our current staff size is around 2000. With an abundant production capacity of 3000K units per month, we ensure rapid delivery timelines.

Moreover, our catalog provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we design, manufacture, and distribute products globally.
Production Facility Setup
Advanced Laboratory Environment
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping costs covered by the buyer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typical lead times range from 15 to 30 days.
What after-service support do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so that we can have a detailed discussion.
What is your core advantage?
We feature 19 years of manufacturing expertise and operate as a trusted partner for major global technology firms.
