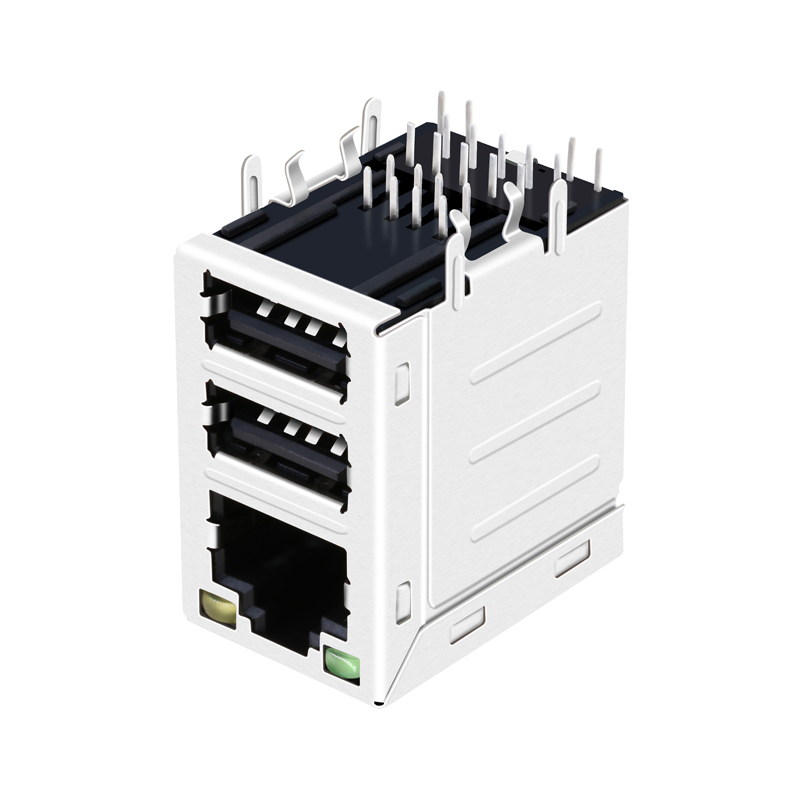

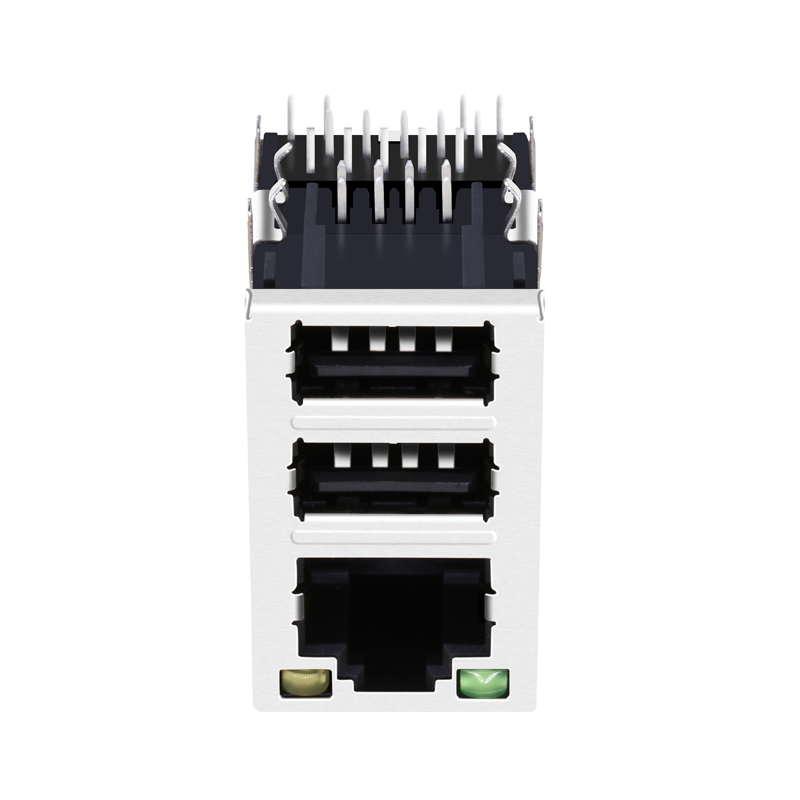

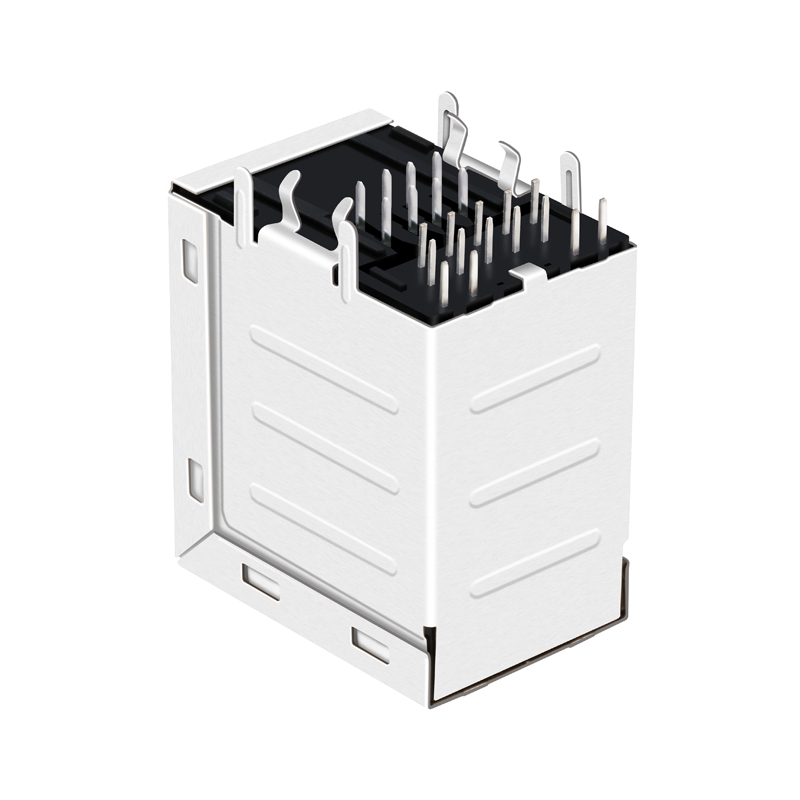

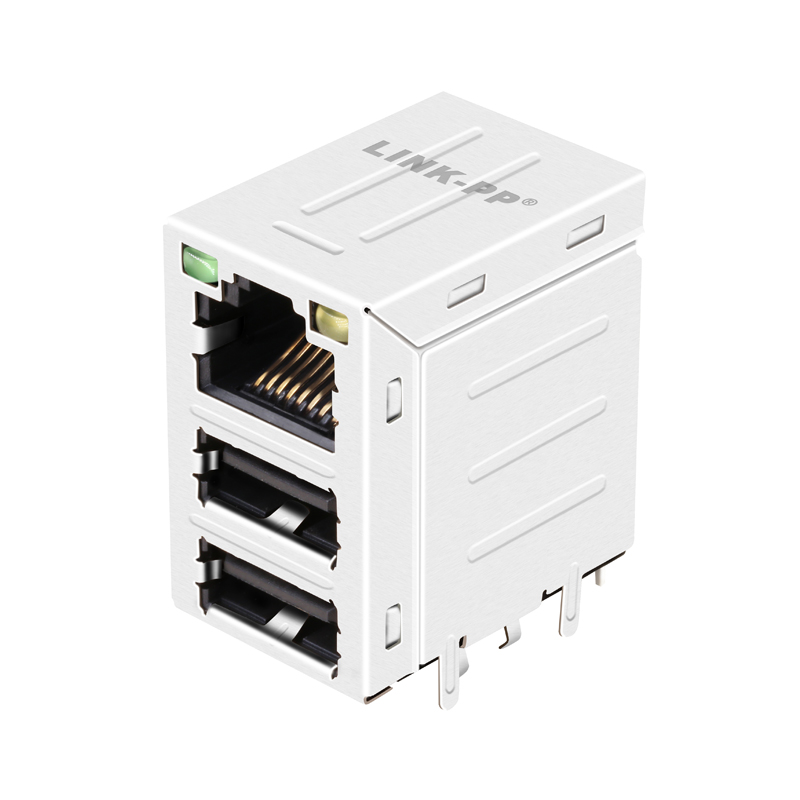

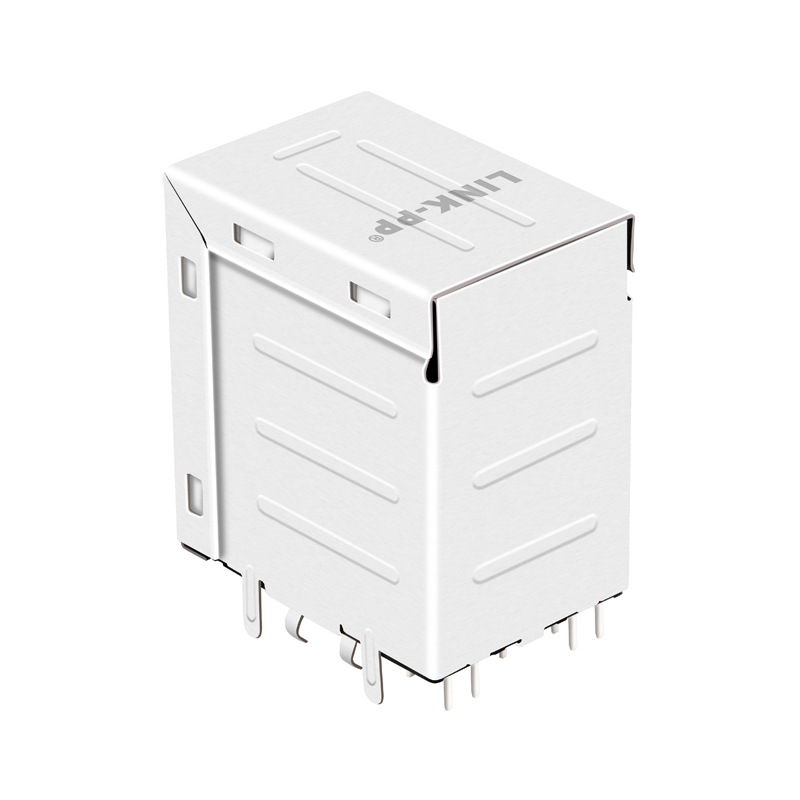

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
1 / 5
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs

Send Inquiry

Product Description

Product Image 1
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector with LEDs
Products Description
Item RJ45 Female Connector
Compatible With 45F-10201DYD2NL 45F-10201DYDXNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Image 2
Product Grid 1 Product Grid 2 Product Grid 3
Product Grid 4 Product Grid 5 Product Grid 6
Product Grid 7 Product Grid 8
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Company Image 1 Company Image 2 Company Image 3
Footer Banner
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are to be covered by the buyer.
Q What is your delivery time?
We have products ready to ship for stock orders, and it takes 15-30 days for mass production.
Q What after-service can you offer?
We offer a one-year guarantee period and can provide technical support online 24 hours a day.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can proceed with a detailed discussion regarding your custom requirements.
Q What is your main advantage?
We have over 19 years of professional production experience and establish long-term partnerships with leading global enterprises.
