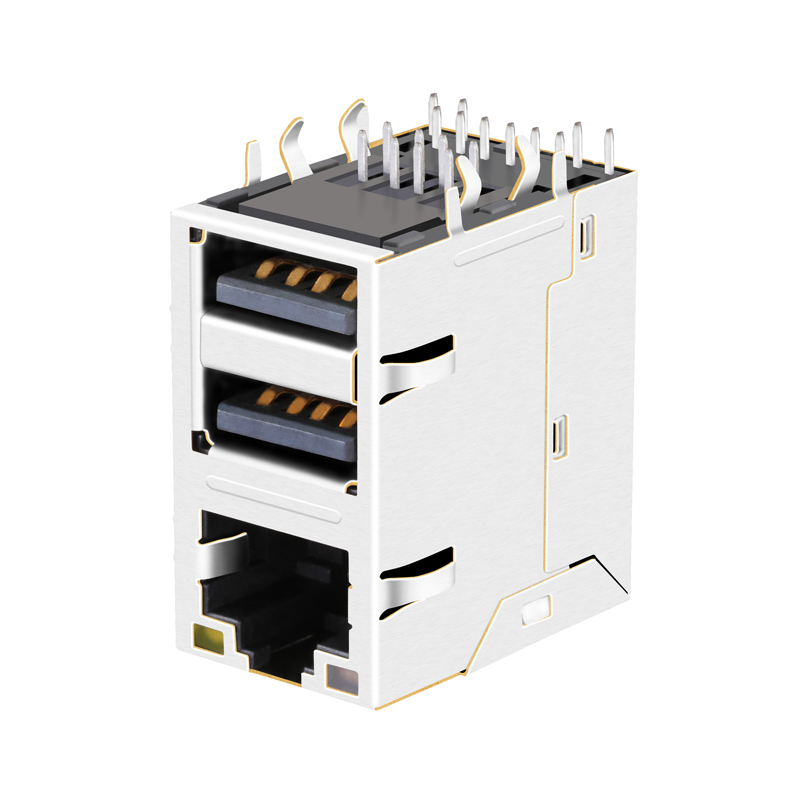

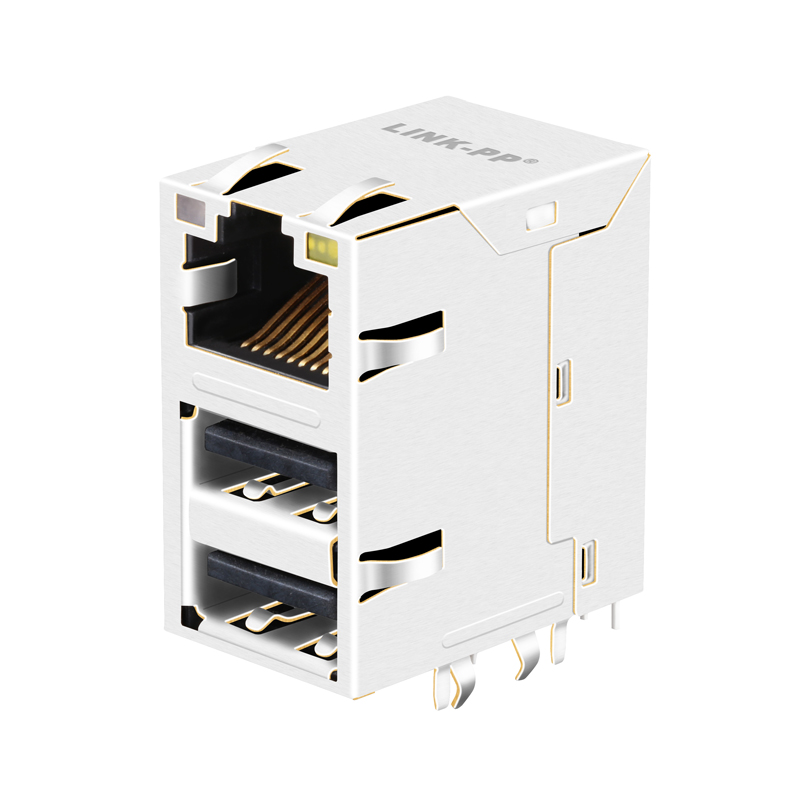

Single Port RJ45 Magnetic Module With Dual USB 0892-1GX1-62

Product Description

Product Categories Overview Lan Transformer Highlight
Send Inquiry To Get Latest Price List
Single Port RJ45 Front View Single Port RJ45 Side View
Single Port RJ45 Magnetic Module With Dual USB 0892-1GX1-62

Products Description

Item RJ45 Female Connector
Part Number 0892-1GX1-62
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

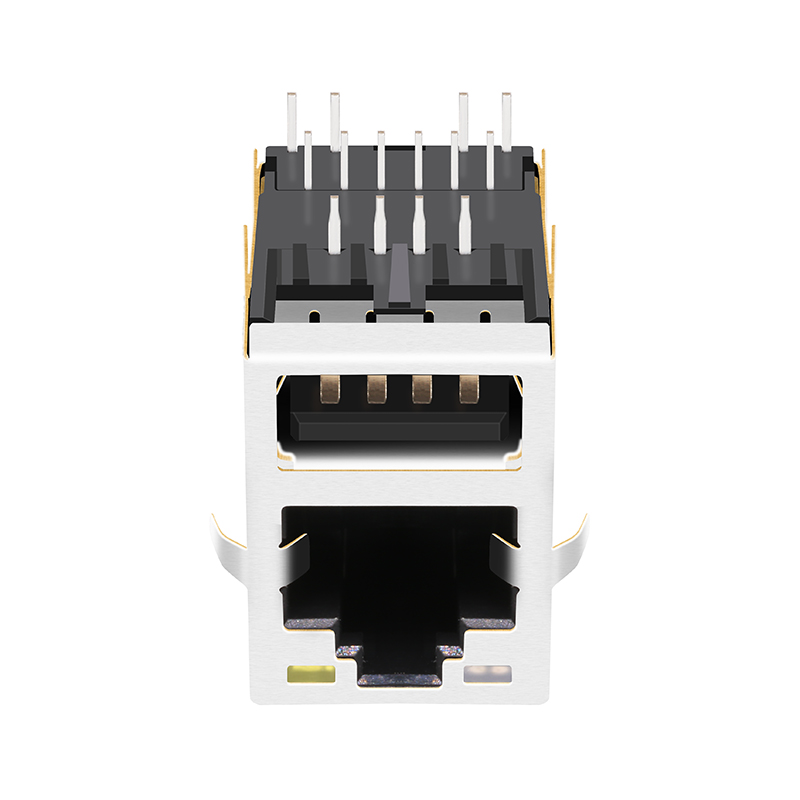

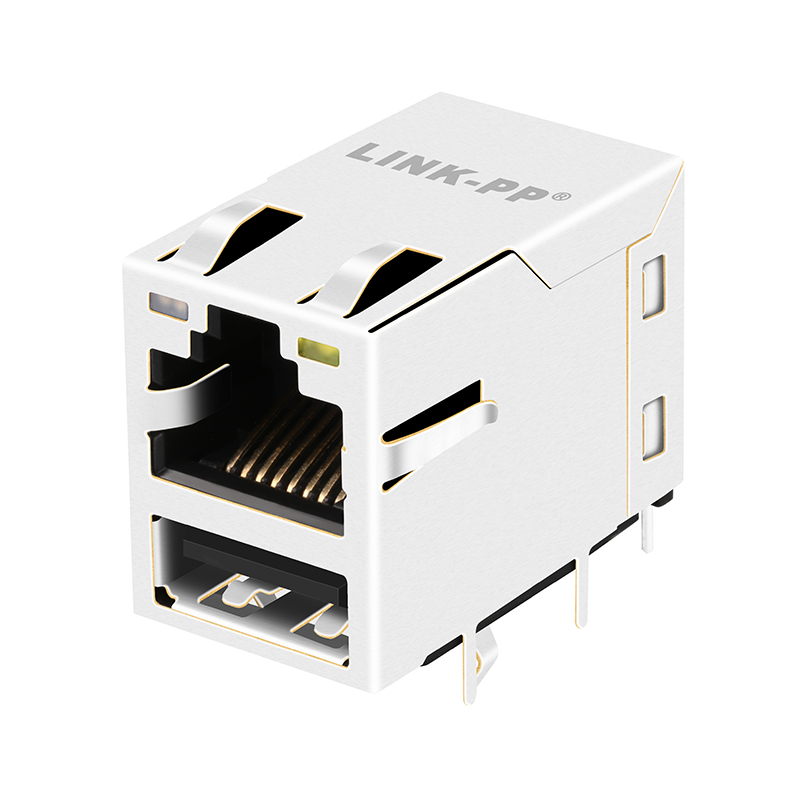

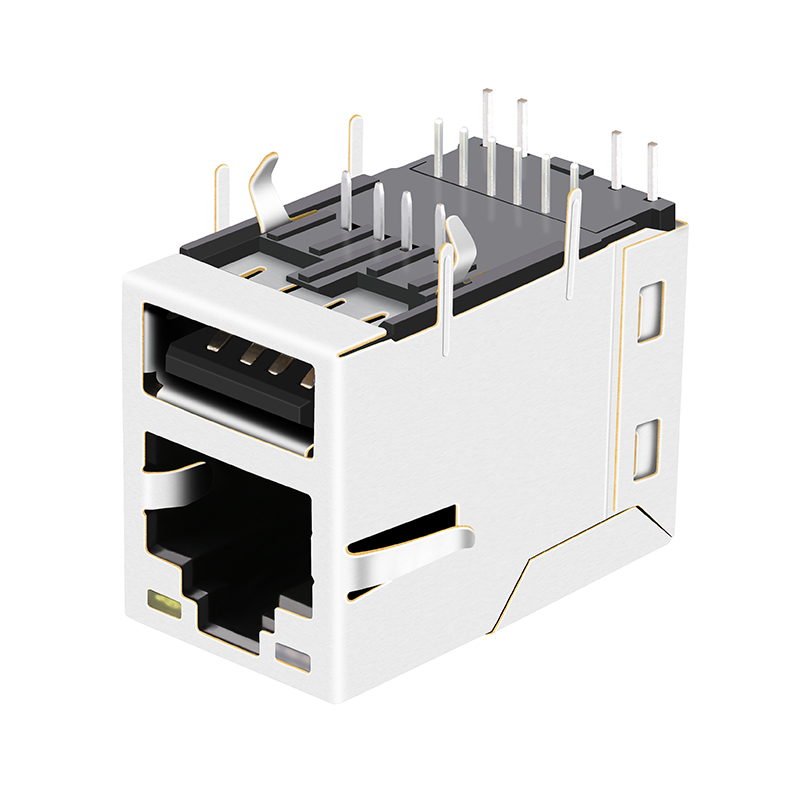

Product Detail View 1 Product Detail View 2 Product Detail View 3 Product Detail View 4 Product Detail View 5 Product Detail View 6 Product Detail View 7
Dimension Diagram

Why Choose Us

Quality Standard Control Advanced Testing Process Production Workflow Factory Certificate Overview

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Production Workshop Floor Assembly Line Process Quality Inspection Workstation Warehouse and Shipping Area

Frequently Asked Questions

1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN pulse transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for paying the shipping fee.
3. What is your delivery time?
We are ready to ship immediately for stock items, and it takes 15 to 30 days for new mass production orders.
4. What after-service can you offer?
We provide a one-year guarantee period along with online technical support available 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please submit your inquiry so we can establish a detailed discussion regarding your custom specifications.
6. What is your advantage?
We possess 19 years of professional production experience and have maintained long-term partnerships with leading global technology brands.
