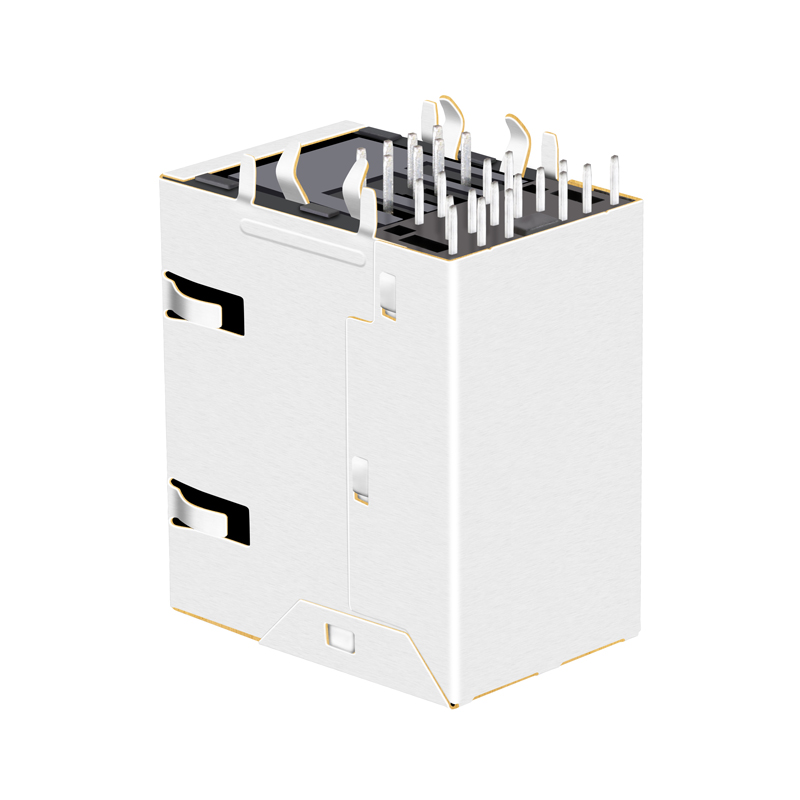

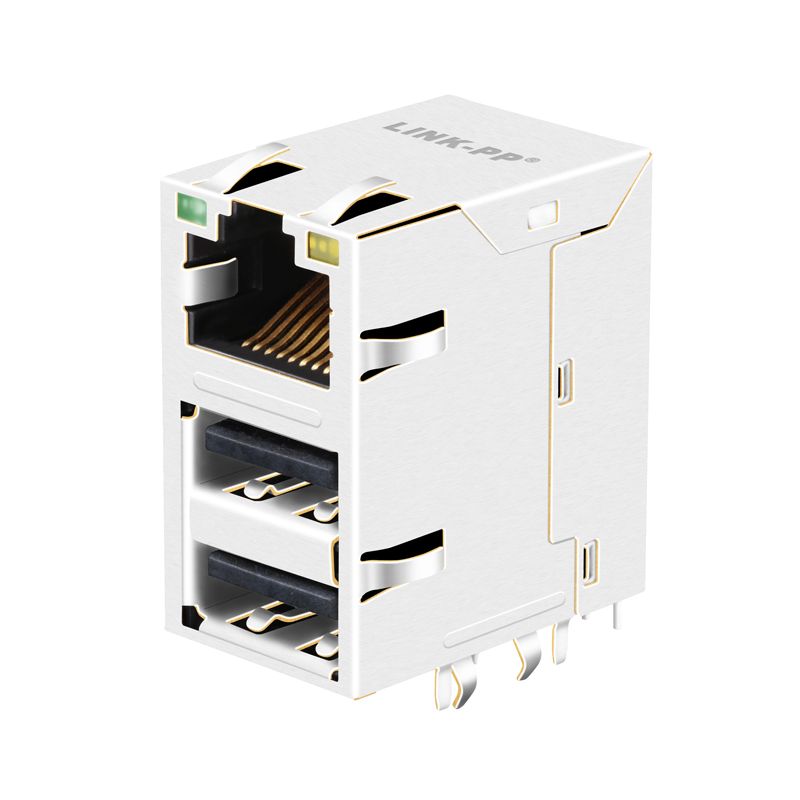

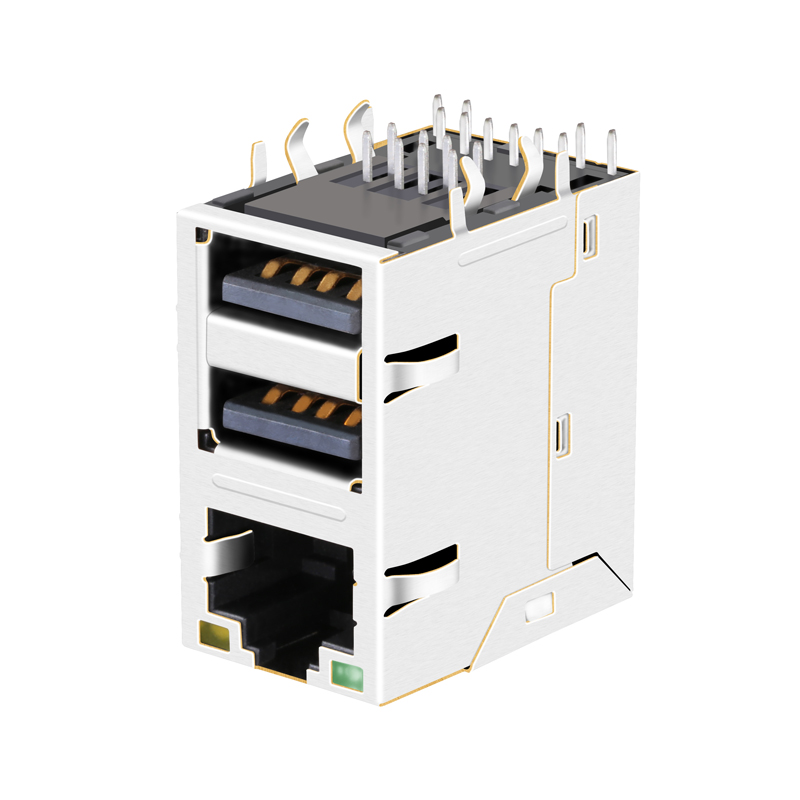

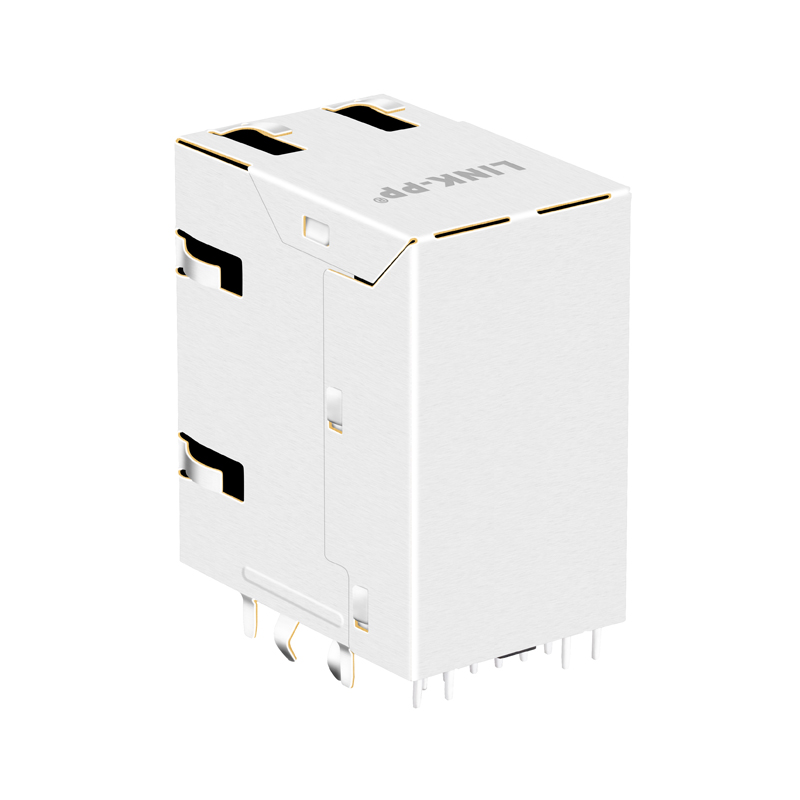

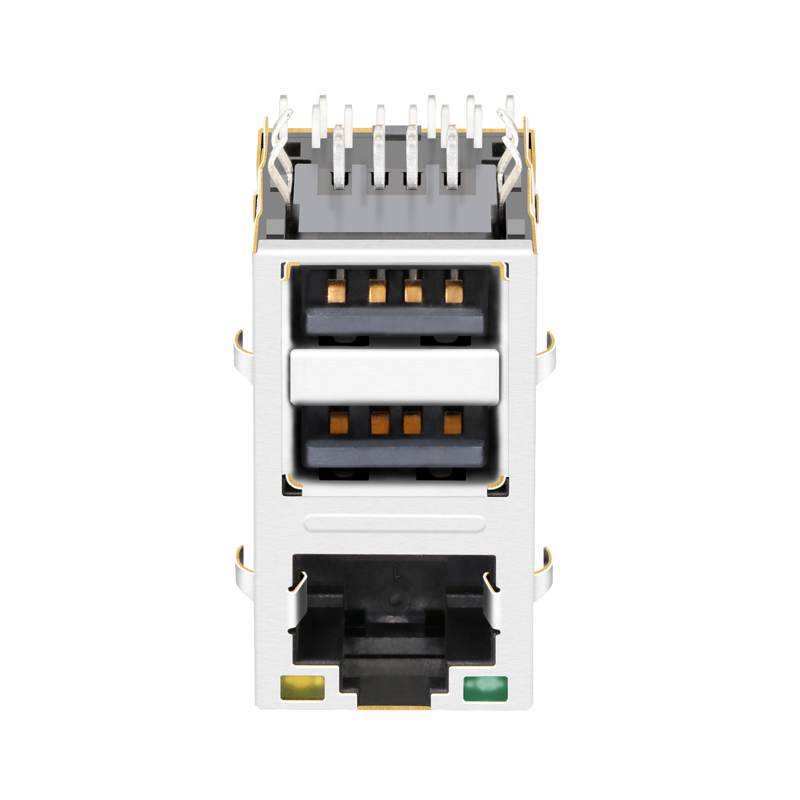

xmm-9714-8813-s3lj-m-im Single Port RJ45 Modular Jack Connector With USB

Product Description

RJ45 Female Connector Product Range
xmm-9714-8813-s3lj-m-im Single Port RJ45 Modular Jack Connector With USB
Products Description
Item RJ45 Female Connector
Compatible With xmm-9714-8813-s3lj-m-im
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Diagram
View Our Wide Range of Specialized Connectors Below
Modular Jack Categories
Product Quality Standards
Production Process
Testing Equipment
Packaging & Delivery
Automated Manufacturing
Warehouse Storage
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Overview
R&D Lab
Production Line
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will be covered by the client.
3 What is your delivery time?
Ready to ship for stock items and 15-30 days for customized mass production.
4 What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5 Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please contact us directly for detailed customization discussions.
6 What is your advantage?
We bring over 19 years of dedicated production experience, coupled with long-term partnerships with leading global technology corporations.
