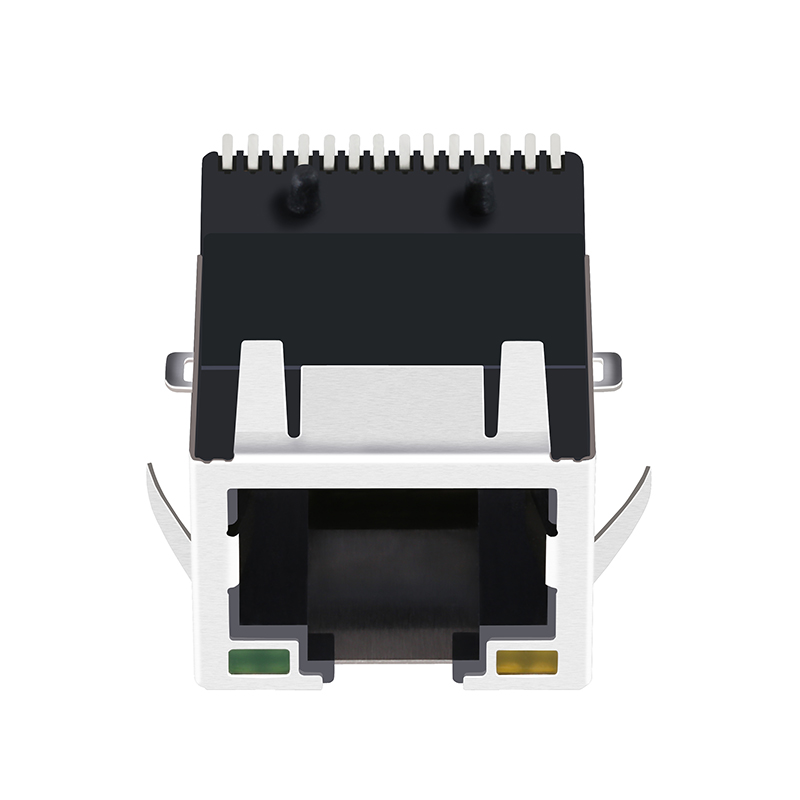

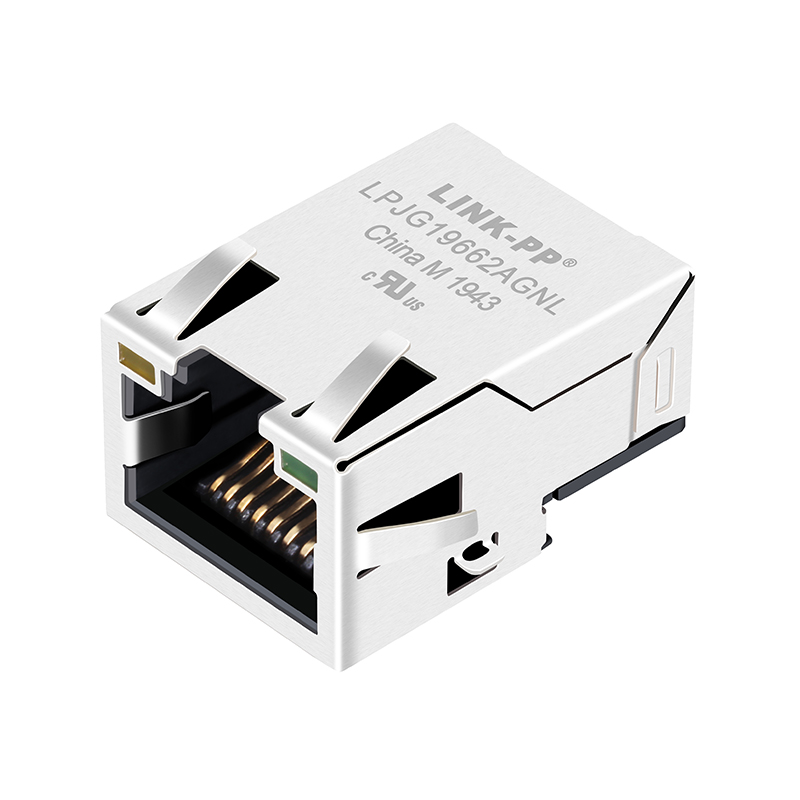

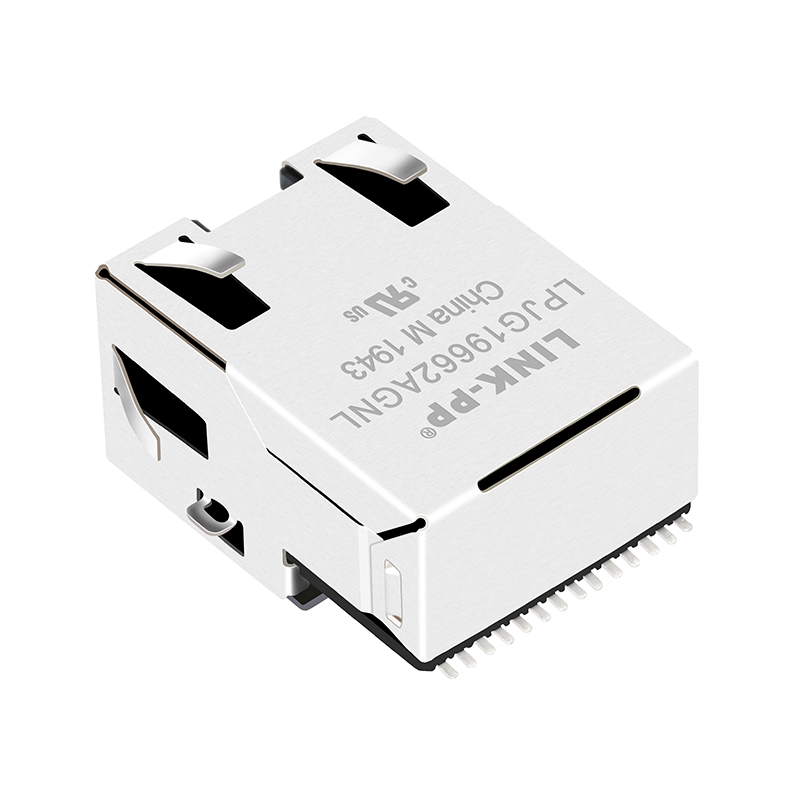

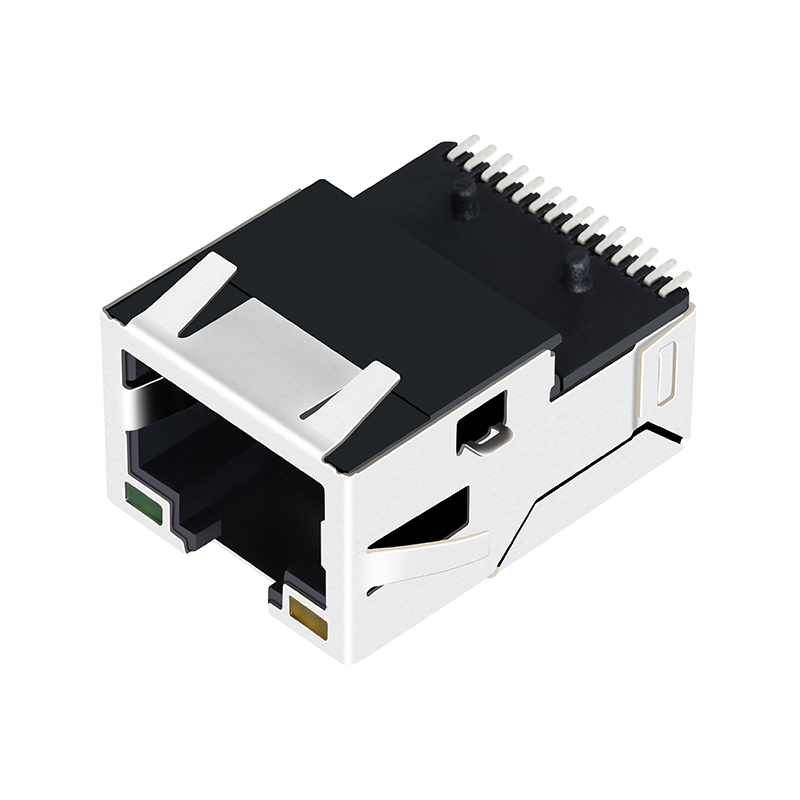

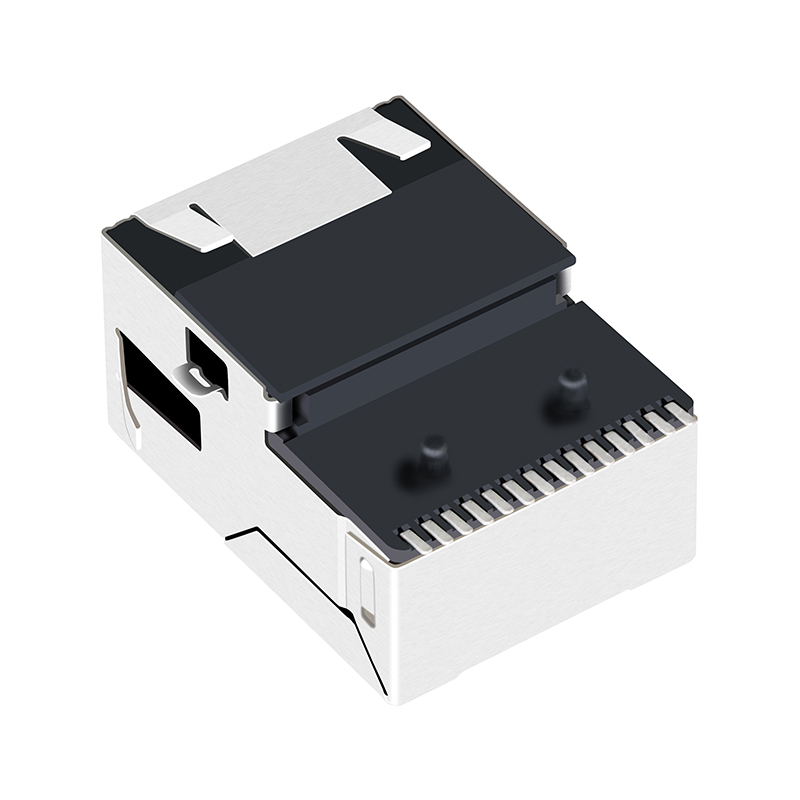

7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
1 / 5
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds

7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds

Send Inquiry

Product Description

7498111120 Tab Up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
Magnetic Ethernet Female SMT RJ45 Jack Overview
Products Description
Item RJ45 Female Connector
Part Number LPJG19662AGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 180° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 SMT Connector Detail 1
RJ45 SMT Connector Detail 2
RJ45 SMT Connector Detail 3
RJ45 SMT Connector Detail 4
RJ45 Connector Category Diagram
Production Capabilities Overview
Quality Standard Control
Testing Equipment Setup
Laboratory Infrastructure
Inventory and Warehouse System
Global Supply Network
Application Environments
Advanced Manufacturing Facility
Industry Certifications
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping fees are to be covered by the customer.
What is your delivery time?
Items currently in stock are ready to ship. For mass production, the standard delivery time is 15-30 days.
What after-sales service do you offer?
We provide a one-year warranty period alongside 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so we can proceed with a detailed technical discussion.
What is your key advantage?
We bring over 19 years of dedicated production experience and have partnered with major global technology brands for many years.
