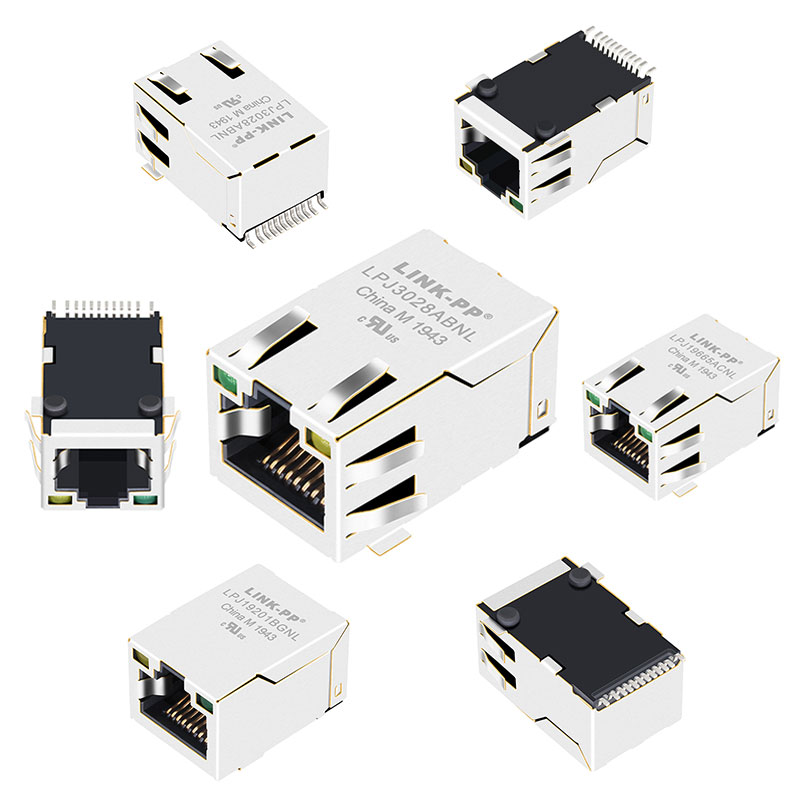

Surface Mount 10 Pin 16 Pin SMT Magnetic Led Pcb Rj45 Female Connector Jack

1 / 5

Surface Mount 10 Pin 16 Pin SMT Magnetic Led Pcb Rj45 Female Connector Jack

Send Inquiry

Product Description

Surface Mount 10 Pin 16 Pin SMT Magnetic Led Pcb Rj45 Femal Connector Jack

Products Description

Item	RJ45 Female Connector
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SMT
Shield EMI Tabs	Without/With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

⚙️

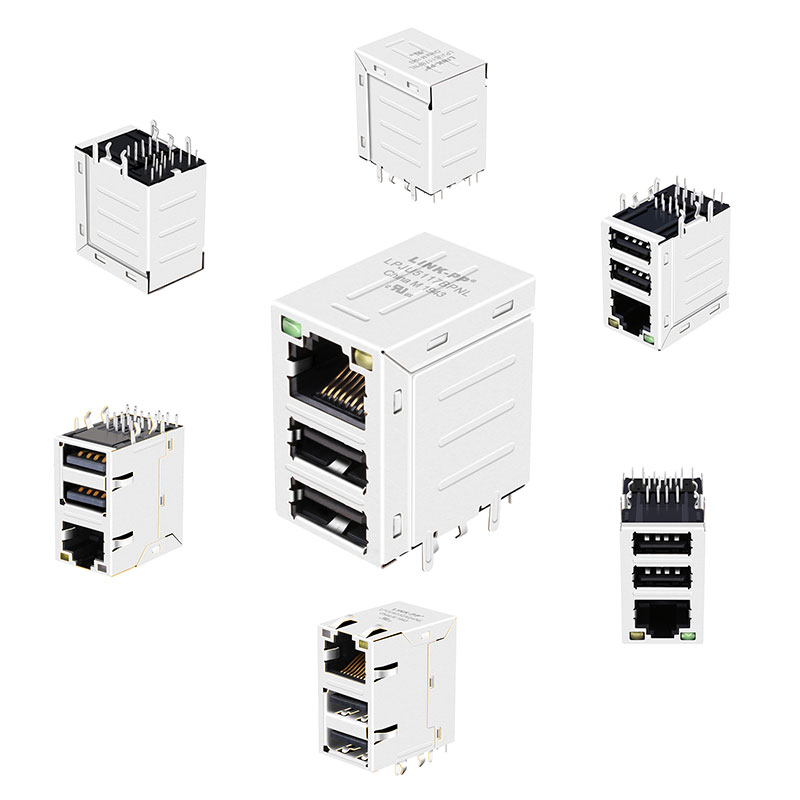

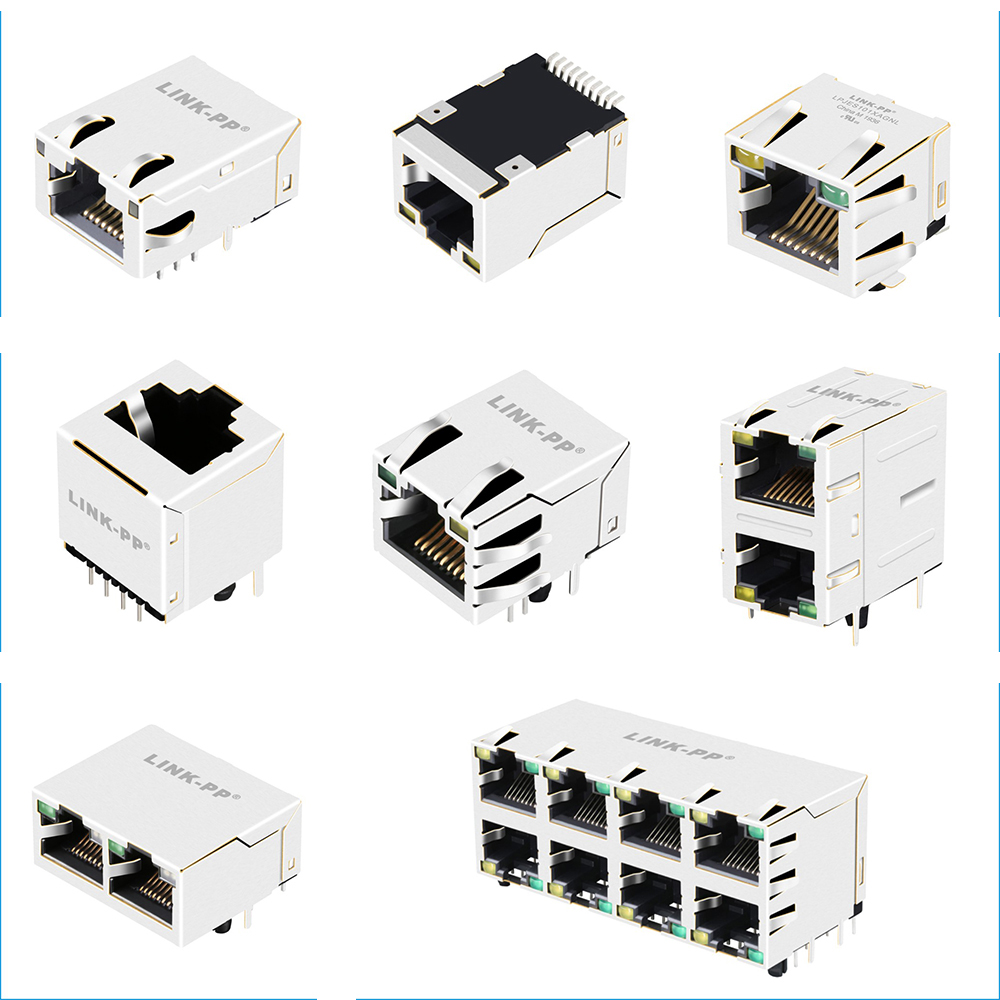

Explore More Product Solutions Below

FAQ

❓ Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

❓ Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the buyer.

❓ What is your delivery time?

Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.

❓ What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

❓ Can you accept OEM/ODM orders?

Yes, we support custom OEM and ODM orders. Please send your requirements to us for a detailed discussion.

❓ What is your advantage?

We have 19 years of professional production experience and have been a trusted partner for global industry leaders like Intel and Jabil for many years.
