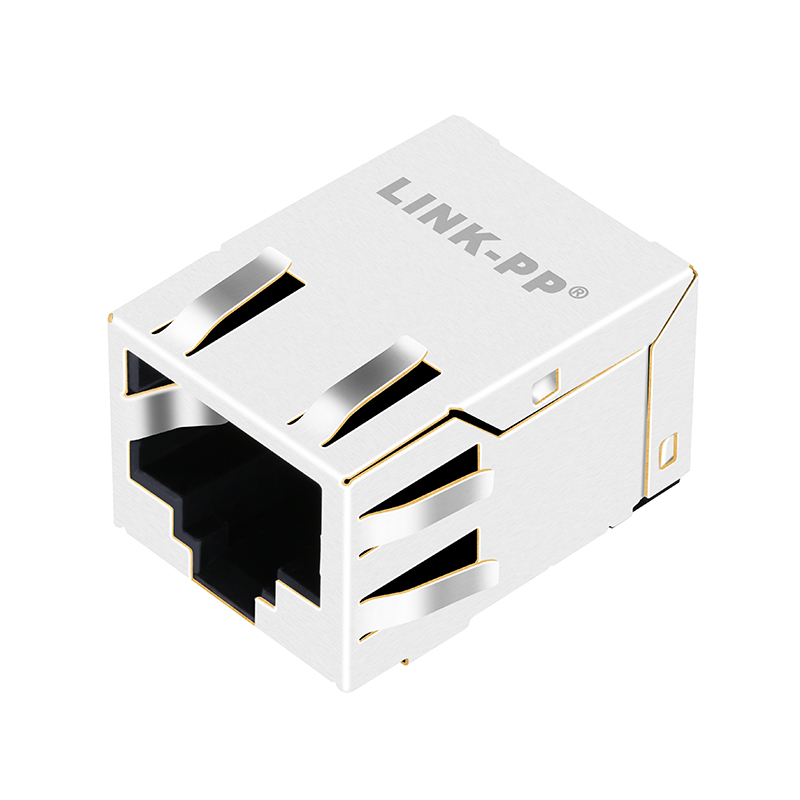

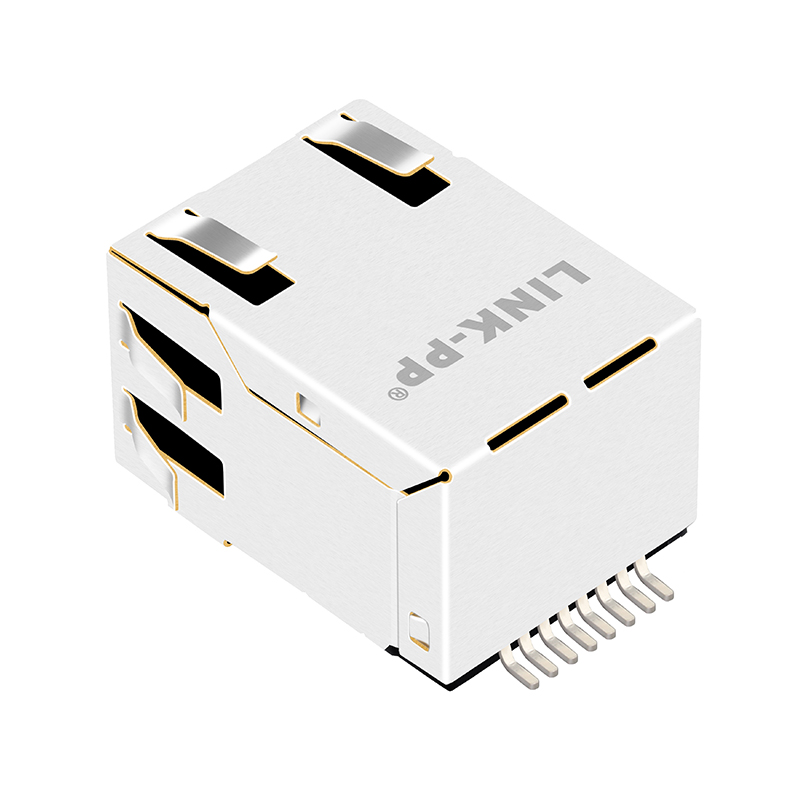

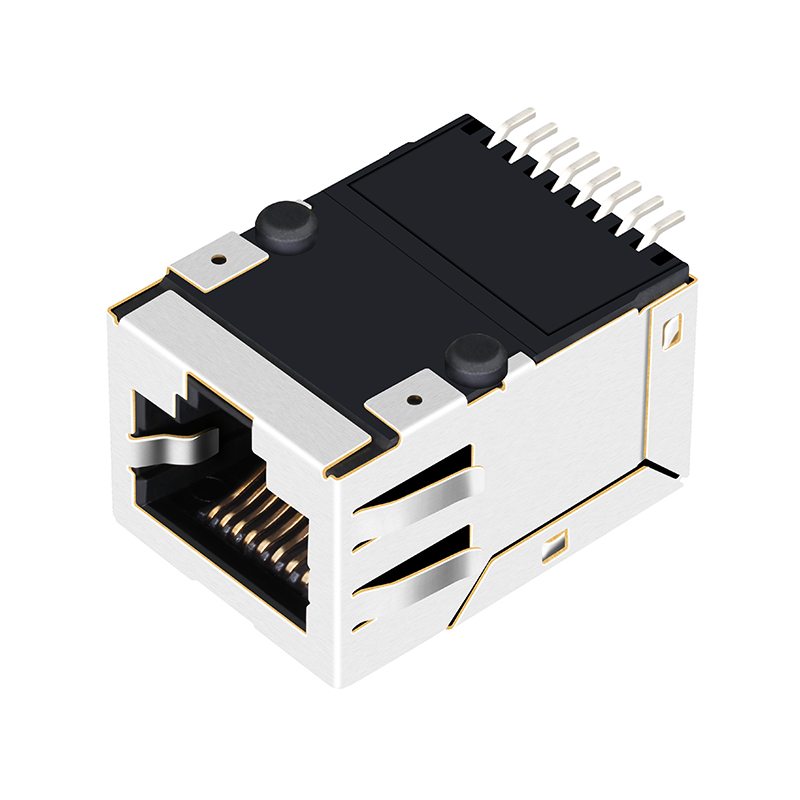

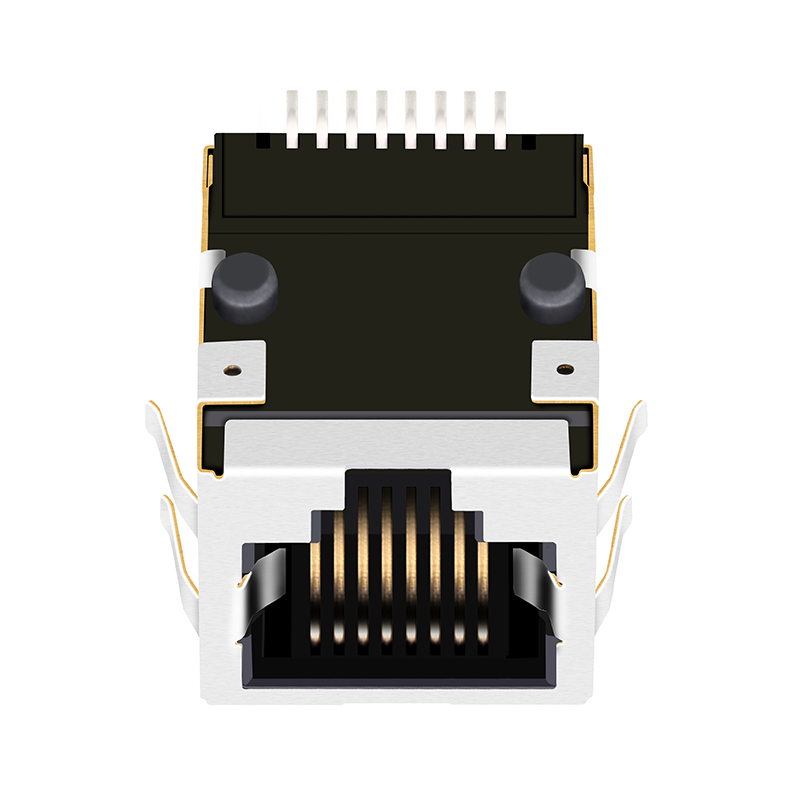

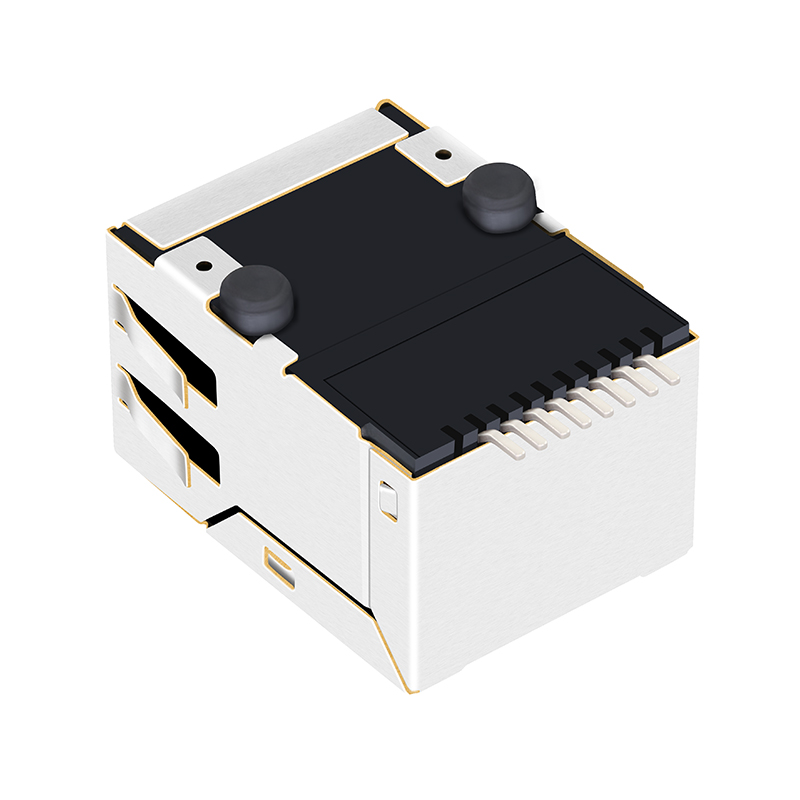

xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
1 / 5
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

Send Inquiry

Product Description

Product Presentation
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
Single Port SMT RJ45 Modular Jack Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number xmh-trjk2064aonl
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

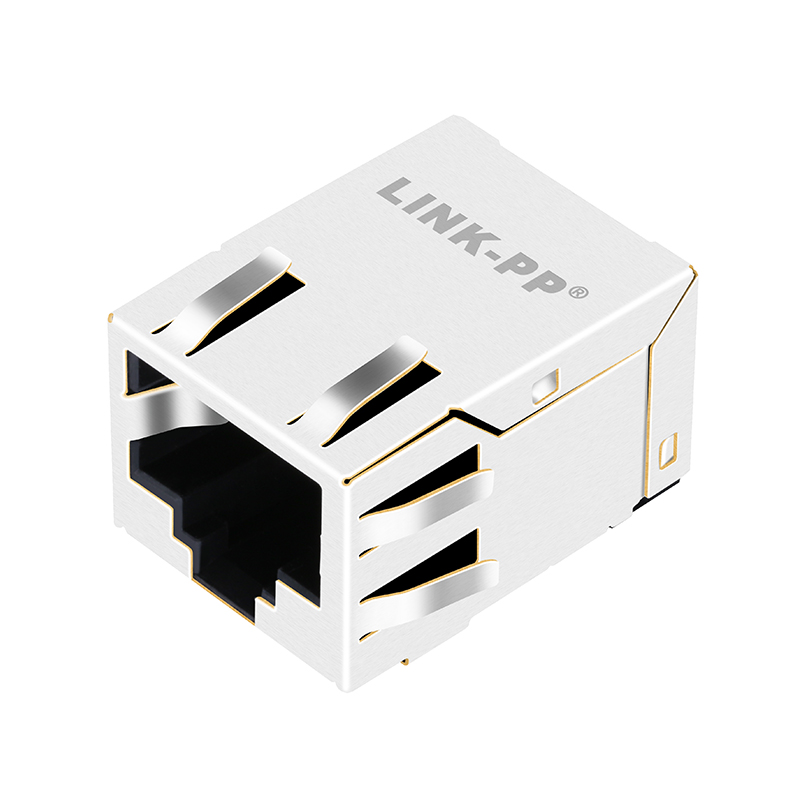

RJ45 Connector Detail View 1 RJ45 Connector Detail View 2
Connector Side View 1 Connector Side View 2 Connector Bottom View 1 Connector Bottom View 2
Explore More Related Products Below
Product Categories Grid
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components, featuring an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we proudly serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Production Facility Office Testing and Manufacturing Department
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you will need to cover the shipping cost.
3. What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders generally take between 15 and 30 days.
4. What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss the details of your request.
6. What is your competitive advantage?
We have 19 years of manufacturing experience and have been a trusted partner for industry leaders like Intel and Jabil for many years.
