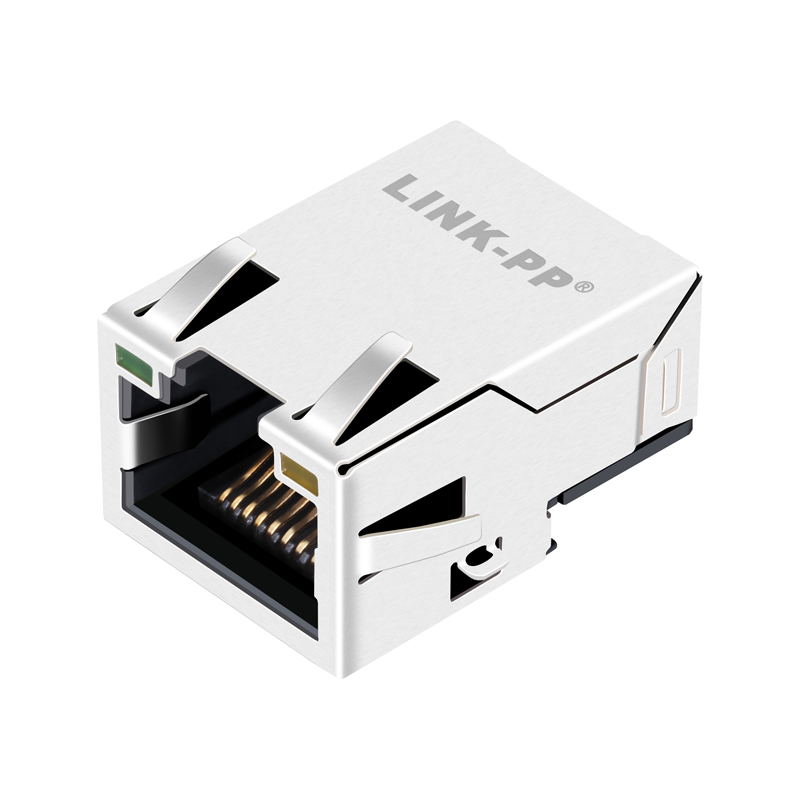

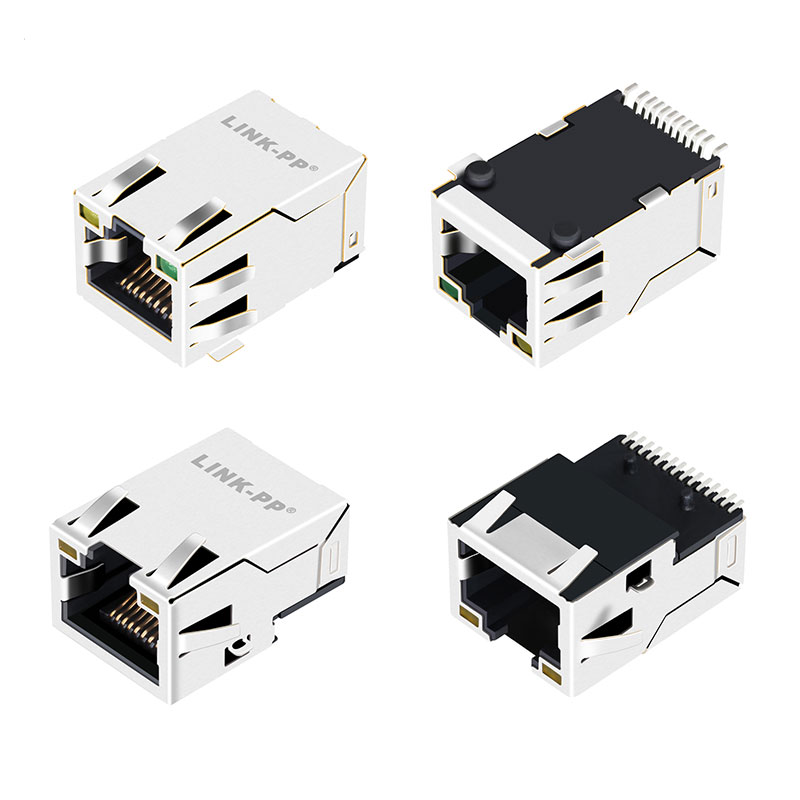

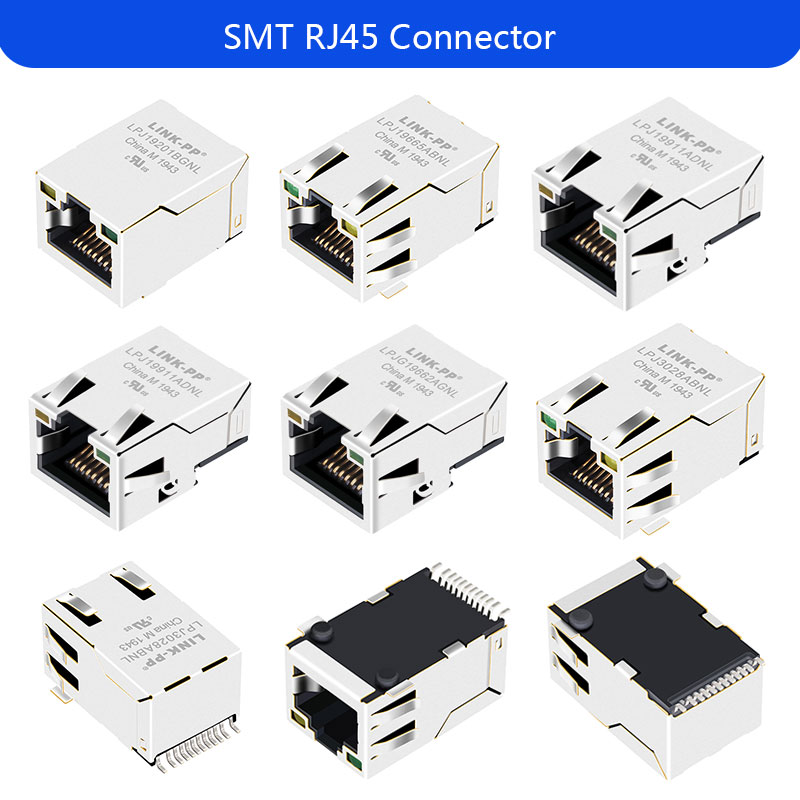

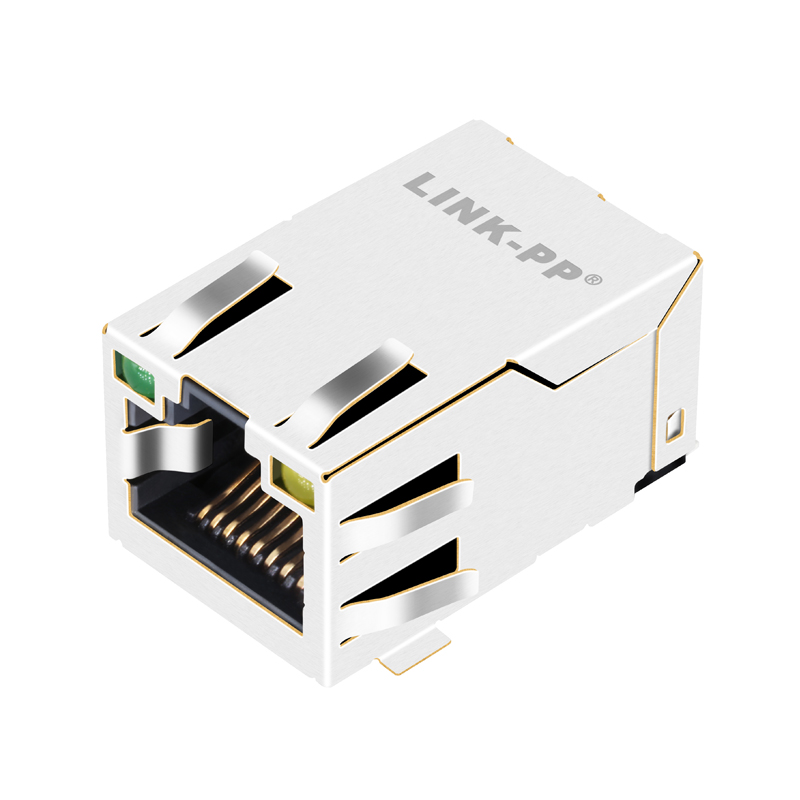

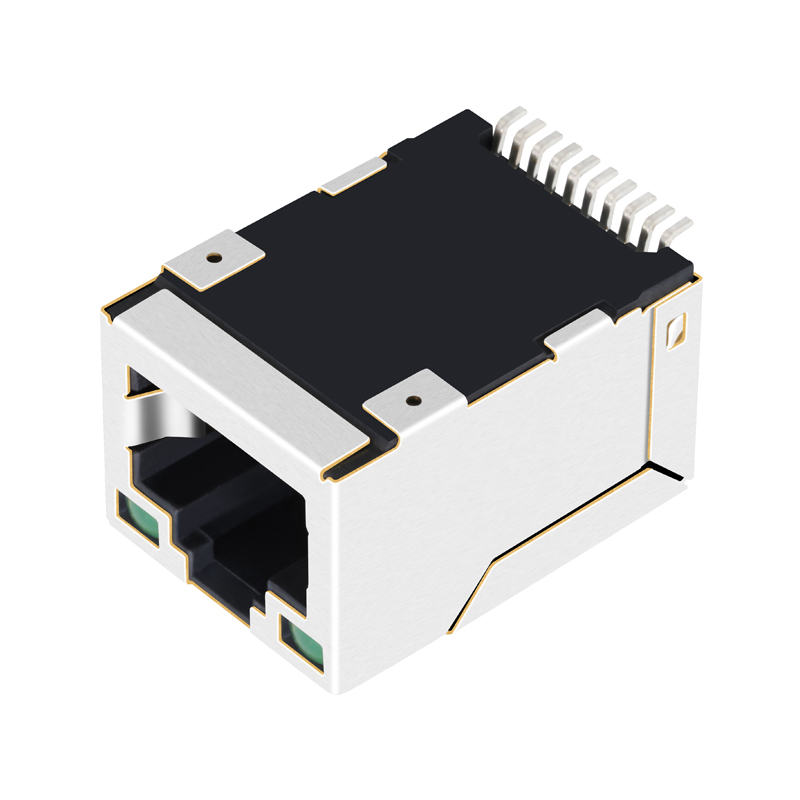

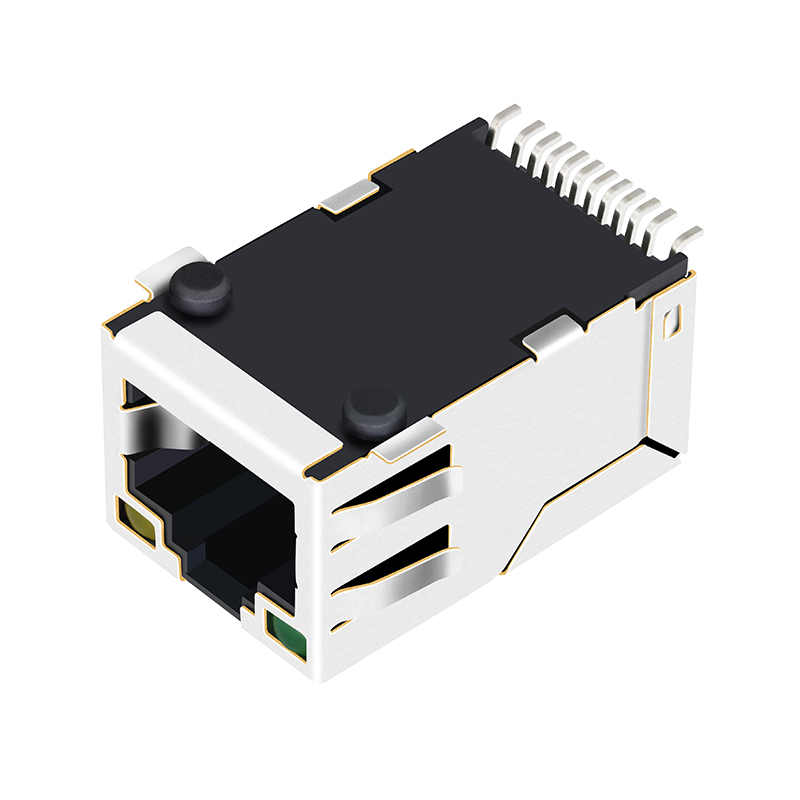

RJ45 Modular Jack Connectors 100/1000 Base-T 10p8c 8p8c POE Non POE SMT SMD Ethernet PCB Connector Modules for Global B2B Buyers

Product Description

✓ RJ45 Connector: Integrated transformer / common mode choke.
✓ Power over Ethernet (PoE): Supports up to 50 Watt with speeds reaching up to 10 Gbit/s.
✓ Mounting Options: Available in SMT, THT, and THT with USB configurations.
✓ Standard Compliance: Fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt.
✓ HPLE Technology: Improved Common Mode Rejection achieved through additional NiZn cores.

Specification

Item	Value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

Standard Packaging Information:

Package Type Tray

Carton Size 34.5 * 34.5 * 27 cm

Gross Weight 6.9 kg / Carton

Quantity 550 pcs / Carton

SPQ 110 pcs

Net Weight 0.013 kg / pcs

Manufacturing Facility

Frequently Asked Questions

Q1 Where are our primary markets located?

We are based in China, starting in 2012, and export globally. Our markets include North America (21.00%), South America (17.00%), Southeast Asia (16.00%), Eastern Europe (16.00%), Africa (9.00%), Oceania (6.00%), Eastern Asia (3.00%), Mid East (3.00%), Western Europe (2.00%), South Asia (1.00%), Northern Europe (1.00%), and Central America (1.00%).

Q2 How do we guarantee product quality?

We ensure quality consistency by conducting a pre-production sample evaluation before proceeding to mass production, followed by a mandatory final inspection prior to every shipment.

Q3 What products can you purchase from us?

Our standard product line features RJ45 Magnetic connectors, LAN Transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

Q4 What advantages do we offer compared to other suppliers?

We offer specialized manufacturing expertise in RJ45 connectors and LAN transformers spanning over 19 years. Our operations are fully certified under SGS, ISO9001:2008, UL, REACH, and CE standards, supported by a strong production capacity of 30,000K units per week.
