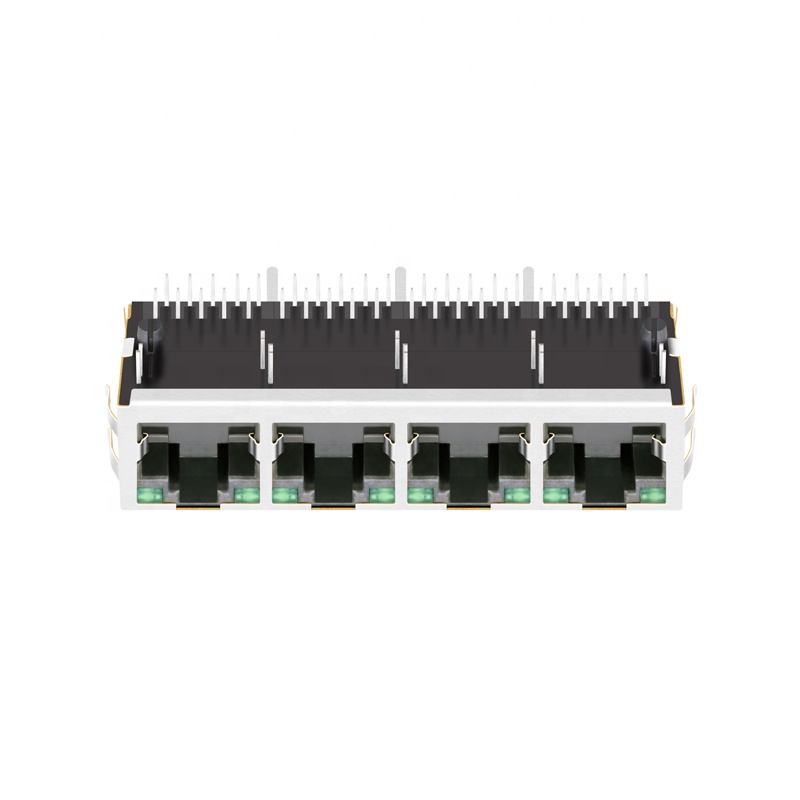

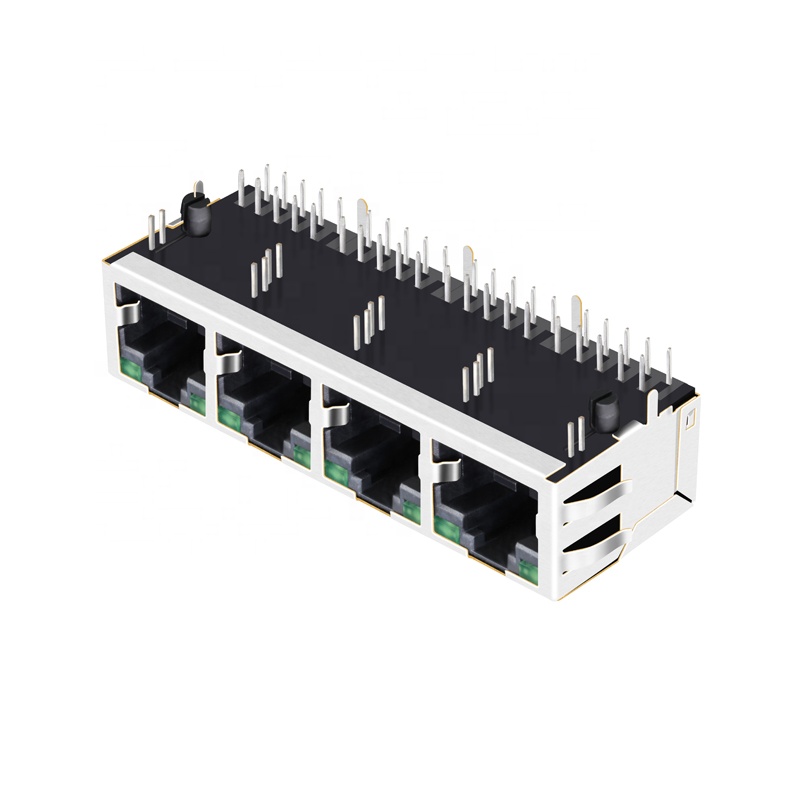

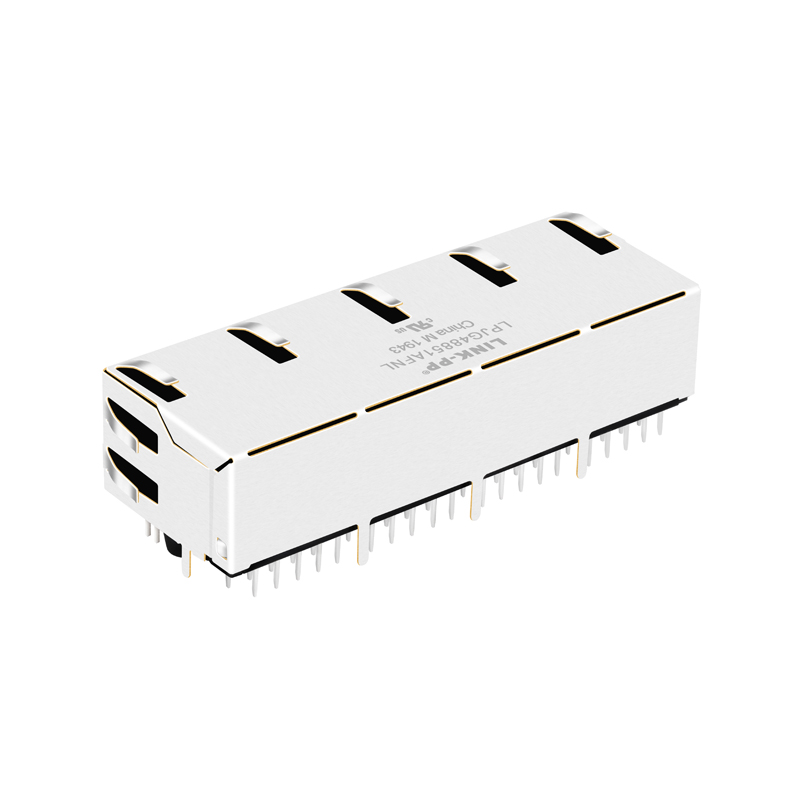

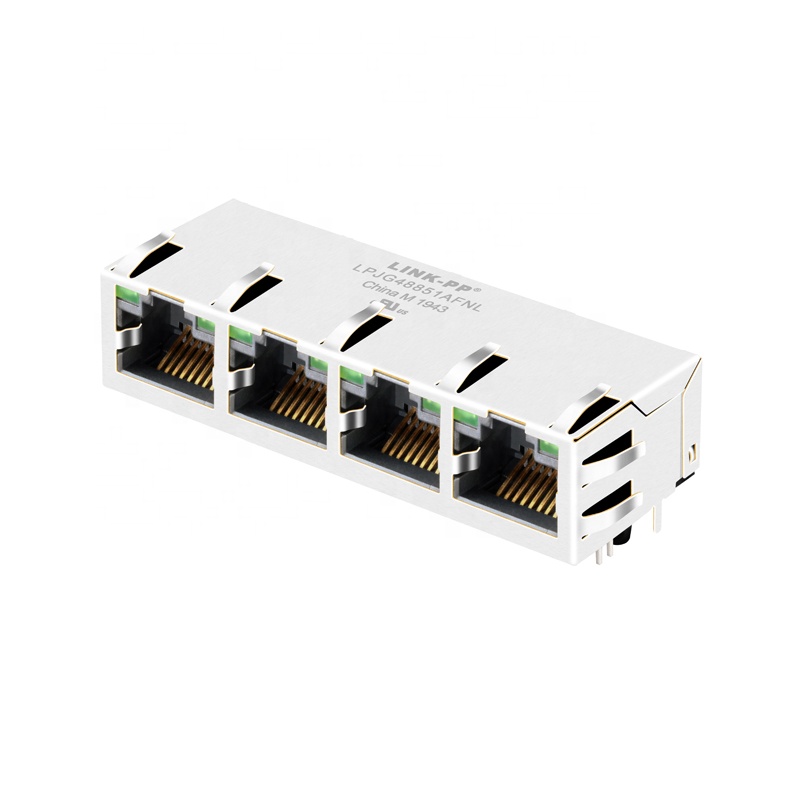

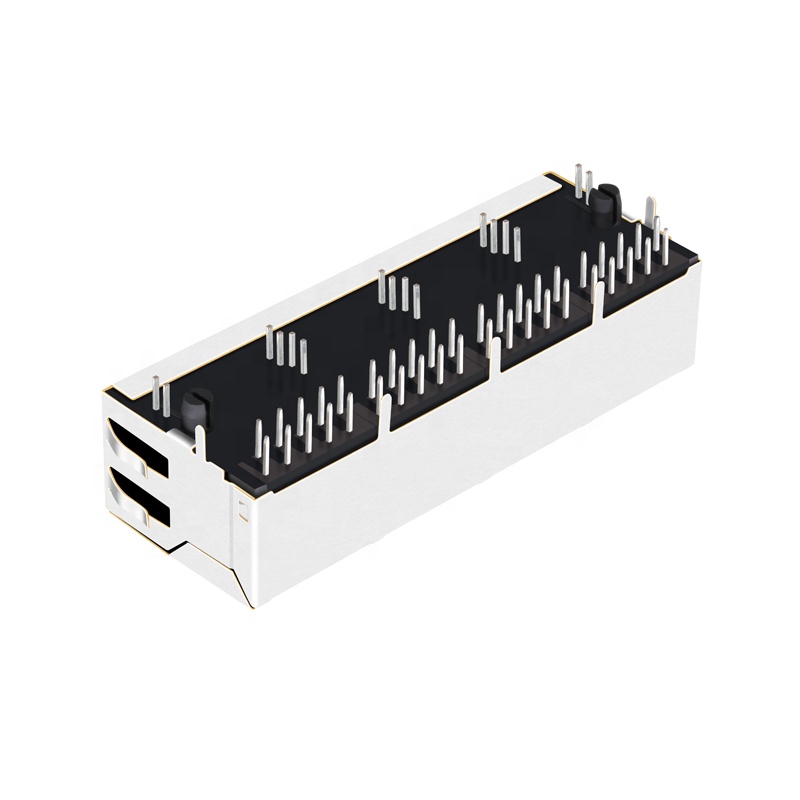

1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1 / 5
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL

1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL

Send Inquiry

Product Description

Ethernet Connectors Showcase
1x4 Port 1000 Base-T Shielded With LEDs Jack RJ 45 Connector LPJG48851AFNL
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x4 Port
Speed 1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Jack Product Details
ℹ️ Discover More Product Options and Configurations Below
Connector Categories Grid
Technical Specifications & Layout
Dimensional Drawing
Schematic Details
Pin Mapping Layout
Quality Standard Control
System Configuration Info
Component Inspection
Performance Test
Packaging Standard
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers.
Manufacturing Area
Warehouse Control
FAQ
Q1: Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee should be covered by the buyer.
Q3: What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
Q4: What after-sales service do you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Q5: Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can initiate a detailed discussion regarding your requirements.
Q6: What is your major advantage?
We possess over 19 years of professional manufacturing experience and have partnered with major global industry leaders for many years.
