Product Description

Product Description

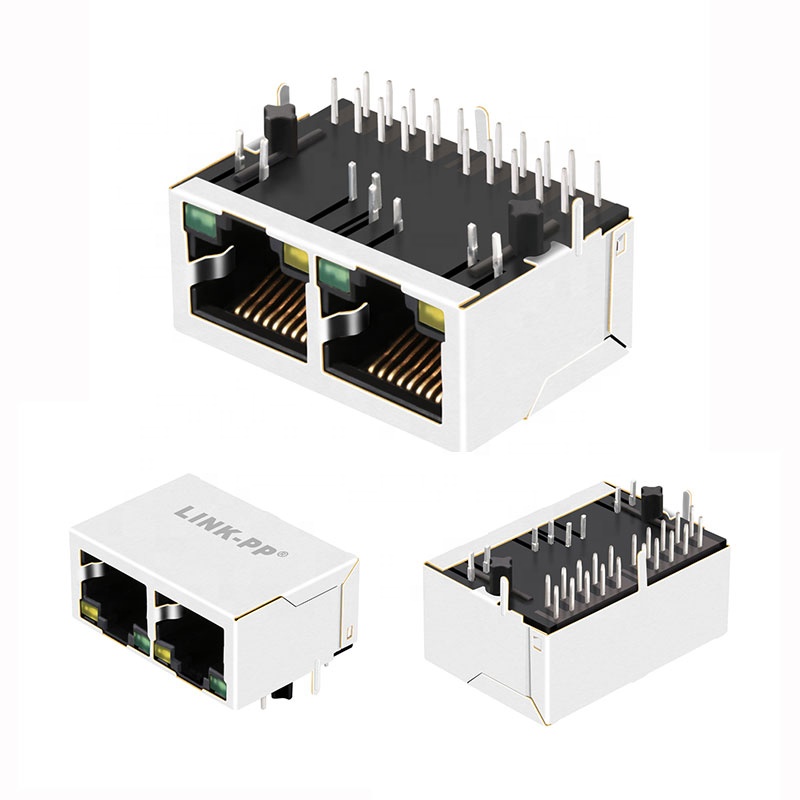

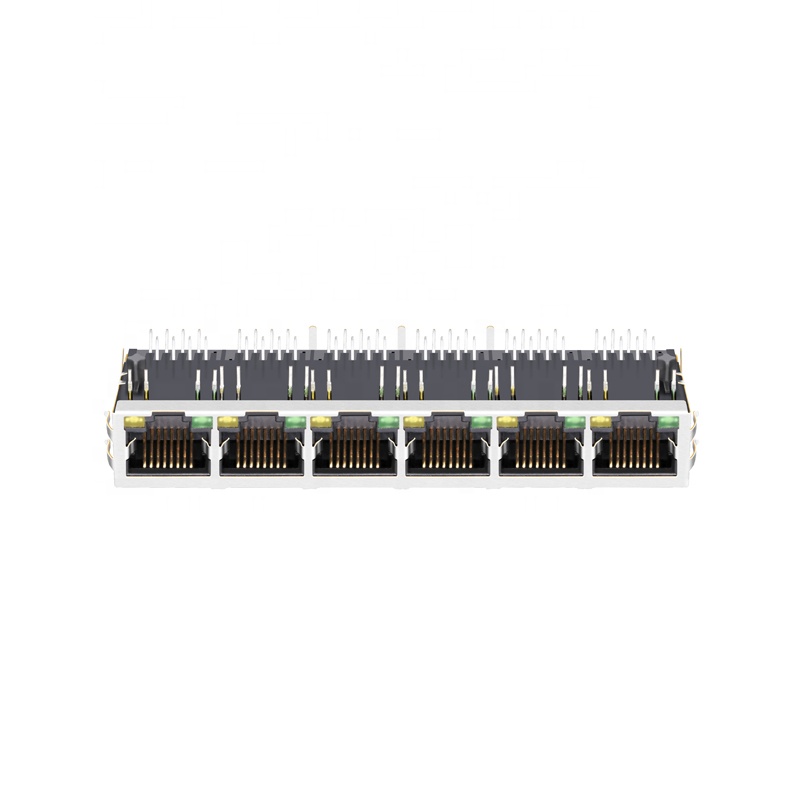

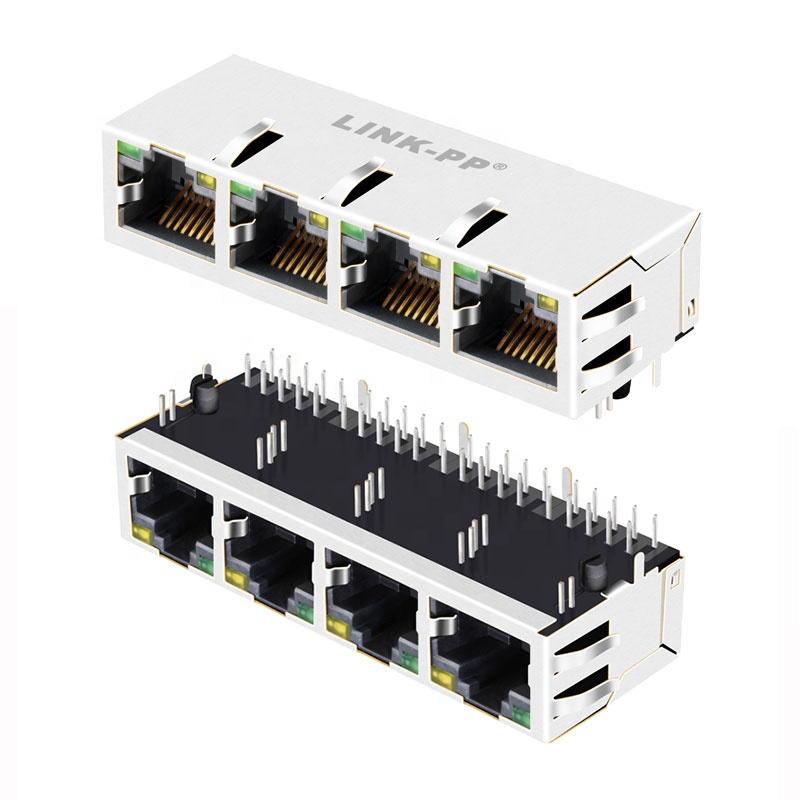

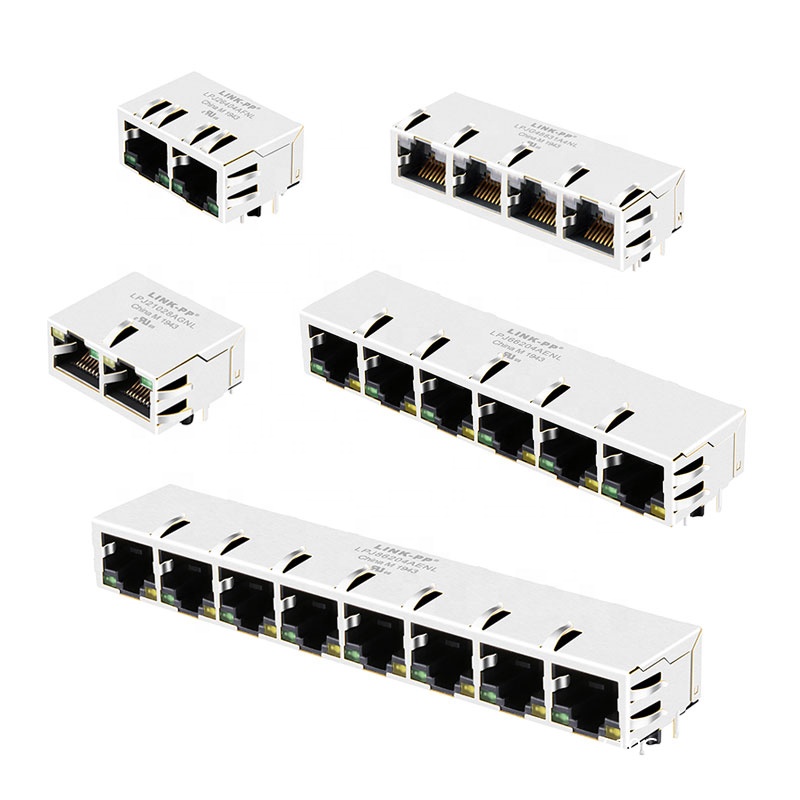

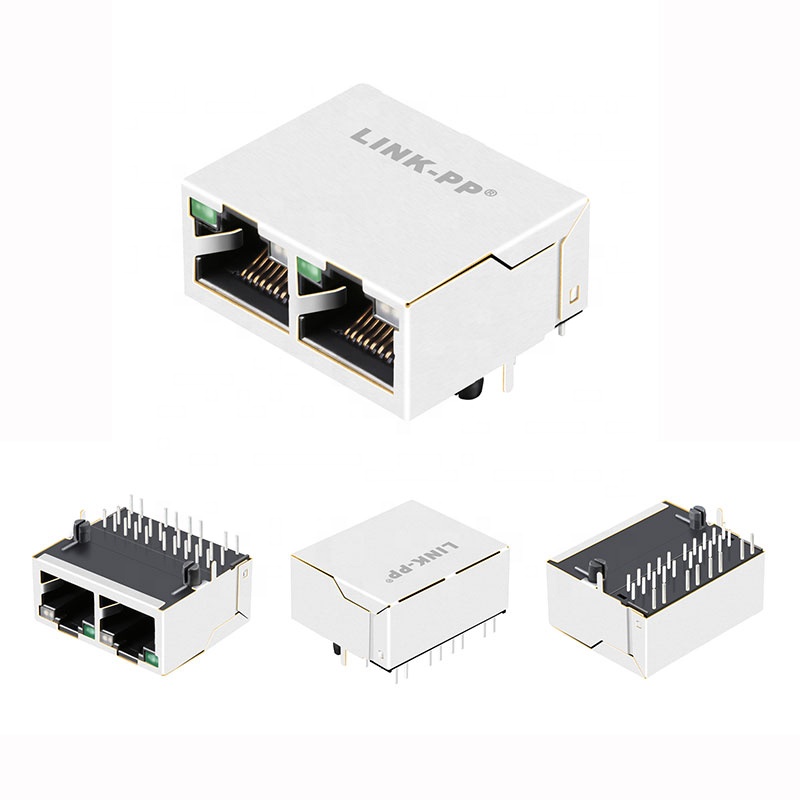

  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet (PoE) support up to 50 Watt
  • Supports transmission speeds up to 10 Gbit/s
  • Available variants: SMT, THT, and THT with USB interface
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt
  • HPLE series: Improved Common Mode Rejection achieved due to additional NiZn cores
RJ45 Connector with integrated transformer
Specification
Parameter Value
Model Number Integrated Connector Modules
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE / Non-PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right Angle)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4 / 6 / 8 / 12
Shielding Shielded, EMI Finger
Number of Ports 1x2, 1x4, 1x6, 1x8 Port
Features Board Guide
Tab Direction Down / Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Packaging Form: Tray Packaging
Carton Size: 37 * 30 * 30 cm
Gross Weight per Carton: 9 kg
Quantity per Carton: 600 pcs
Standard Pack Quantity (SPQ): 30 pcs
Net Weight per Piece: 0.015 kg
Packaging Box Detail
Manufacturing & Facility Showcase
Production Facility Line 1
Production Facility Line 2
Quality Testing Room
Advanced Equipment
Warehouse Facilities
Automated Manufacturing
Finished Product Inspection
Frequently Asked Questions
What types of products are available in this line?
You can source RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.
How is product quality guaranteed?
Quality control processes ensure that a pre-production sample is always created and verified before mass production begins, followed by a final inspection of all goods before shipment.
What industry certifications do these products carry?
Our manufacturing processes and components are certified by SGS, ISO9001, UL, REACH, and CE to meet international quality and safety benchmarks.
What standard trade delivery terms are supported?
We support a wide variety of delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.
Which currencies and payment methods are accepted?
We accept payments in USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Accepted payment types include T/T, L/C, D/P, D/A, MoneyGram, Credit Cards, PayPal, Western Union, Cash, and Escrow.
