JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
1 / 5
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Send Inquiry

Product Description

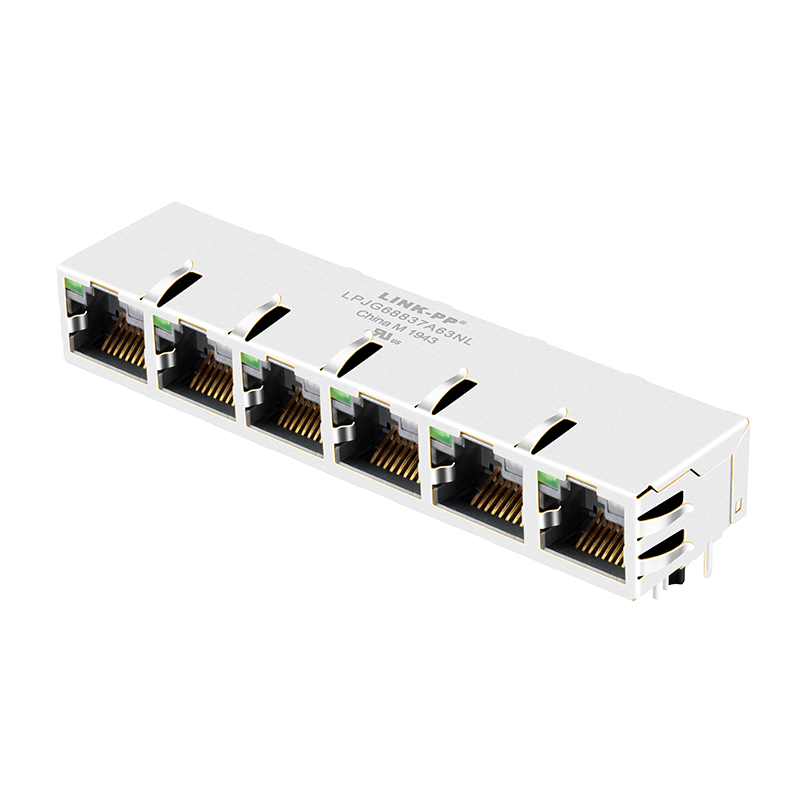

Product View 1

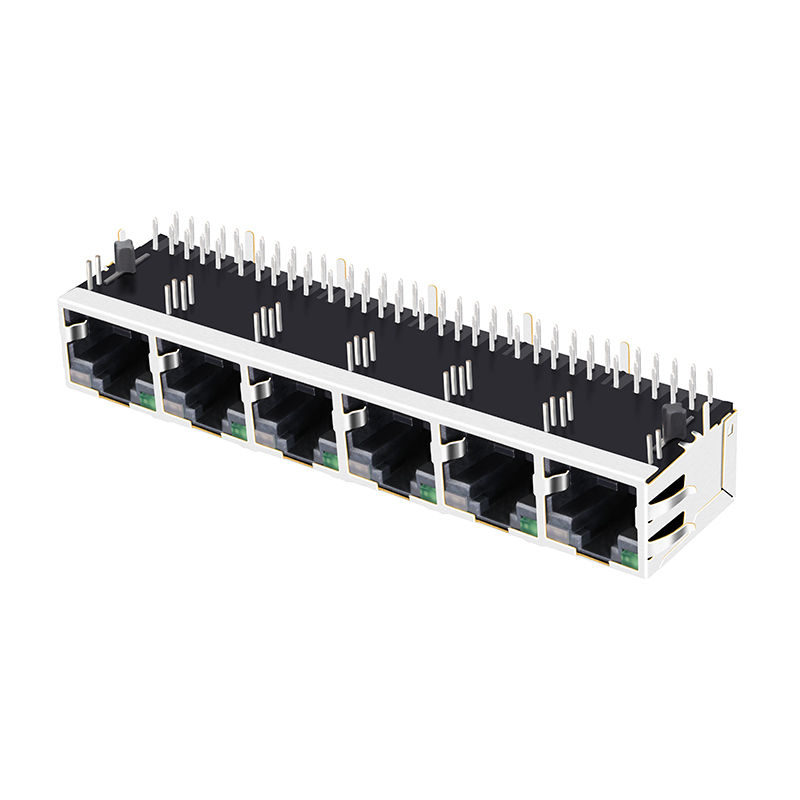

Product View 2
Specification
Item Value
LINK-PP Part Number LPJG68837A63NL
Pulse Part Number JG0-0070NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Green&Orange Led
Number of Cores per Jack 8
Shielding Shielded, Emi Finger
Number of Ports 1x6 Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Details View 1
Details View 2
Details View 3
Details View 4
Structural Diagram 1
Structural Diagram 2
Overview & Capabilities
