Product Description

Shielded Magnetic Dual Ports RJ-45 Connector

Shielded Magnetic Dual Ports RJ-45 Connector

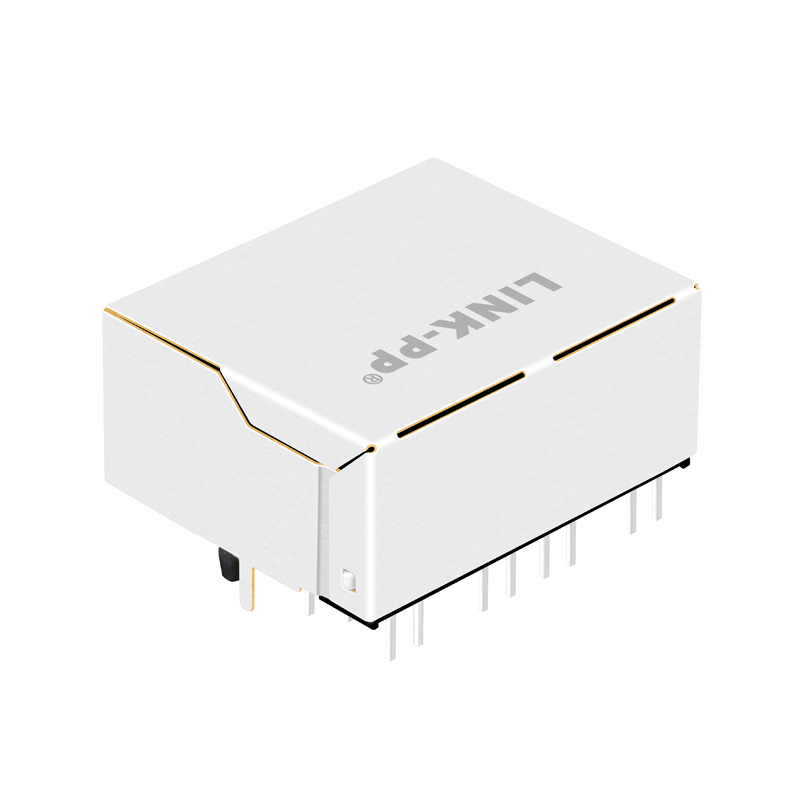

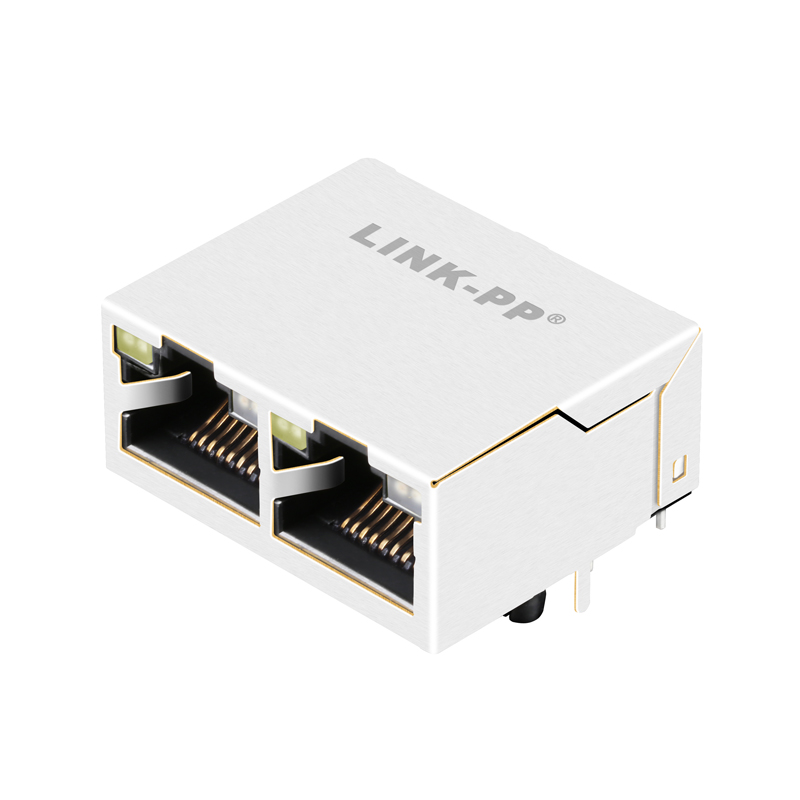

RJ-45 Connector View 1 RJ-45 Connector View 2
Product Divider

Product Specifications

Part Number 1840538-3 6610128-1 1840538-4 1840538-2
Application-LAN ETHERNET (Non-PoE)
AutoMDIX YES
Bst Circuit YES
Configuration RX T, C
Configuration TX T, C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 6
Diodes NO DIODES
LED Option GREEN/GREEN
Latch UP
Number of Ports 1x2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Shielding Shielded
Speed 10/100 Base-T
Temperature 0 ~ 70°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
Technical Specifications Drawing
Preferred Supplier Of TI, Samsung, Cisco, Siemens, and more.
Welcome To Visit The TI Website.
You Will Look At Our Logo "LINK-PP" On BeagleBone Board.
Board Integration Layout

Why Choose Us

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy

100% Quality Guarantee

  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Partner of TE (Tyco) for 9 Years
  • Trusted by Texas Instruments, Samsung, Cisco, Siemens, Intel, etc.
  • Quality Guarantee: 6 Years

Competitive Price & Service

  • More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
  • Quick Delivery: 2-3 Weeks After Orders
  • Free Samples Available
  • Custom Designs & New Requirements Accommodation
  • 90% Off Shipping Cost via DHL, UPS, FEDEX, or TNT
Quality Checked Product Connector Side View
Specification Ribbon
Connector Dimensions Detail Internal Schematic Preview

Frequently Asked Questions

What is the primary speed and application scope for these RJ45 connectors?
These dual-port shielded connectors support standard 10/100 Base-T speeds and are primarily designed for Ethernet (Non-PoE) LAN applications.
What part numbers are compatible with this model?
Compatible and corresponding part numbers include 1840538-3, 6610128-1, 1840538-4, and 1840538-2.
Does this product meet RoHS regulations?
Yes, the connector conforms to RoHS requirements with RoHS-5 compliance, including the lead-in-solder exemption.
What certifications does the production process adhere to?
Manufacturing is fully certified under ISO 9001:2008, UL certification, Reach, and operates under strict environmental policies.
Are these RJ45 connectors tested individually?
Yes, all connectors undergo 100% full testing (not just batch testing) to ensure absolute electrical performance and high durability.
What is the operating temperature range?
The connector operates safely and reliably within a standard operating temperature range of 0°C to 70°C.
