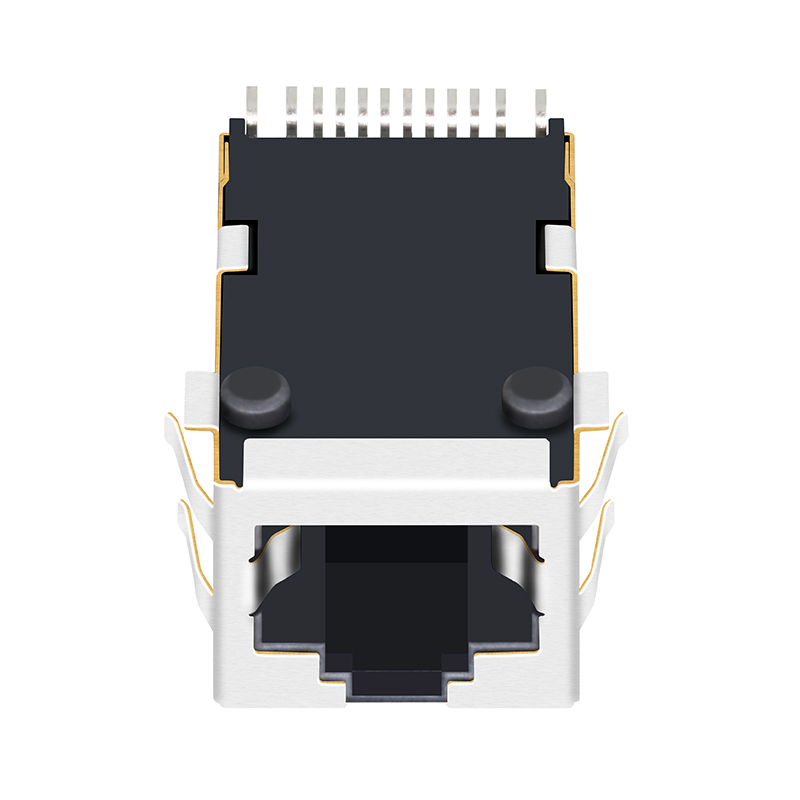

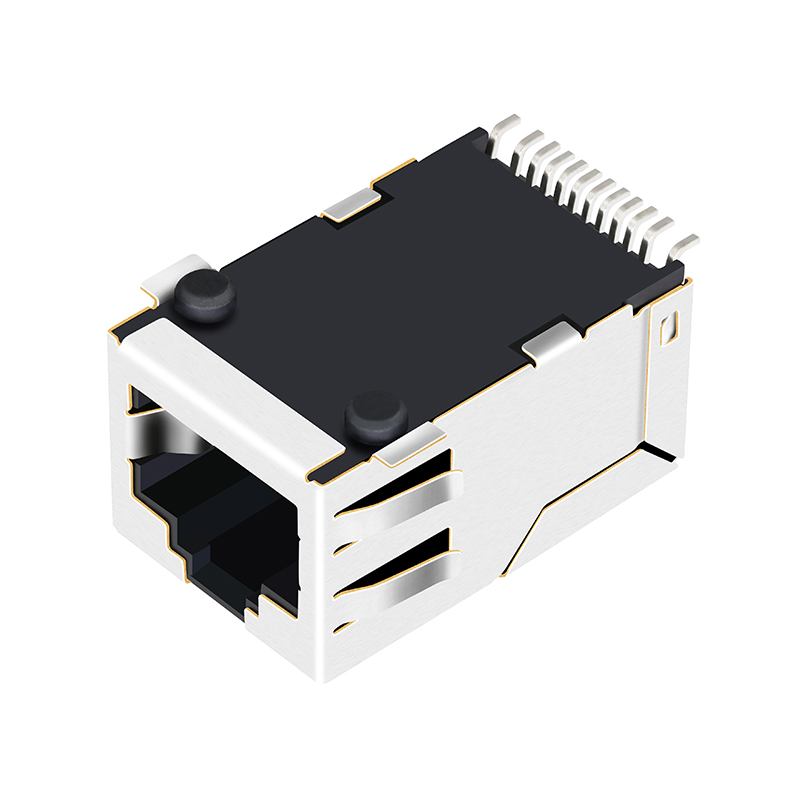

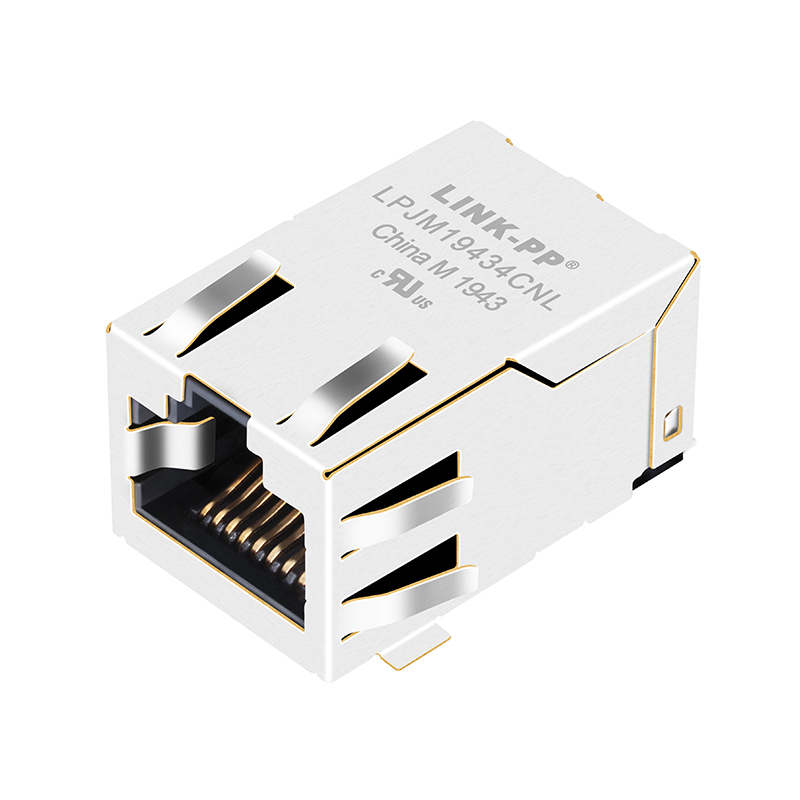

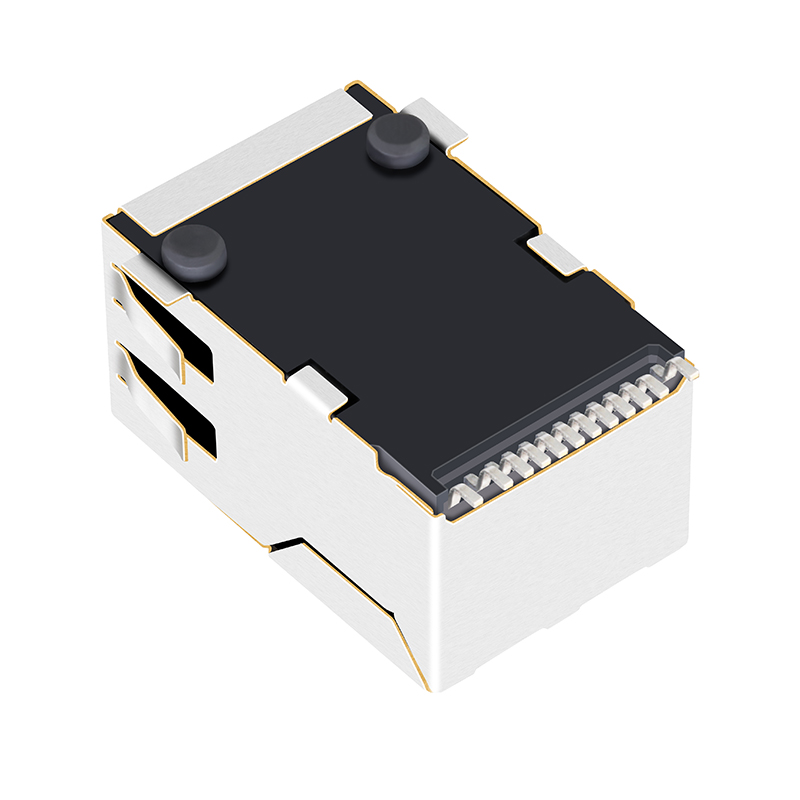

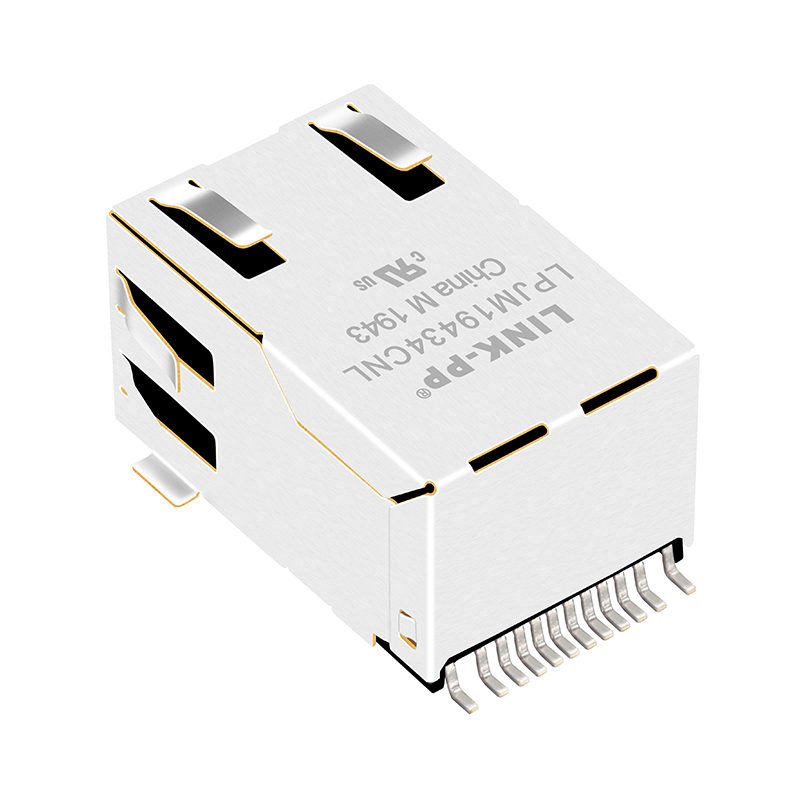

| Item | RJ45 Female Connector |
| Part Number | LPJM19434CNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(Non-PoE) |
| Number of Ports | 1x1 Port, SMT |
| Speed | 2.5g Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Without |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | -40°C TO 85°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test the quality, but you should cover the shipping fee.
Items in stock are ready to ship. For mass production, the delivery time is generally 15 to 30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send your requirements to us so we can proceed with a detailed discussion.
We have over 19 years of production experience and have been a trusted partner of Intel and Jabil for many years.
