| Part Number | 5-6610197-1 |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 4 |
| Diodes | NO DIDES41 |
| LED Option | GREEN/YELLOW |
| Latch | UP |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
• Preferred Supplier Of TI Samsung Cisco Siemens …
• Welcome To Visit The TI Website
• You Will Look At Our Logo On BeagleBone Board
This connector is primarily designed for 10/100 BASE-T Ethernet interface applications. It is widely used in networking devices, hubs, routers, and embedded systems like the BeagleBone board.

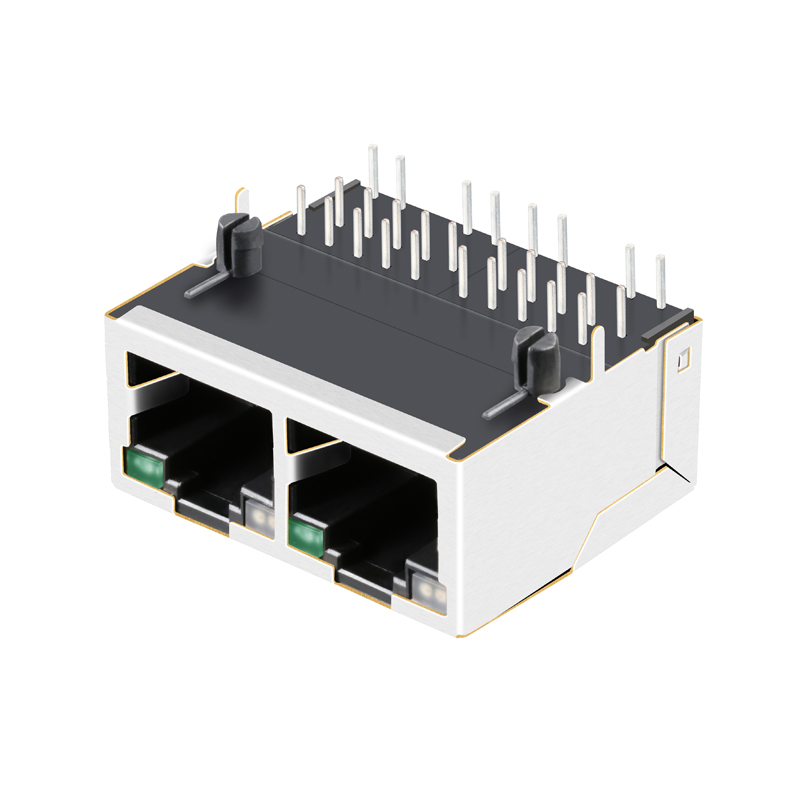

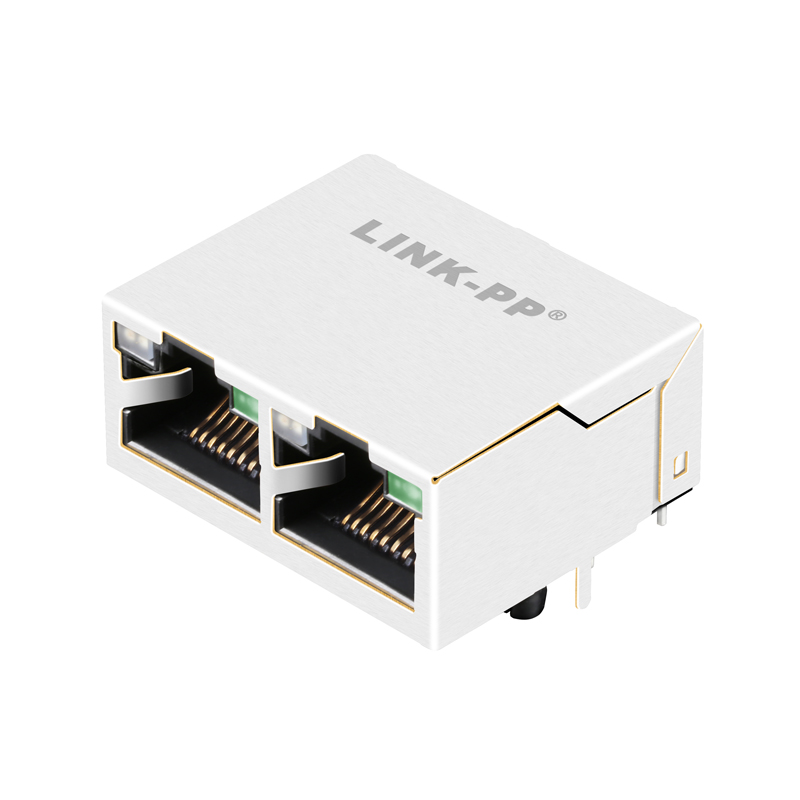

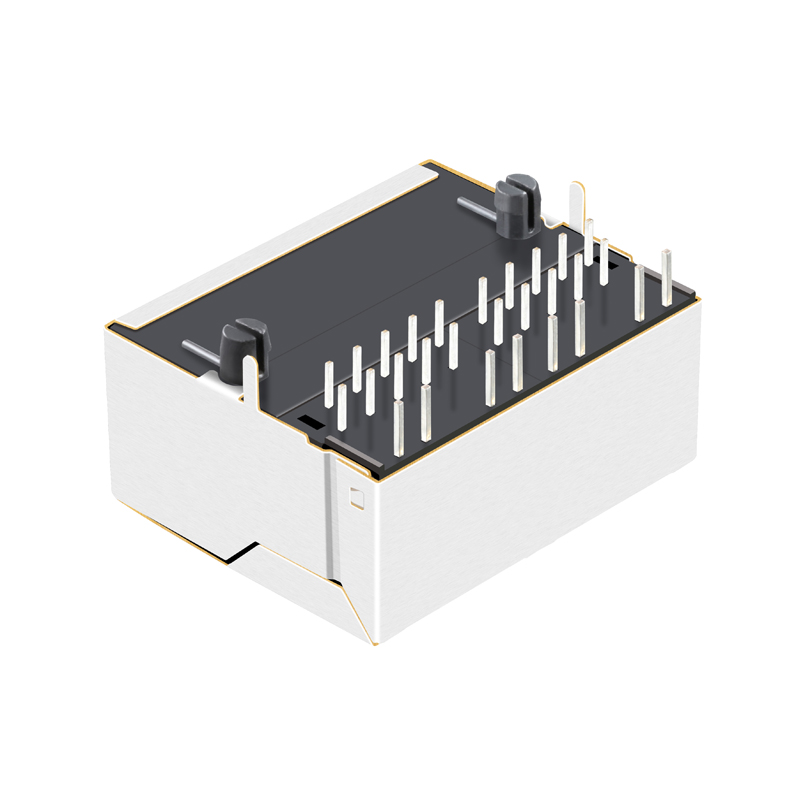

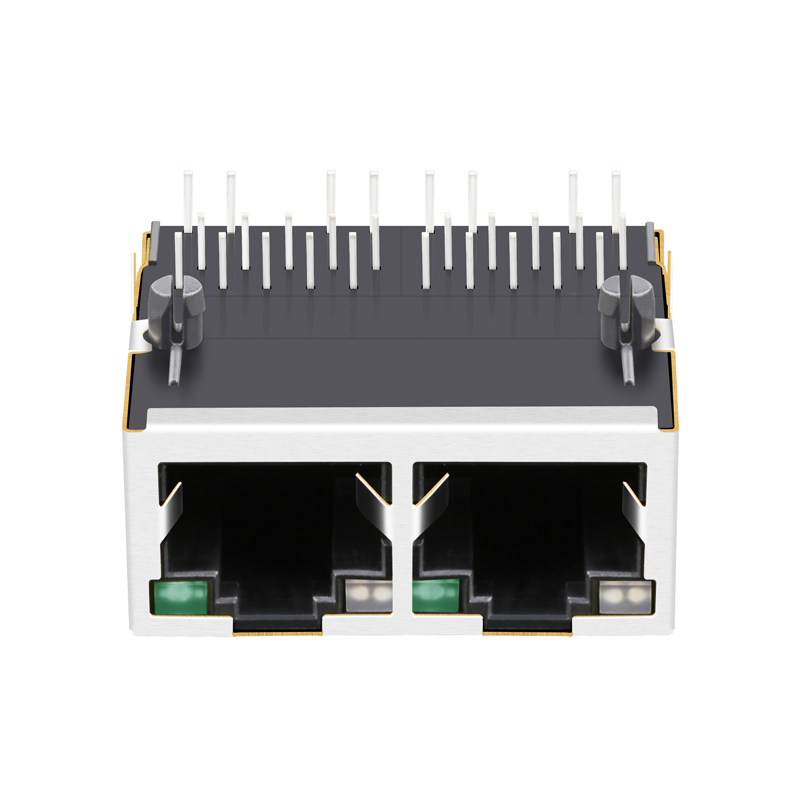

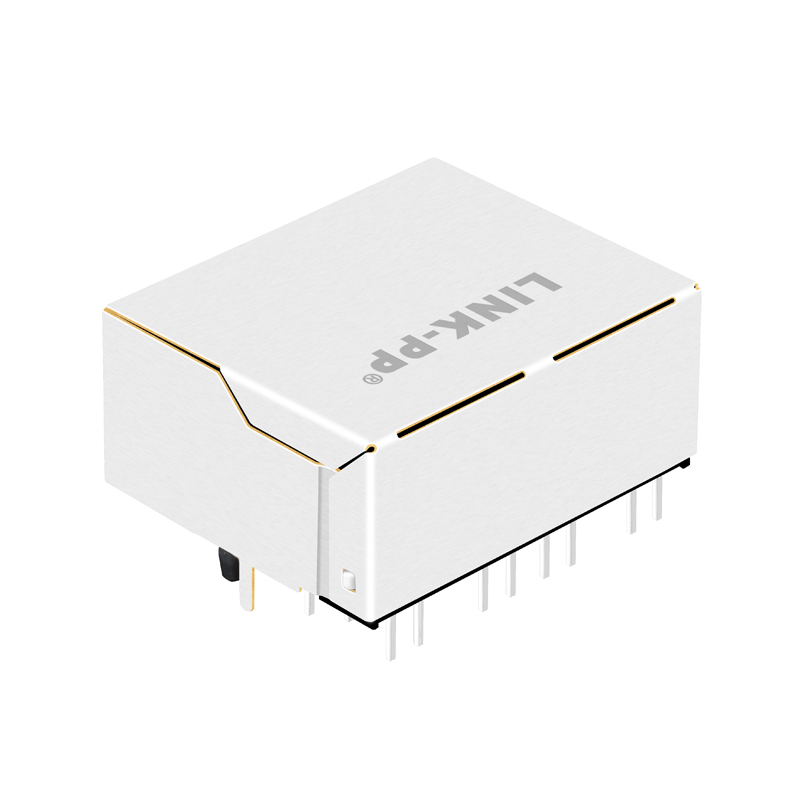

It features a 1X2 multi-port configuration (Harmonica Jack) with a Tab-Up latch orientation and side-entry PCB mounting angle.
Yes, it fully supports AutoMDIX, allowing the Ethernet interface to automatically detect and configure the required cable connection type.
The connector is designed to operate reliably within a standard commercial temperature range of 0°C to 70°C, and an industrial range of -40°C to 85°C.
Yes, they are compliant with RoHS standards (RoHS-5 with lead in solder exemption) and meet REACH environmental requirements.
